Headlight Widening Adjustment
>>

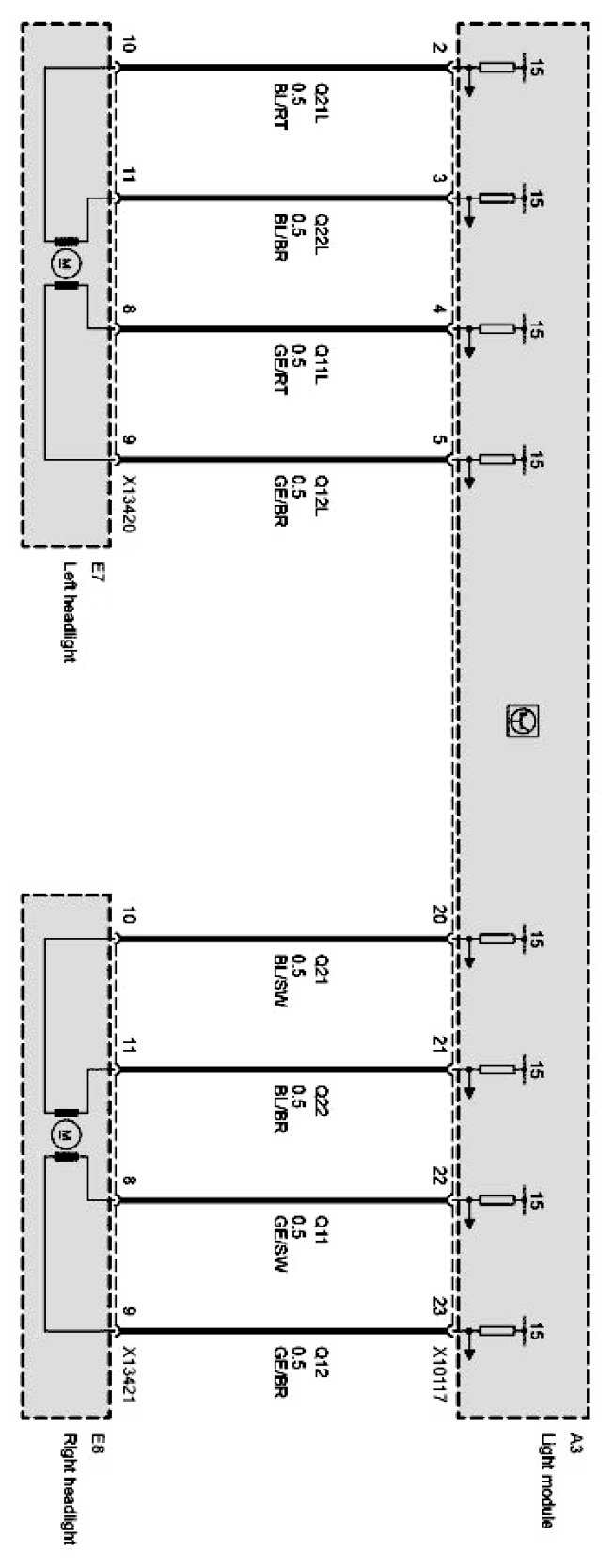

Auto. Headlight Widening (LWR) (Actuator Motors) (As of 09/03)
Auto. Headlight Widening (LWR) (Actuator Motors) (As of 09/03)
E53 Auto. headlight widening (LWR) (actuator motors) Part 1 Of 1:
