Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Directional Headlight/ Headlight Beam Height Control (AHL Adaptive Directional Headlights) >> Supply, LSZ (As of 09/03)

Supply, LSZ (As of 09/03)

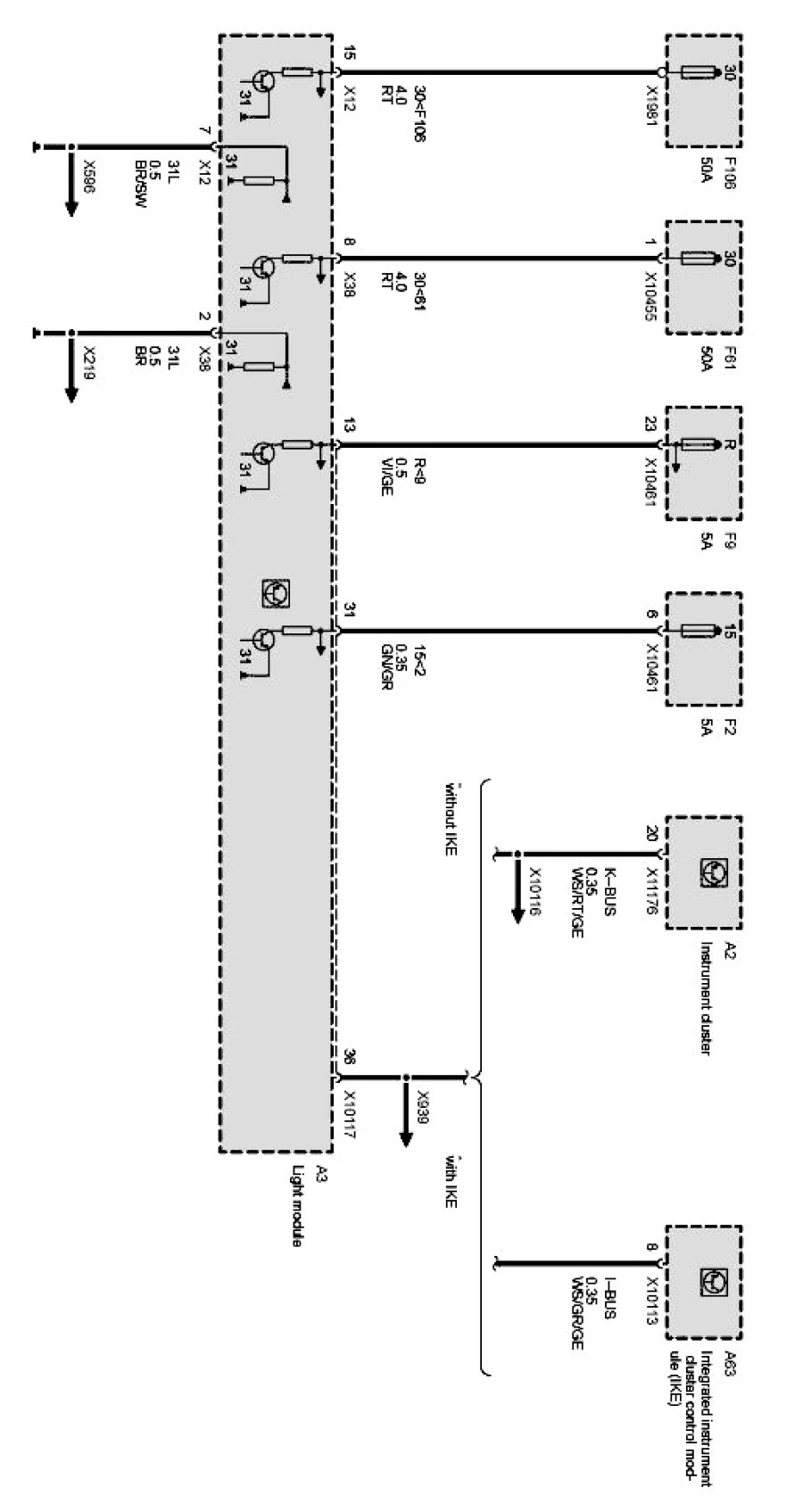

E53 Power supply Part 1 Of 1:
