Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> HVAC >> Heating and Air Conditioning Functions (IHKA Automatic Heating/Air Conditioning System or IHKR Regulation) >> Temperature Control >> Footwell Sensor (IHKR Integrated Heating/Air-Conditioning Regulation)

Footwell Sensor (IHKR Integrated Heating/Air-Conditioning Regulation)

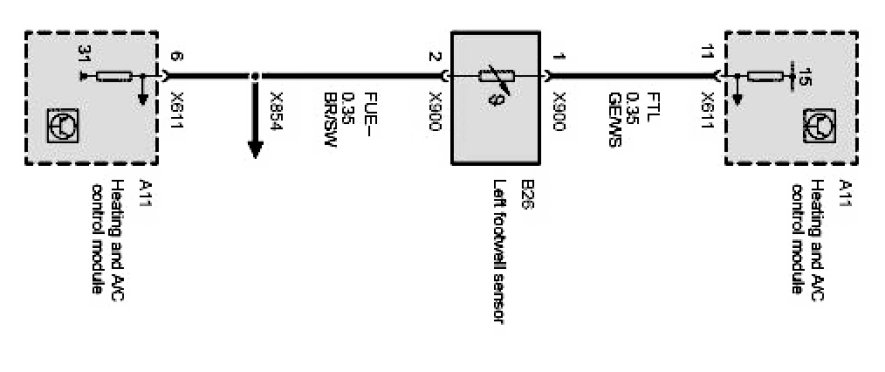

E53 Footwell sensor Part 1 Of 1:
