Independent Park/Auxiliary Heating (As of 09/03)

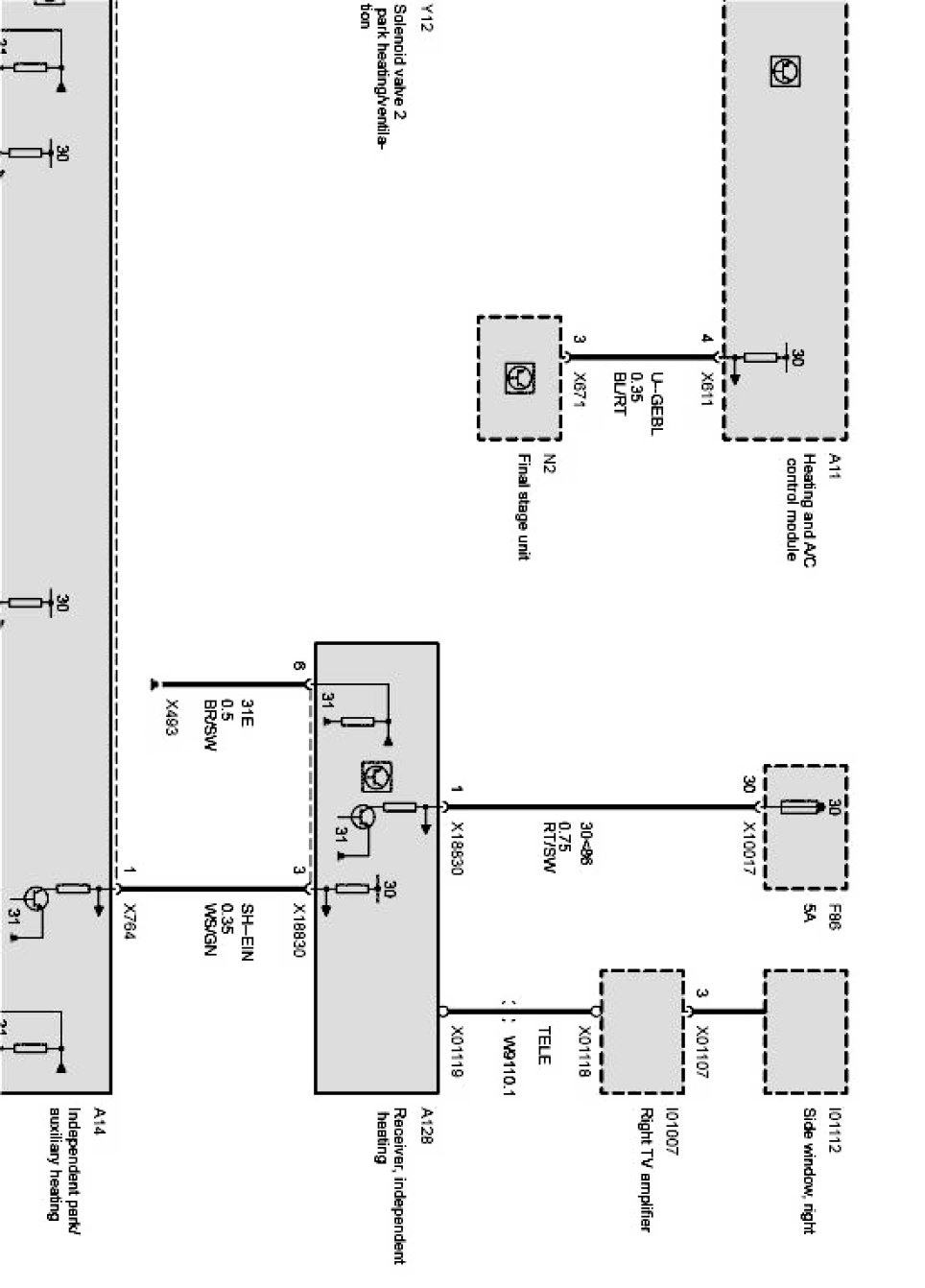

E53 Independent park/auxiliary heating Part 1 Of 4:

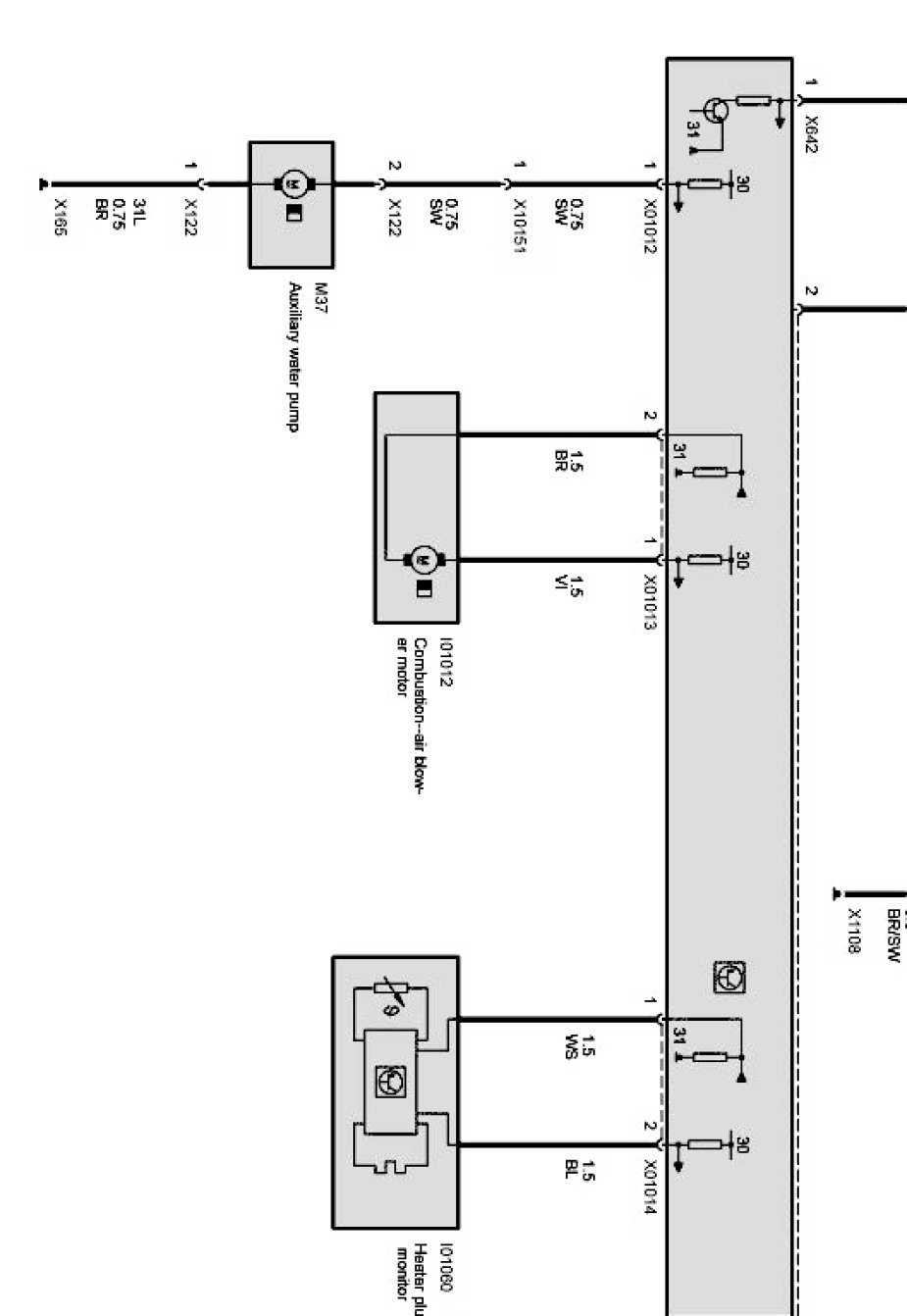

E53 Independent park/auxiliary heating Part 2 Of 4:

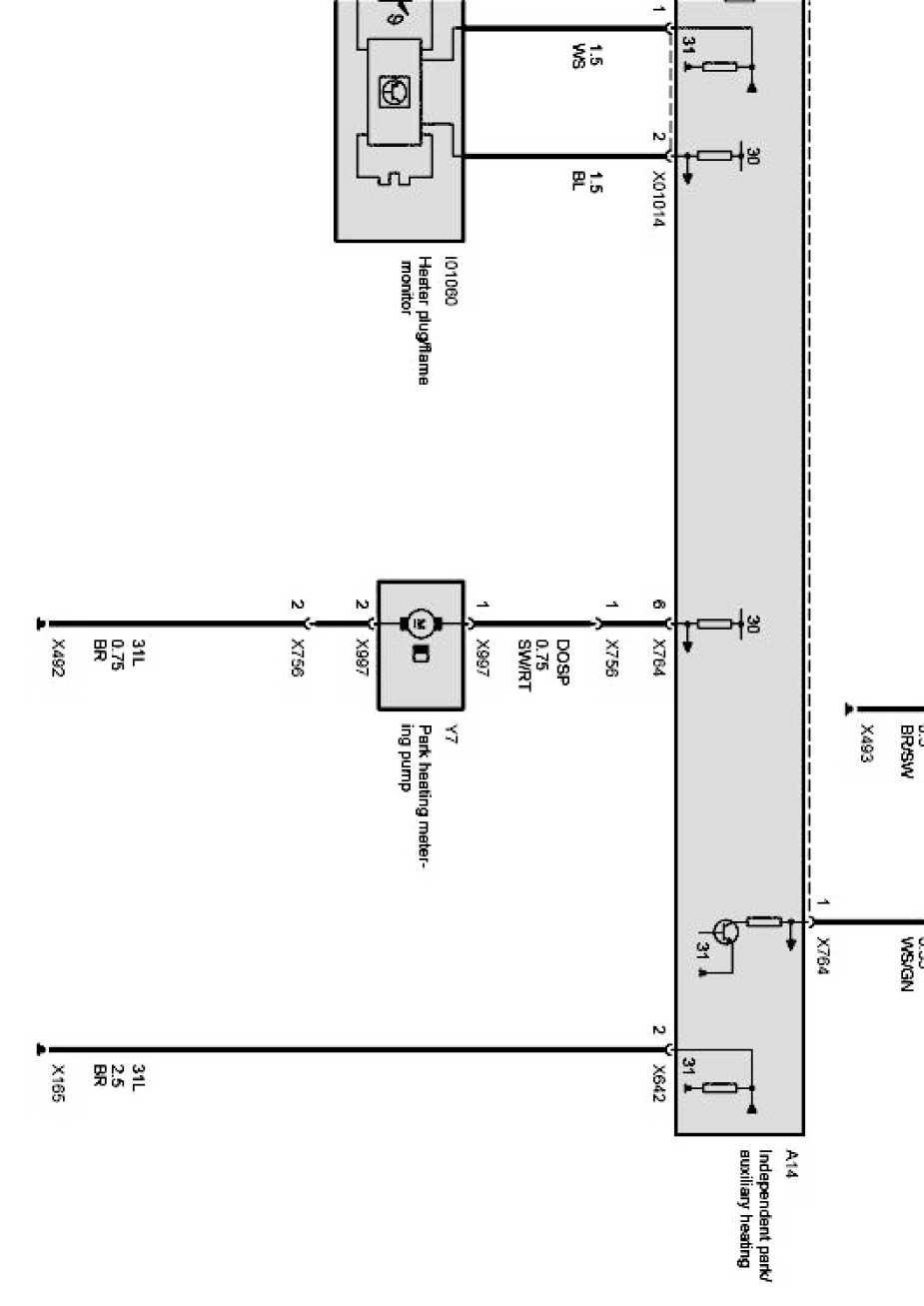

E53 Independent park/auxiliary heating Part 3 Of 4:

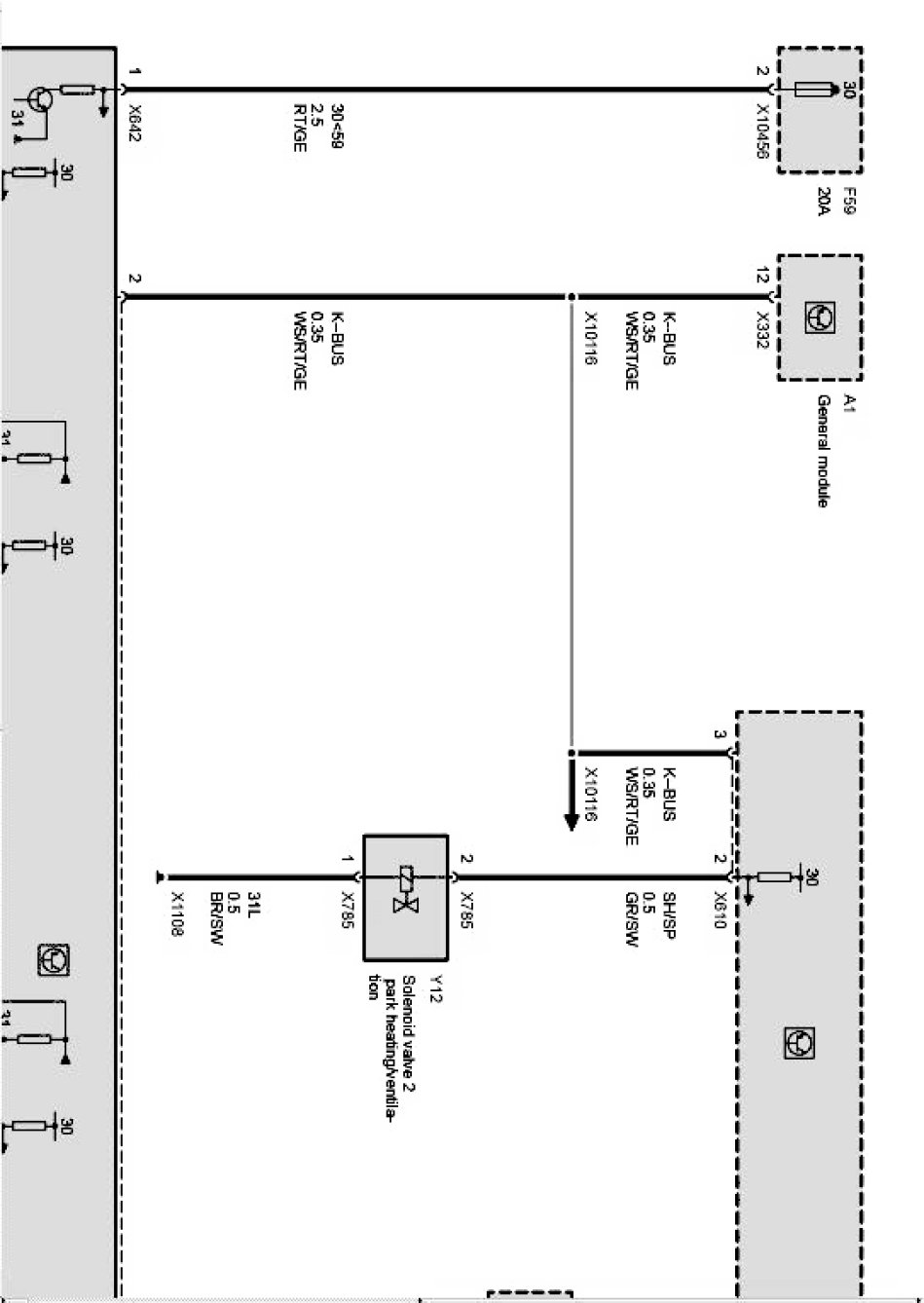

E53 Independent park/auxiliary heating Part 4 Of 4:
