Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Displays and Information >> Multi-Information Display (MID)

Multi-Information Display (MID)

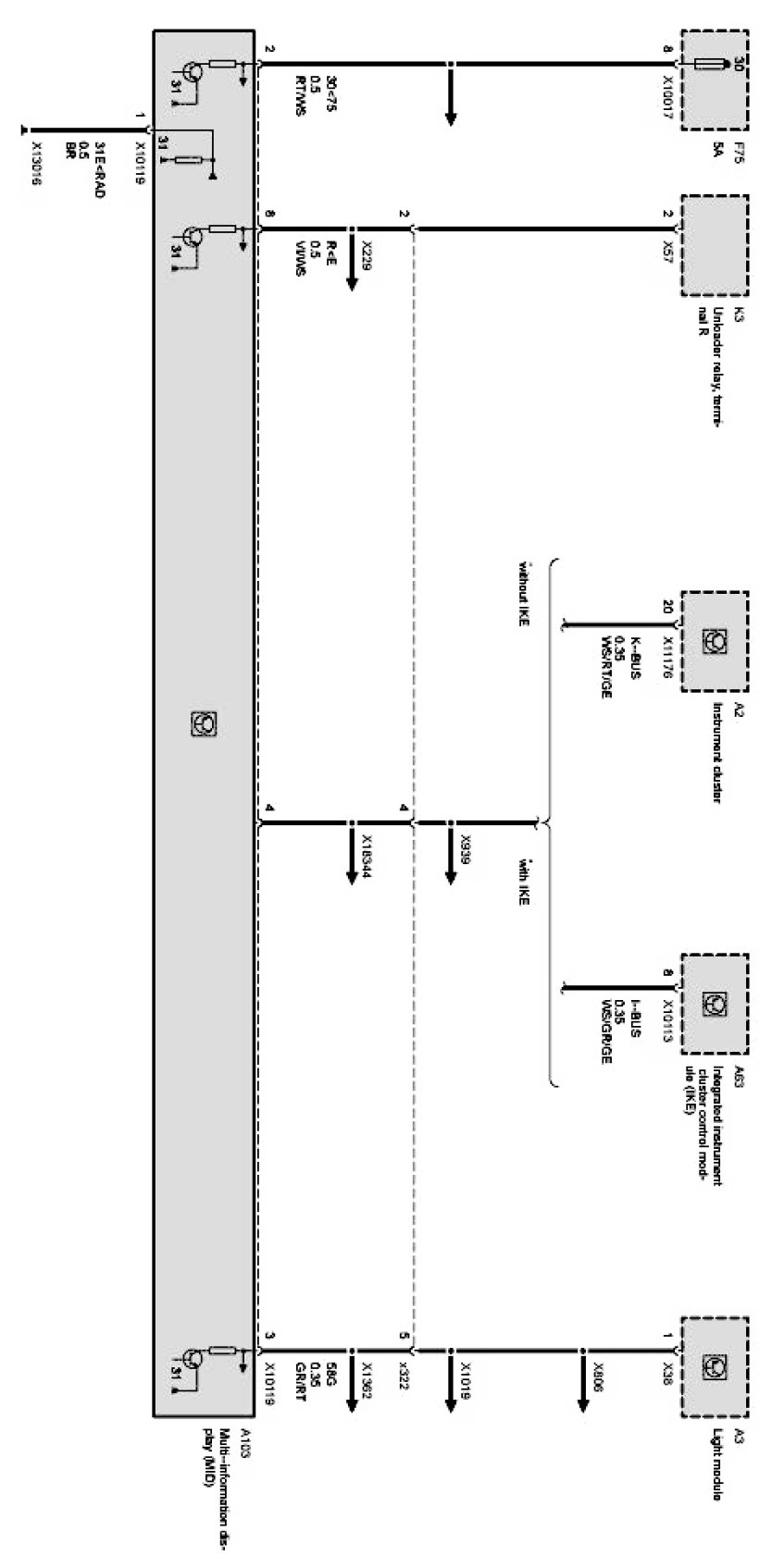

E53 Multi-information display (MID) Part 1 Of 1:
