General Brake Warning Lamp
General Brake Warning Lamp

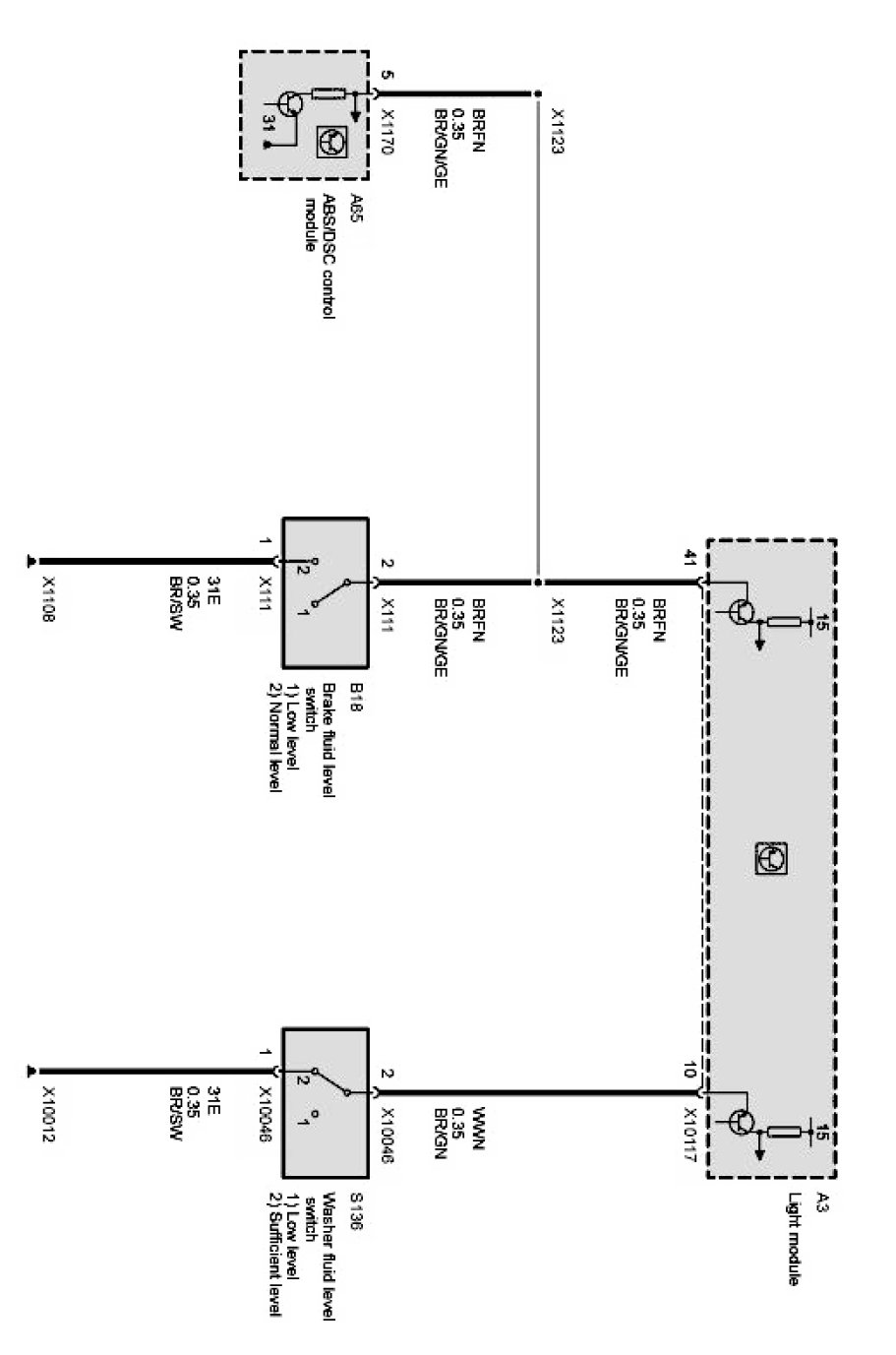

E53 Washer fluid level, brake fluid level Part 1 Of 1:
