Splice, I-Bus X939 (IKE Instrument Cluster Electronics As of 03/02)
Splice, I-Bus X939 (IKE Instrument Cluster Electronics As of 03/02)

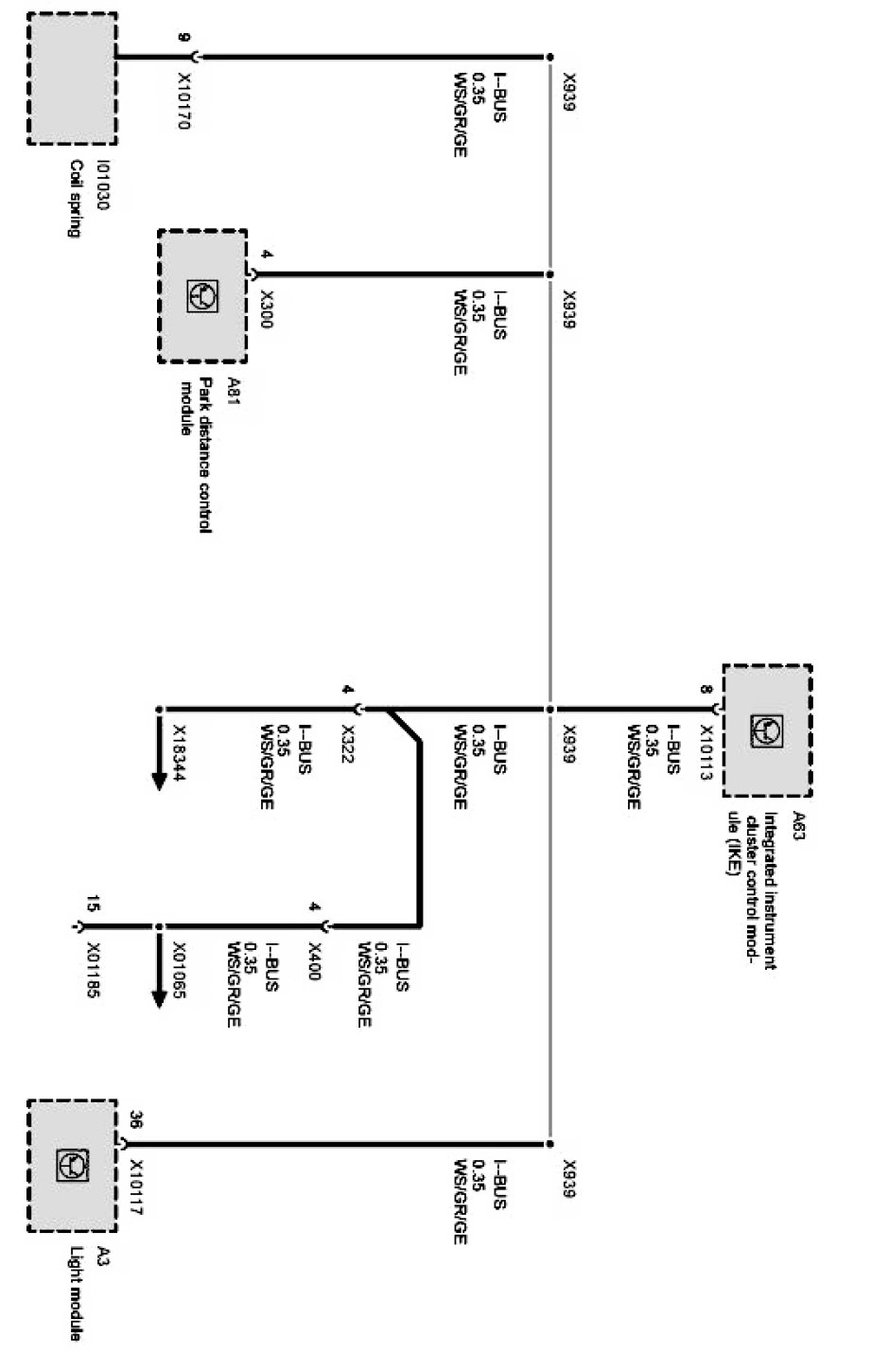

E53 Splice, I-bus X939 Part 1 Of 1:
