Supply Radio/Top HiFi (Top HiFi System (Harman&Kardon) As of 09/01)
Supply Radio/Top HiFi (Top HiFi System (Harman&Kardon) As of 09/01)

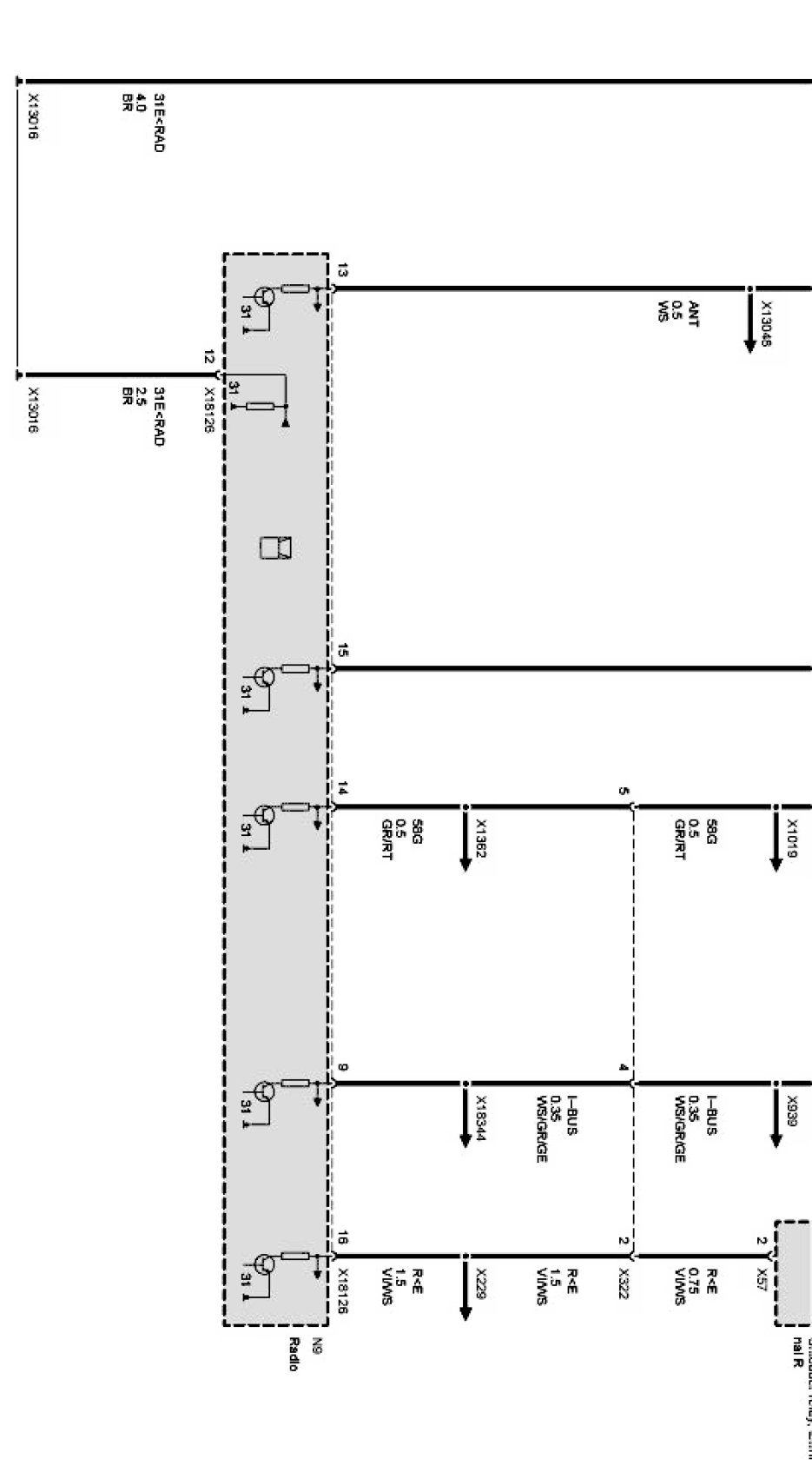

E53 Power supply Radio/Top HiFi Part 1 Of 2:

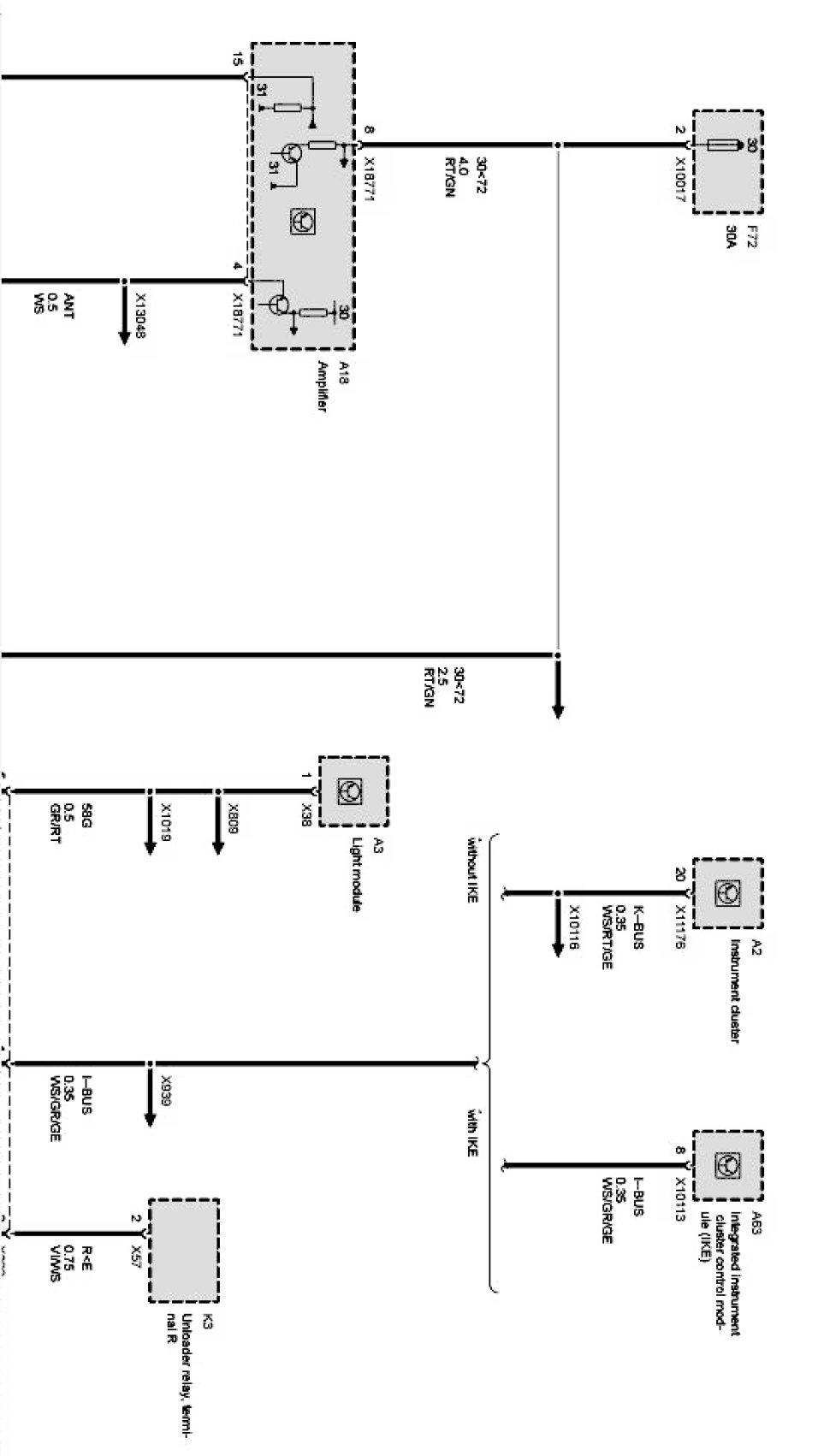

E53 Power supply Radio/Top HiFi Part 2 Of 2:
