Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> Top HiFi System (Harman&Kardon) >> Speaker, Woofer, Front Left >> Front Loudspeaker With Telephone (As of 03/02)

Front Loudspeaker With Telephone (As of 03/02)

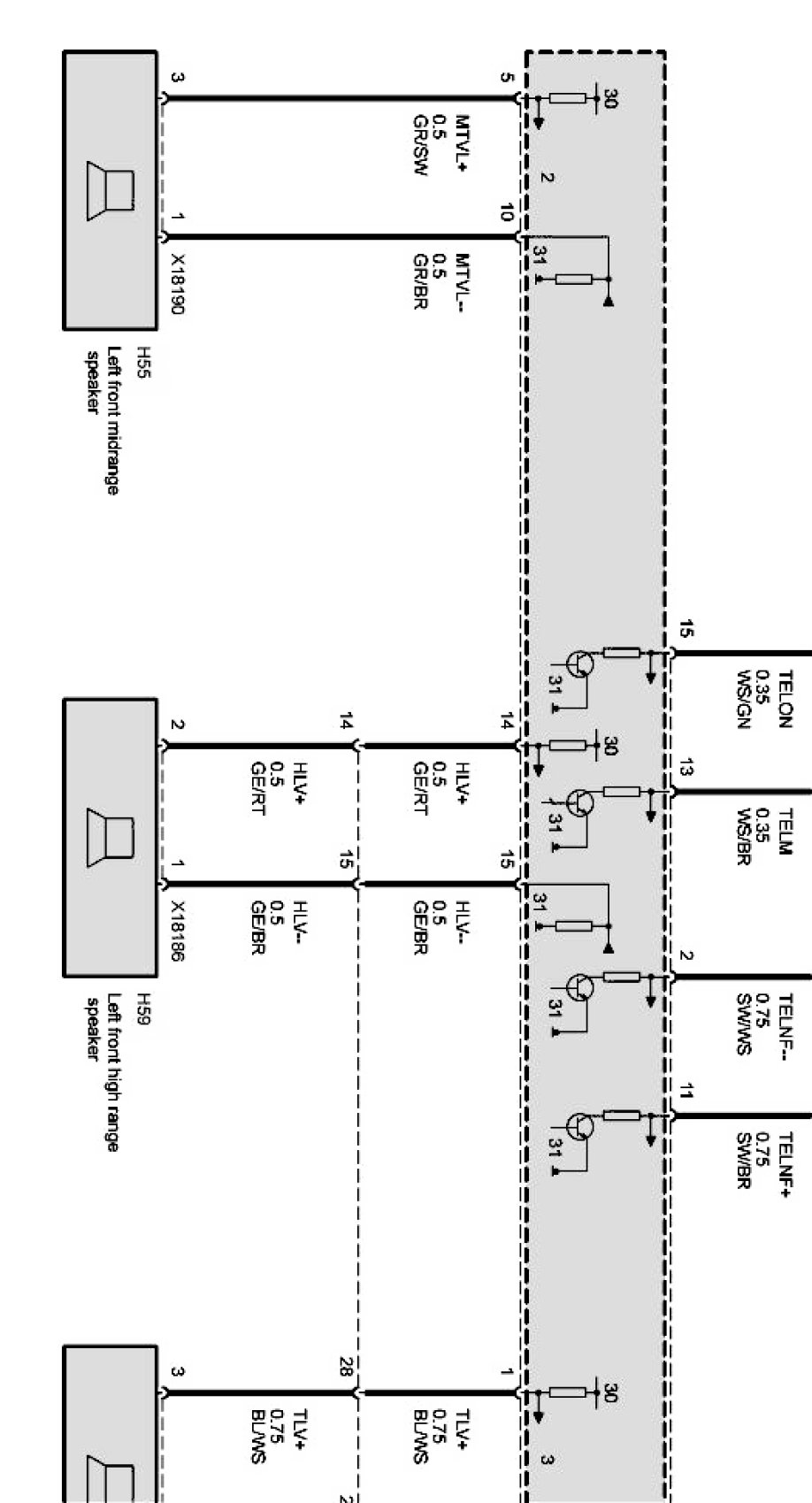

E53 Front loudspeaker with telephone Part 1 Of 6:

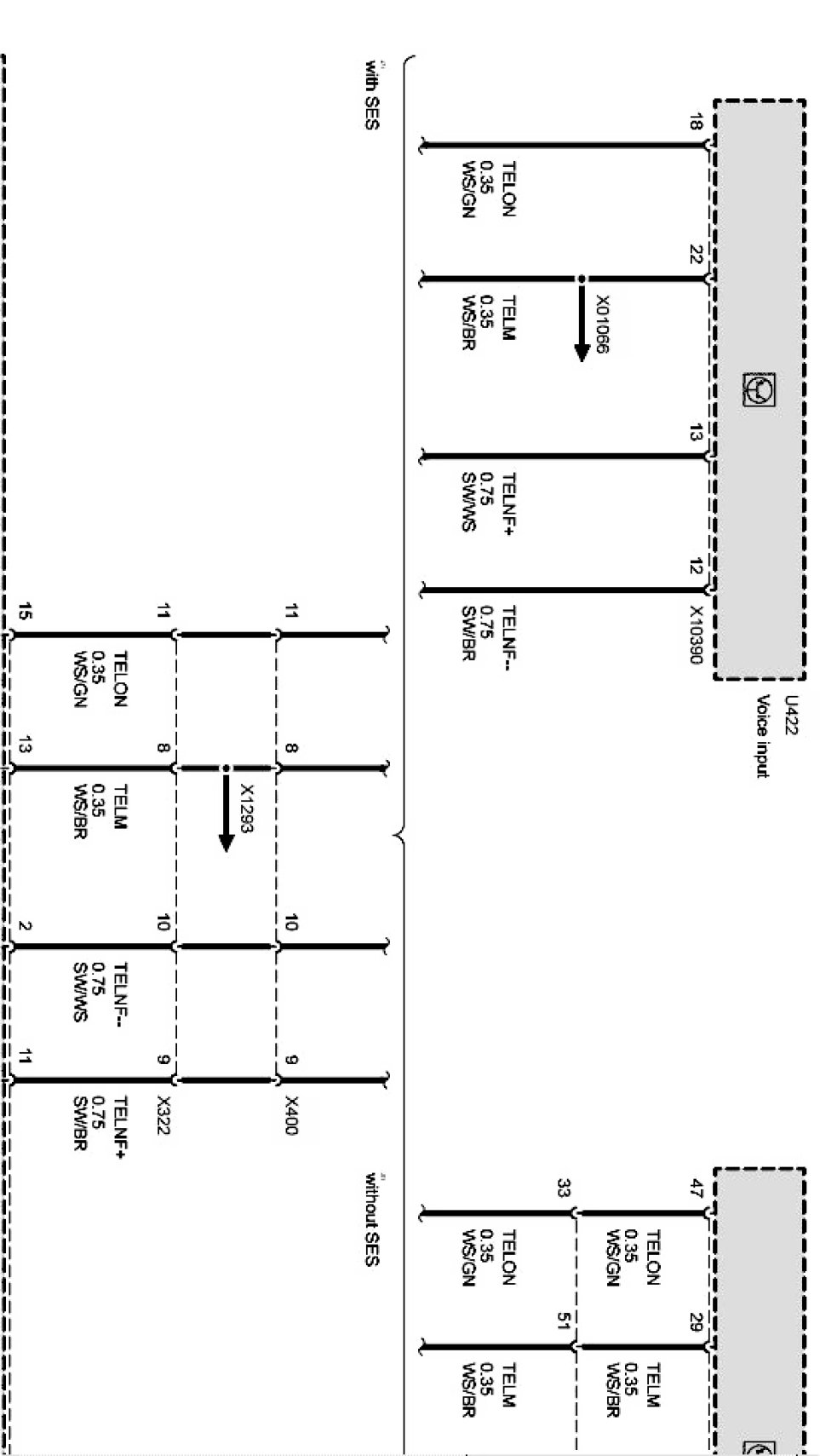

E53 Front loudspeaker with telephone Part 2 Of 6:

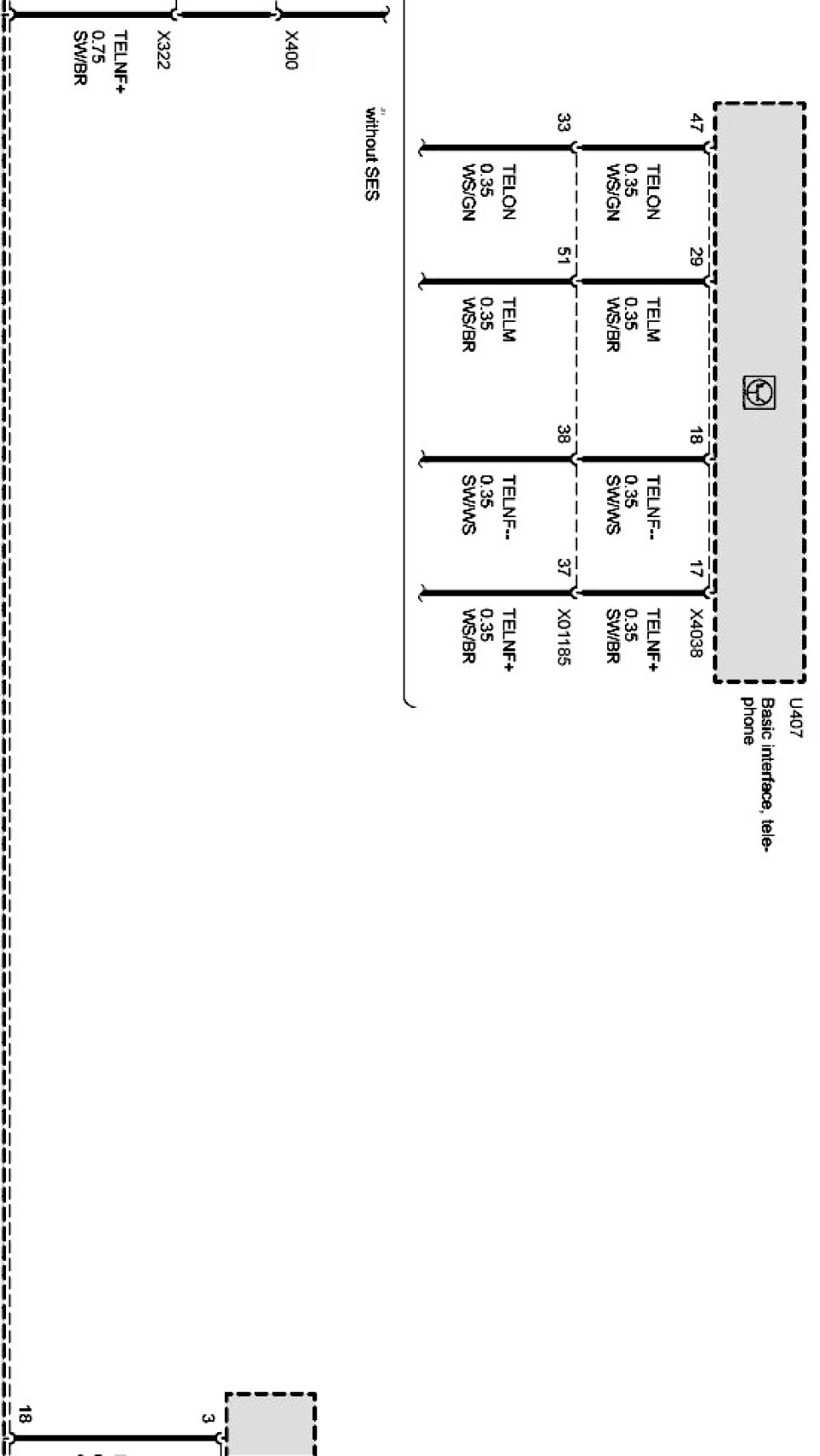

E53 Front loudspeaker with telephone Part 3 Of 6:

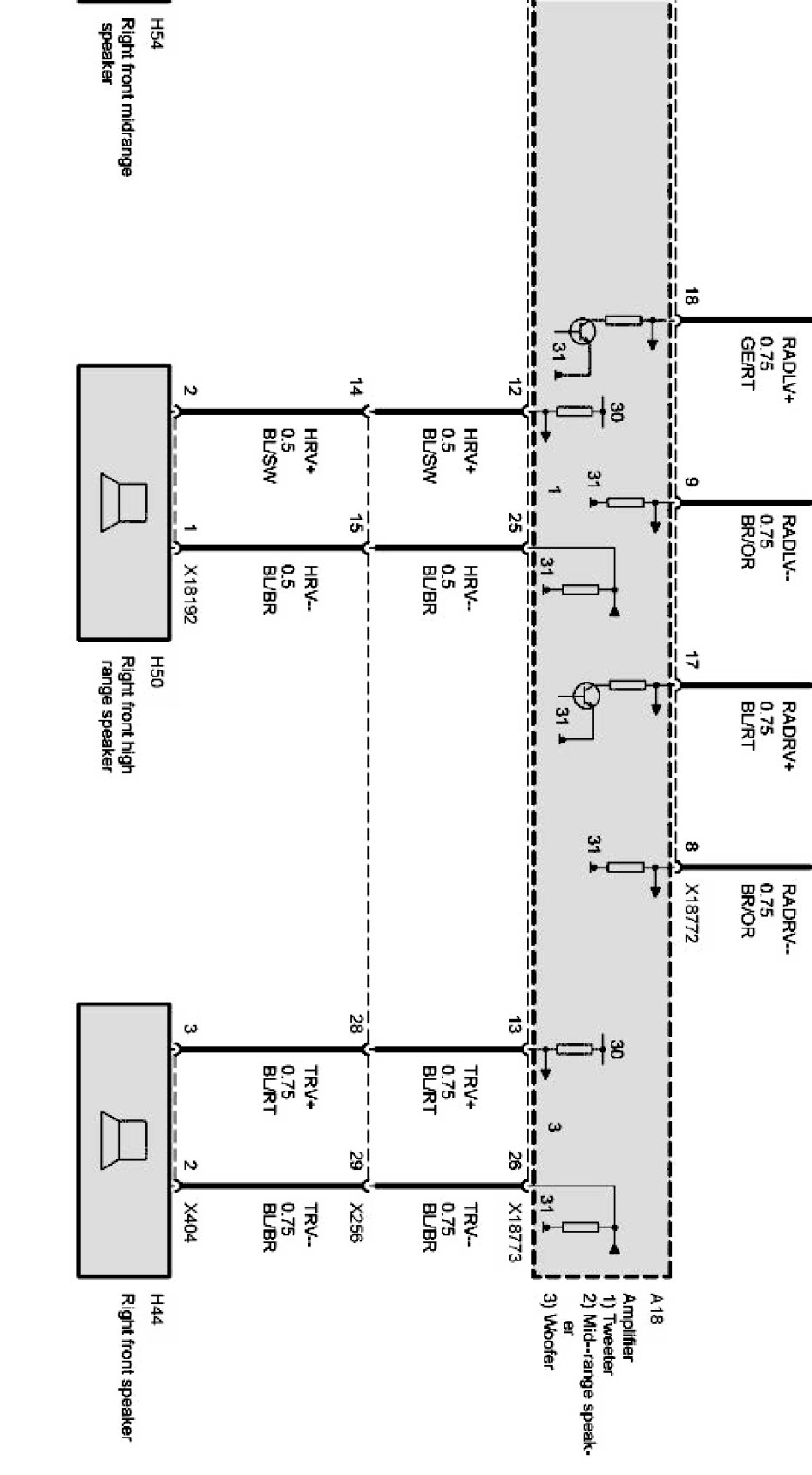

E53 Front loudspeaker with telephone Part 4 Of 6:

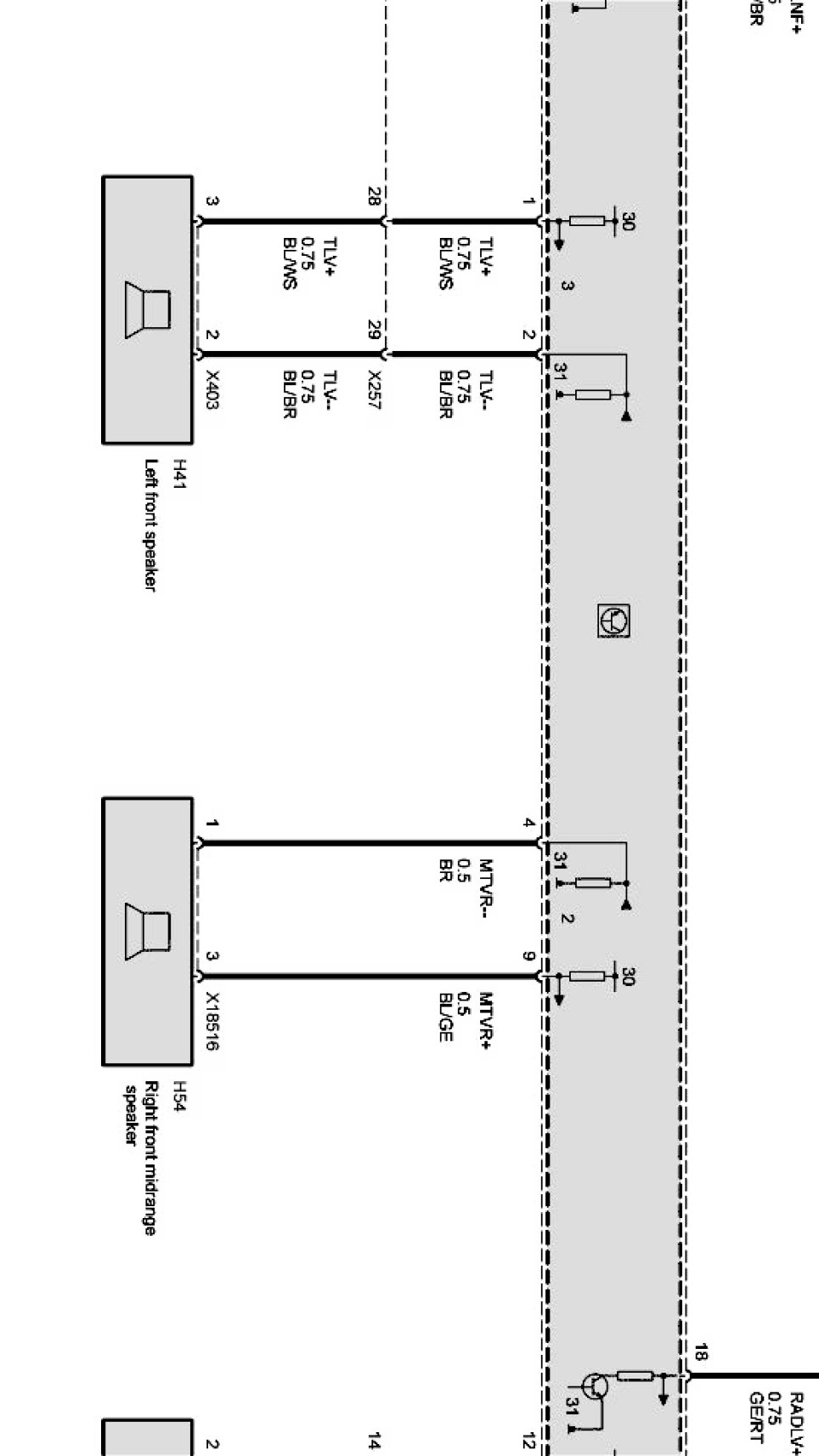

E53 Front loudspeaker with telephone Part 5 Of 6:

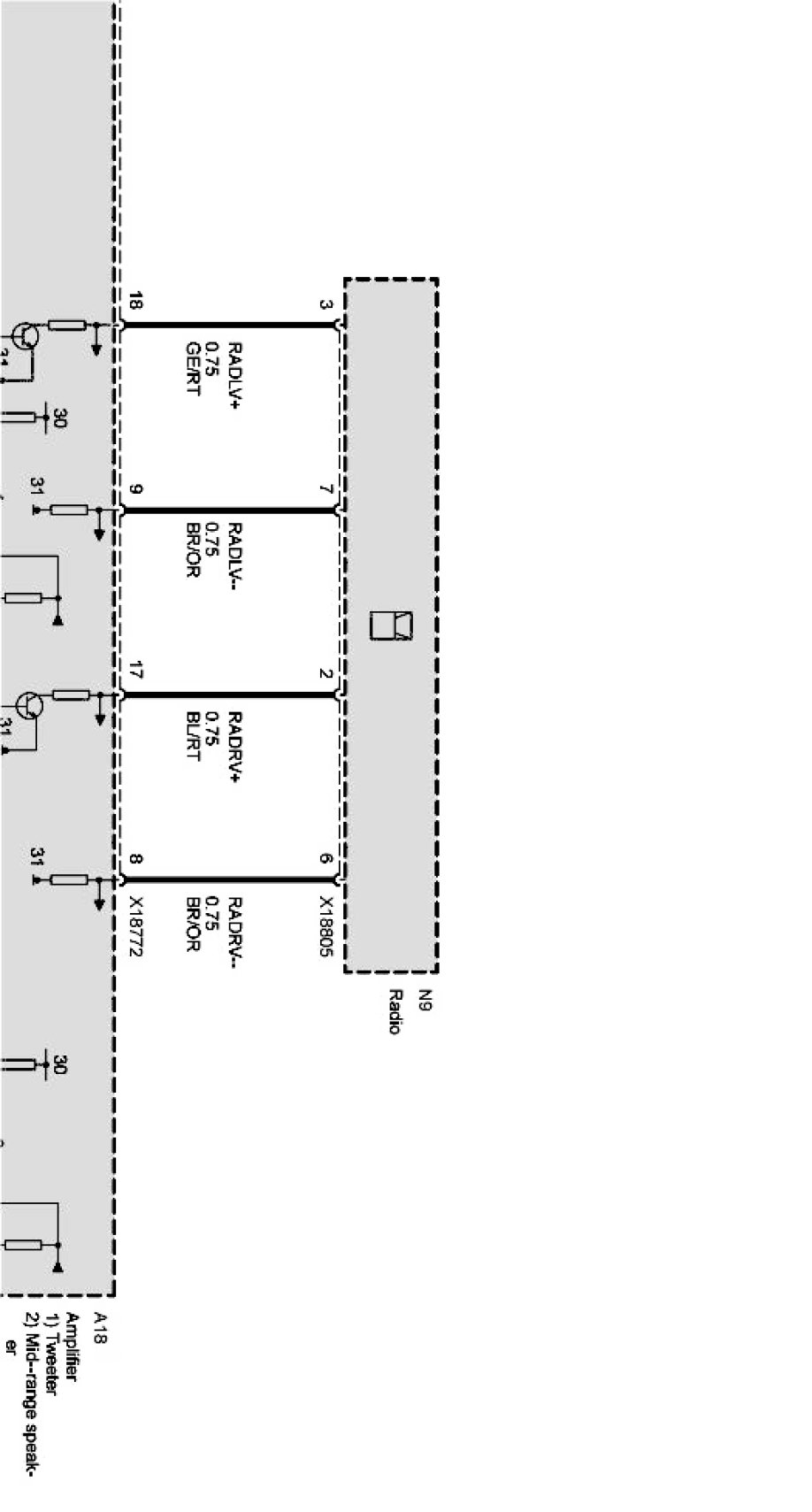

E53 Front loudspeaker with telephone Part 6 Of 6:
