Radio (HiFi System (10 Speakers) As of 03/02)

E53 Radio Part 1 Of 8:



E53 Radio Part 2 Of 8:



E53 Radio Part 3 Of 8:



E53 Radio Part 4 Of 8:



E53 Radio Part 5 Of 8:

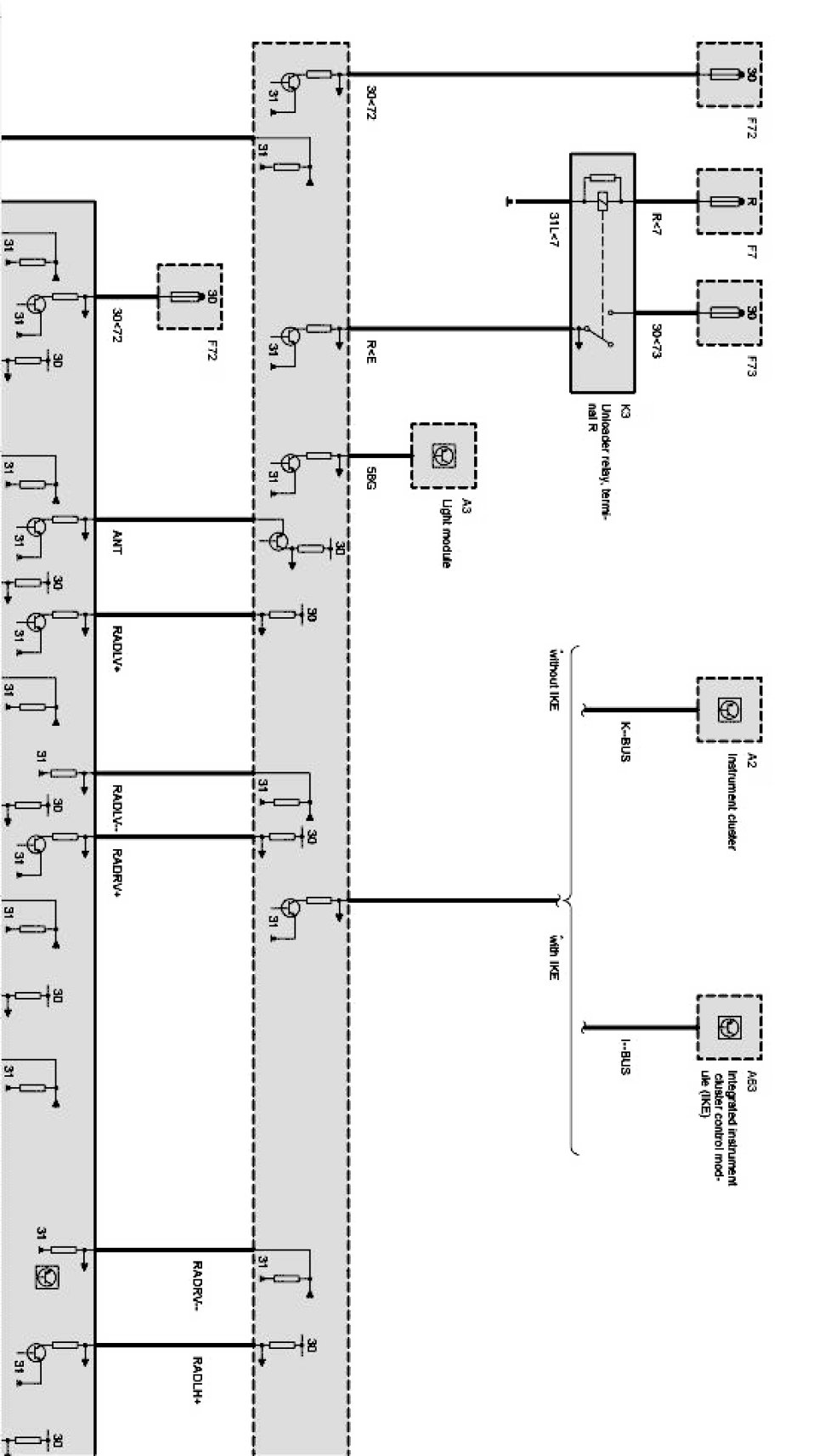

E53 Radio Part 6 Of 8:

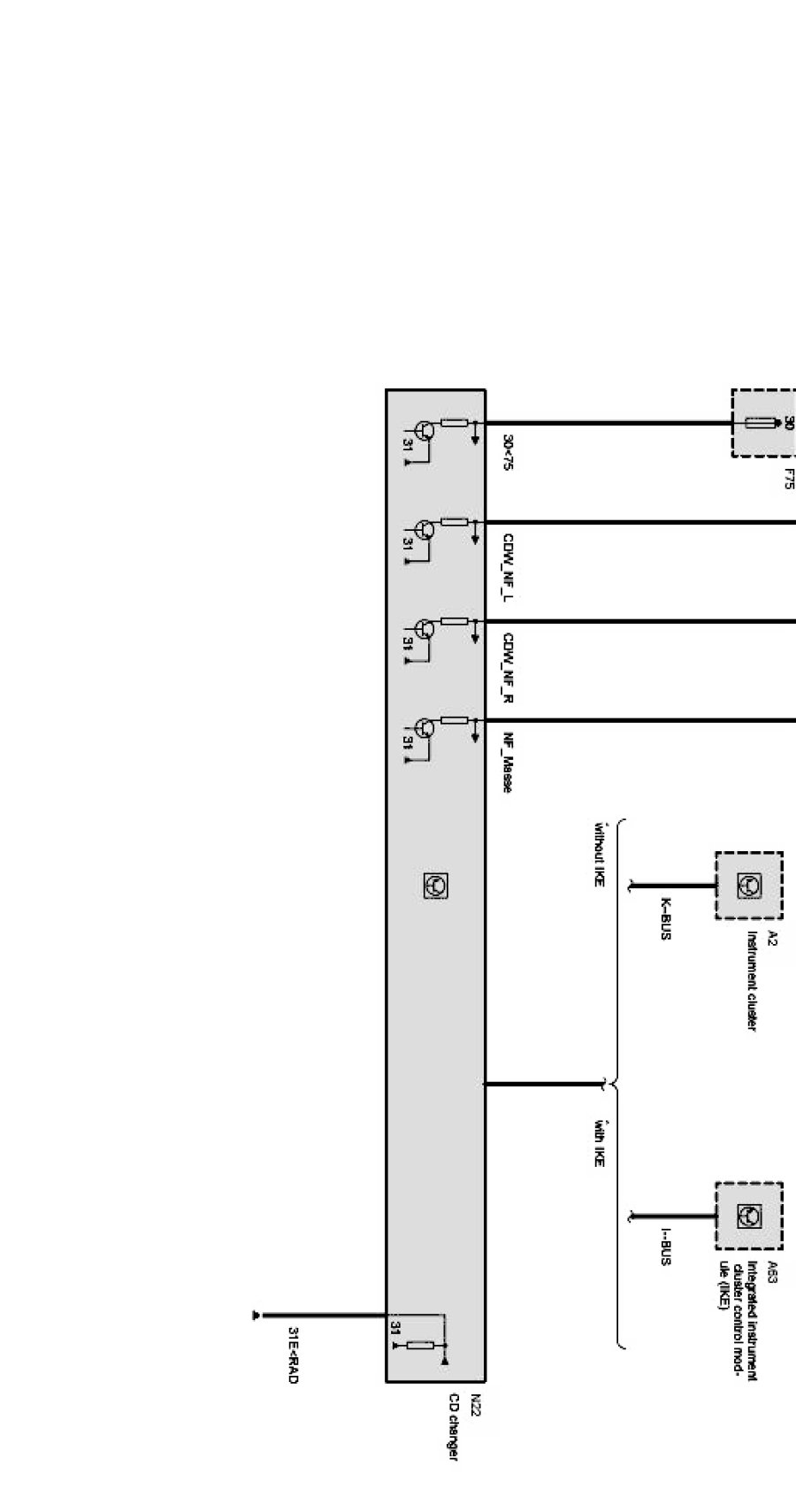

E53 Radio Part 7 Of 8:

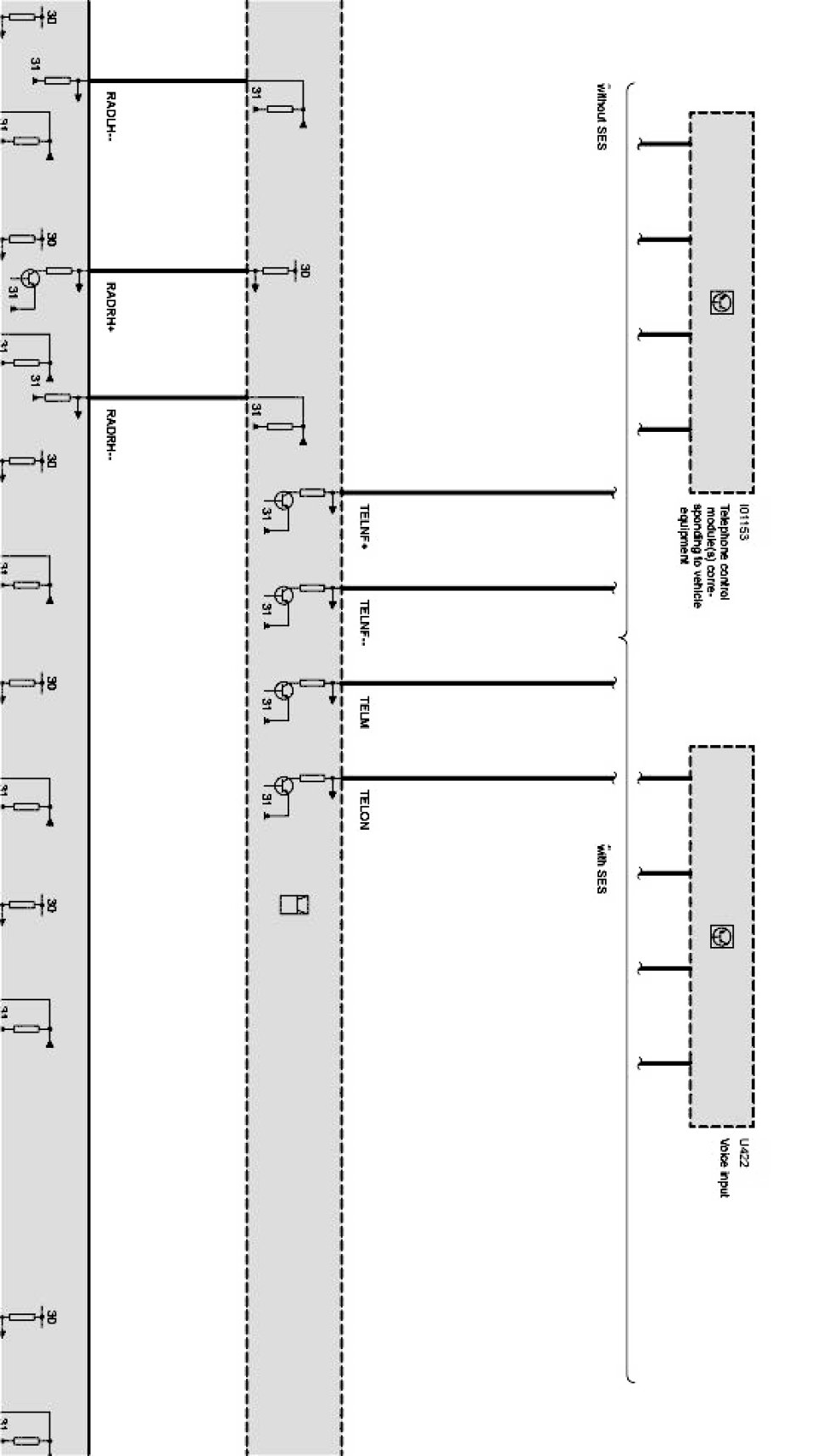

E53 Radio Part 8 Of 8:
