Locator Lighting - splice terminal 58g X806
Locator Lighting - splice terminal 58g X806

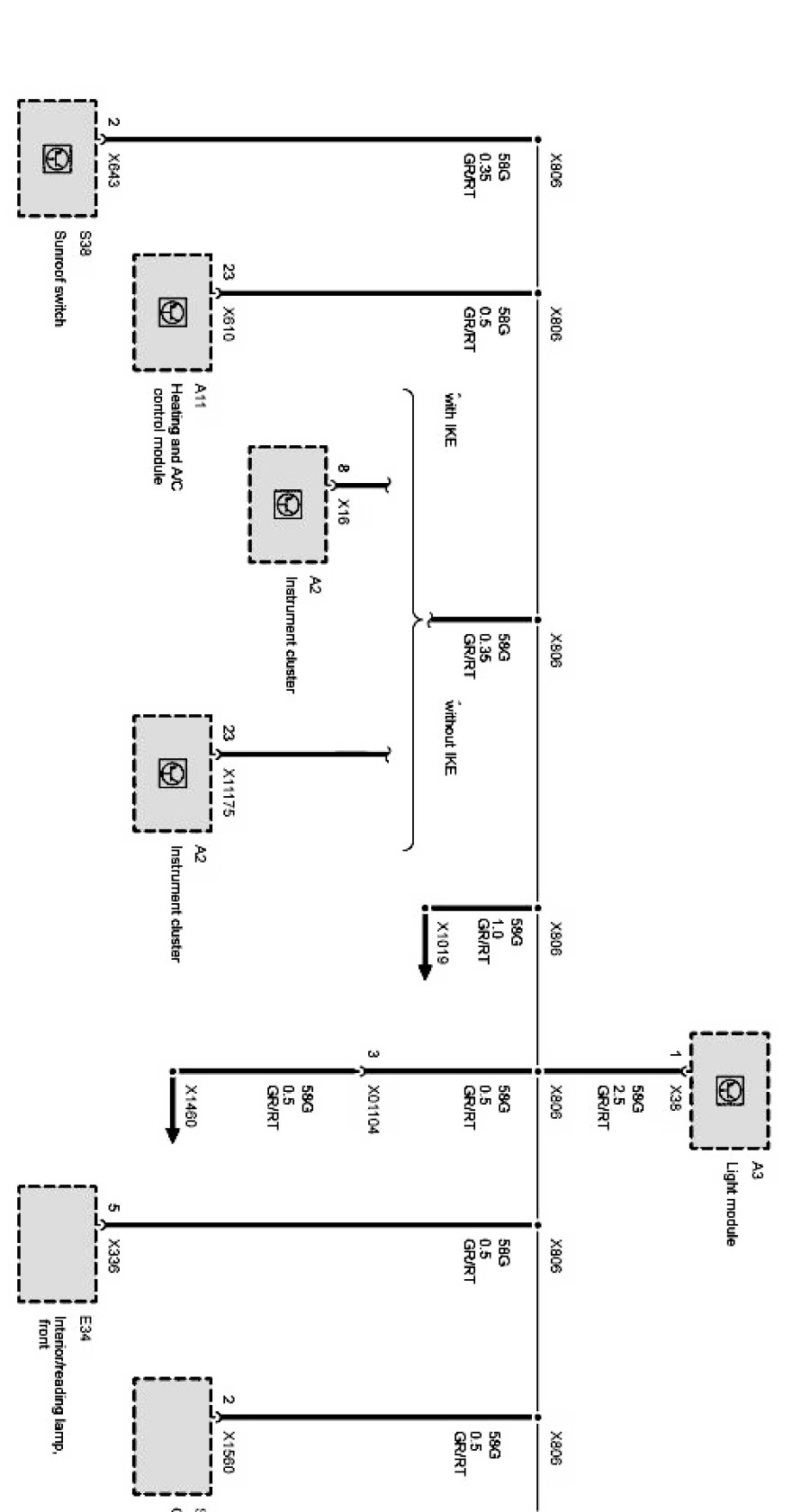

E53 Splice, terminal 58g X806 Part 1 Of 2:

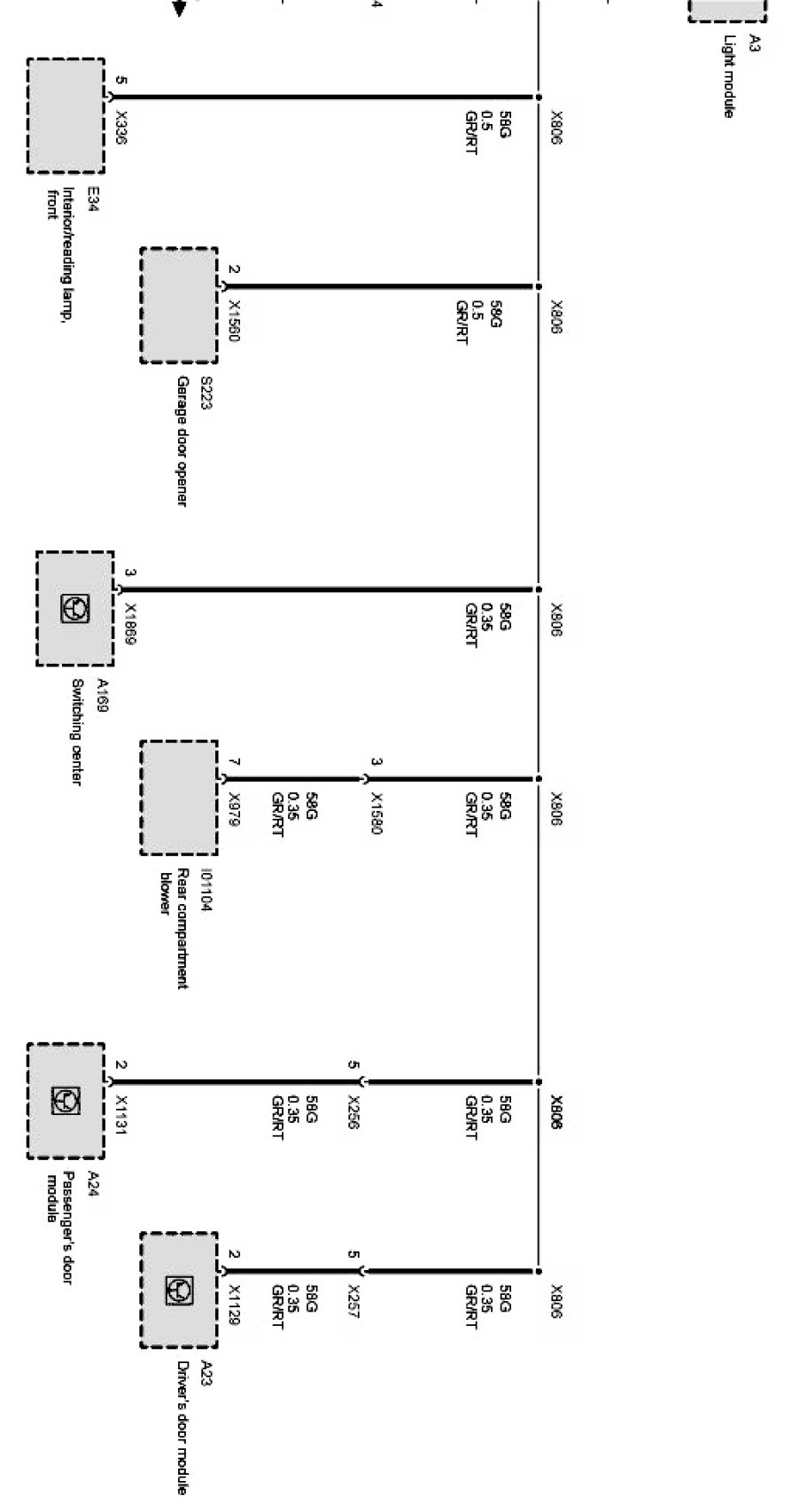

E53 Splice, terminal 58g X806 Part 2 Of 2:
