Speaker, Mid-Range Speaker/Woofer, Rear Left
Speaker, Mid-Range Speaker/Woofer, Rear Left

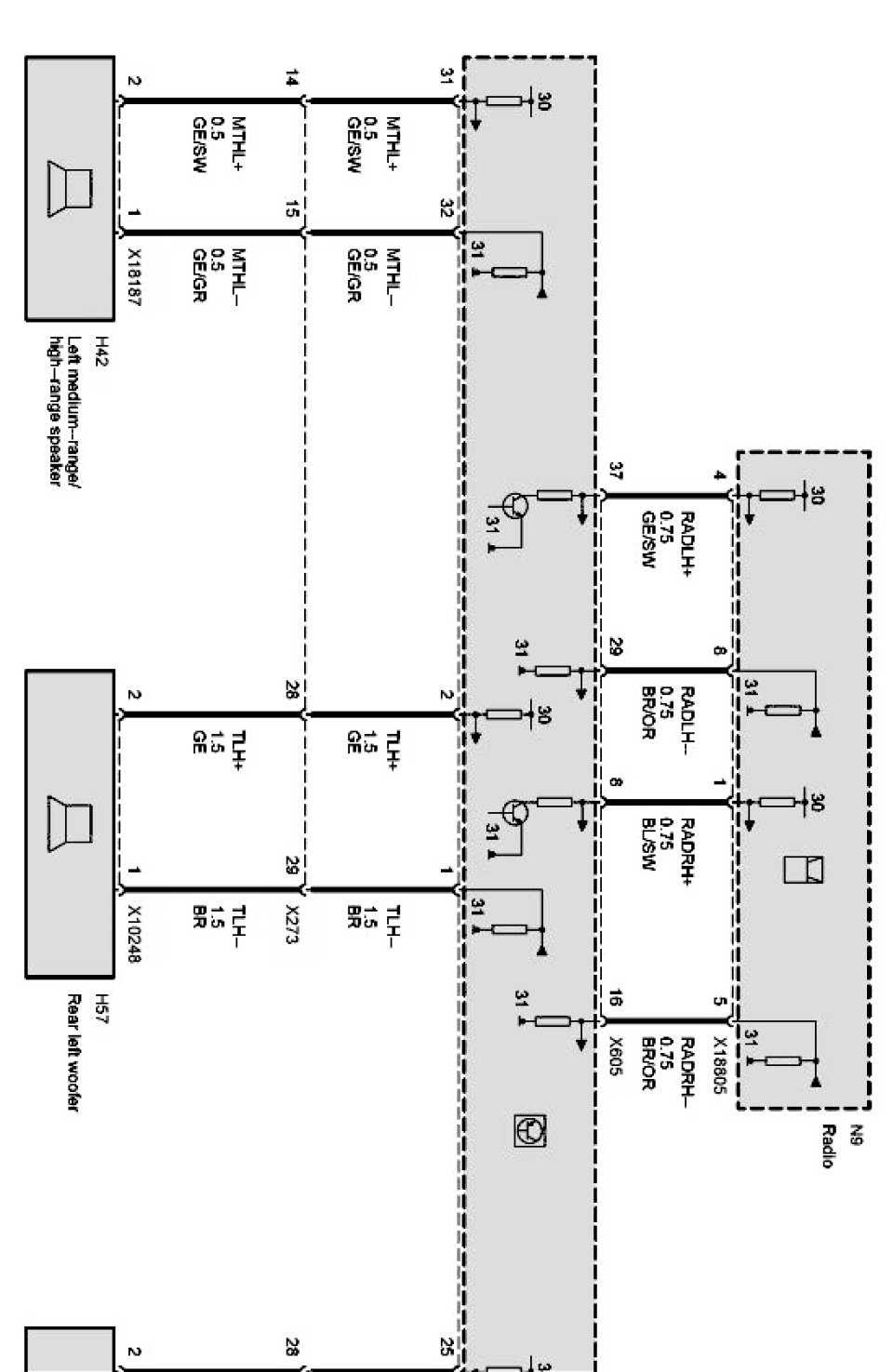

E53 Rear speakers Part 1 Of 2:

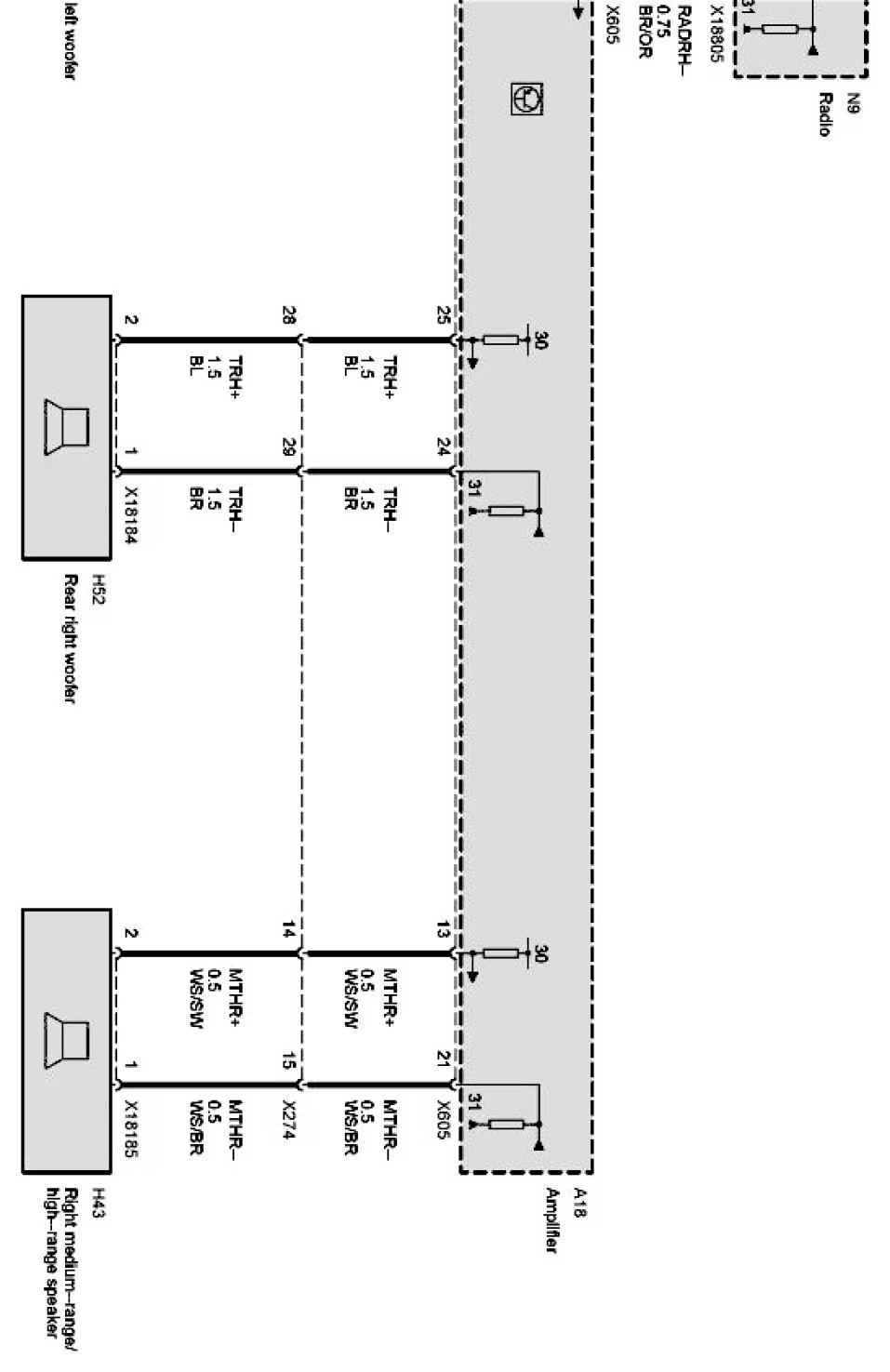

E53 Rear speakers Part 2 Of 2:
