FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2006
>>
X5 (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
HiFi System (HiFi System 10 Speakers)
>>
HiFi Amplifier (Supply)
HiFi Amplifier (Supply)

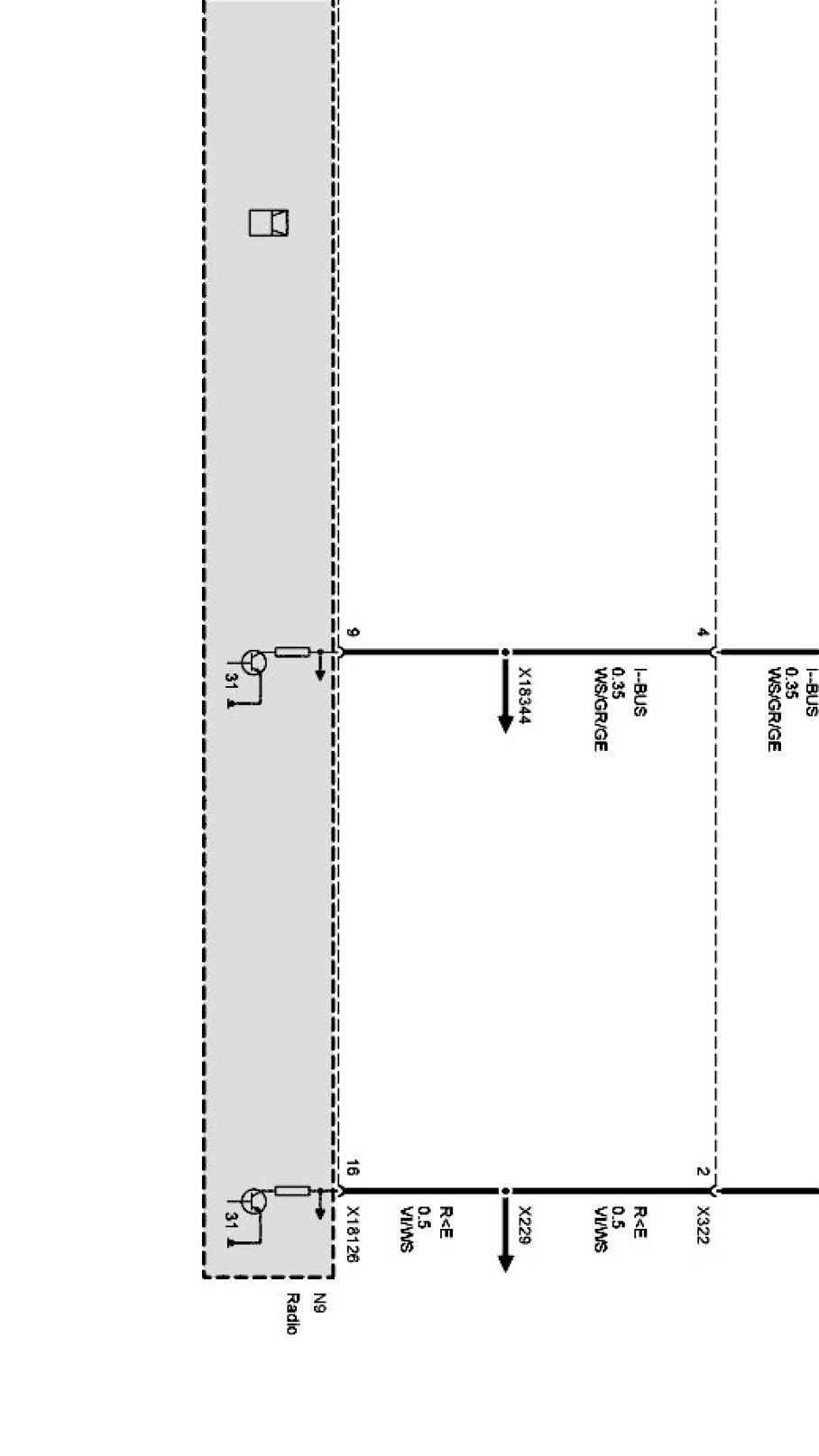

E53 Power supply Radio/HiFi Part 1 Of 4:

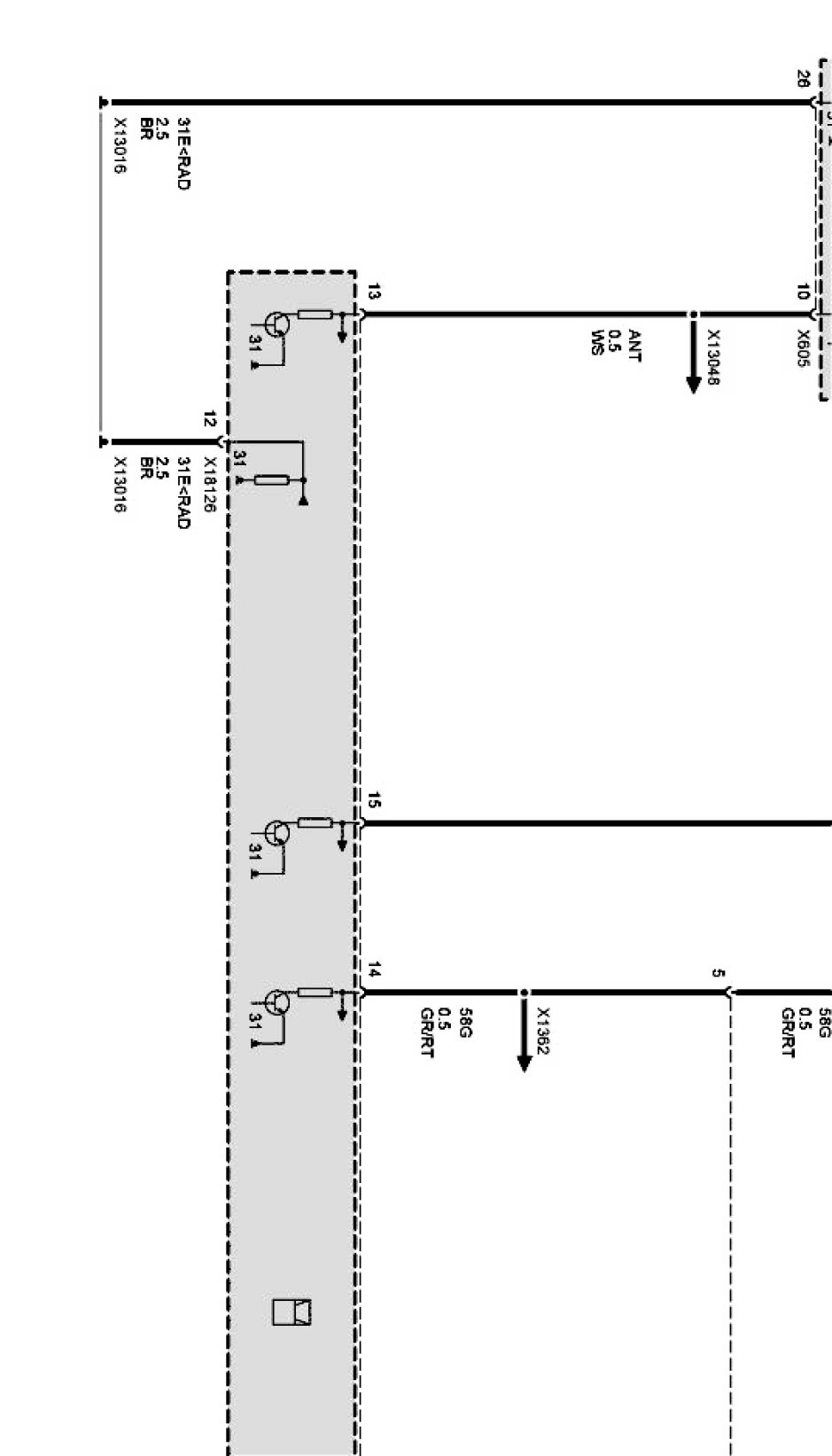

E53 Power supply Radio/HiFi Part 2 Of 4:

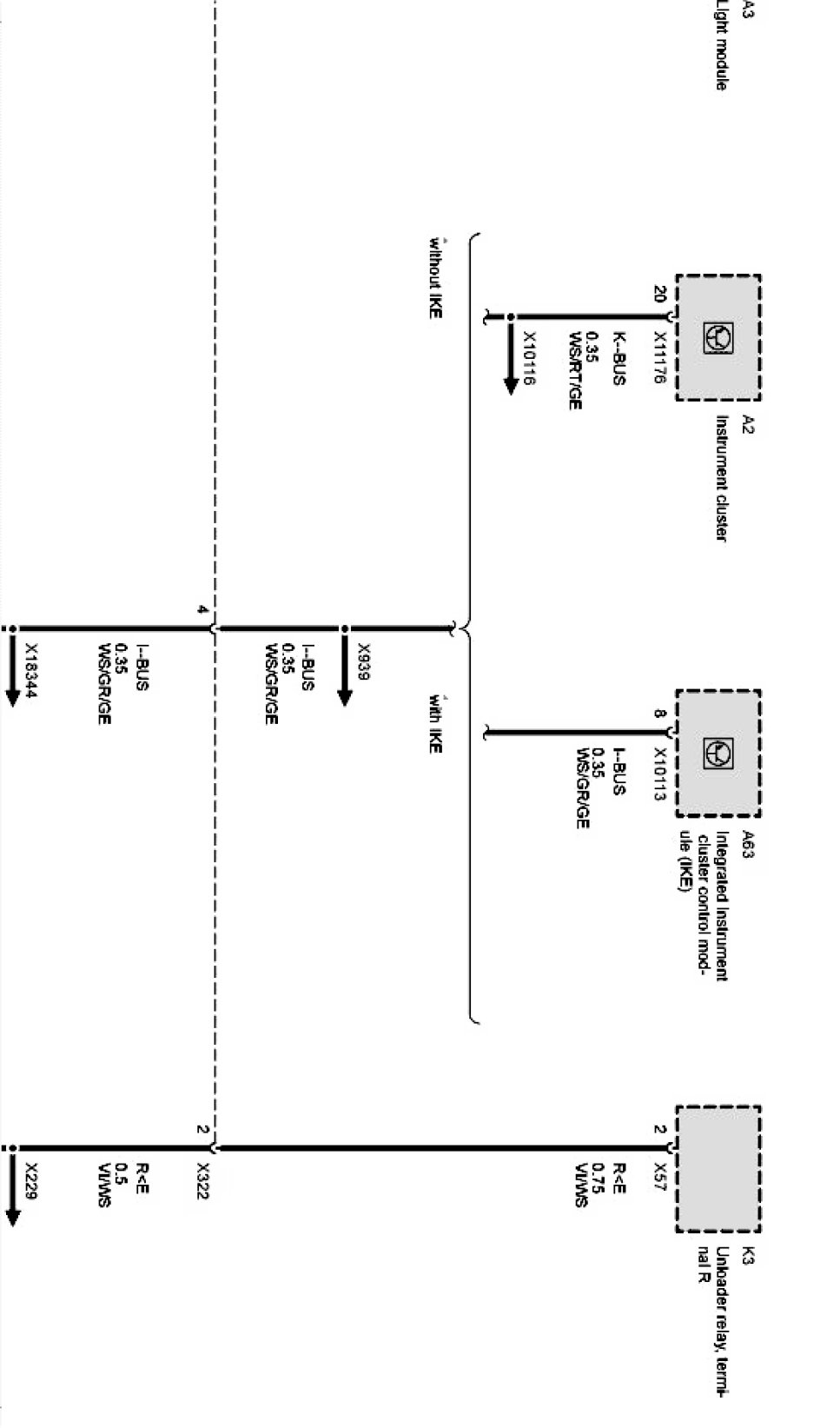

E53 Power supply Radio/HiFi Part 3 Of 4:

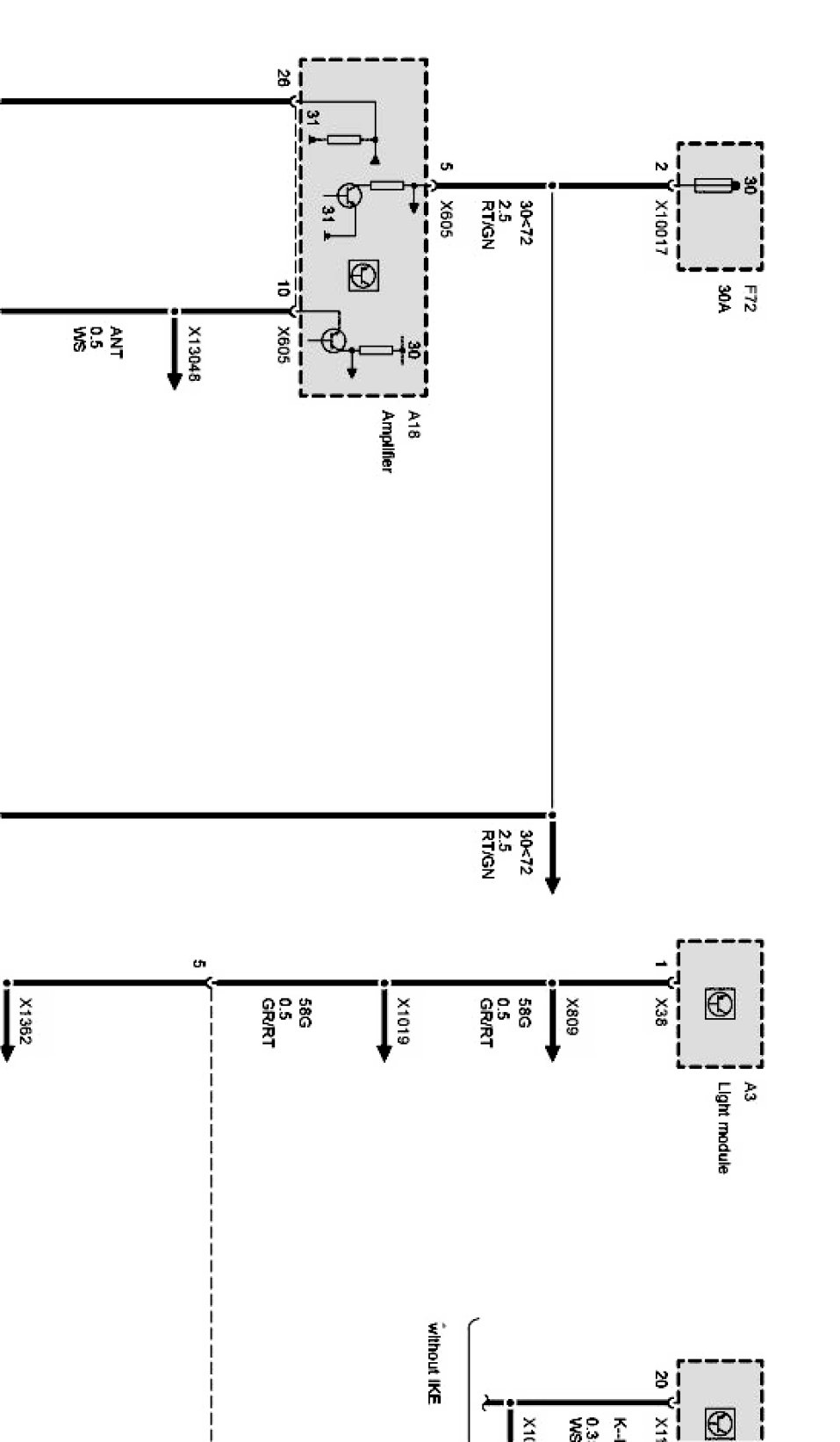

E53 Power supply Radio/HiFi Part 4 Of 4:
