Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> CD Changer

CD Changer

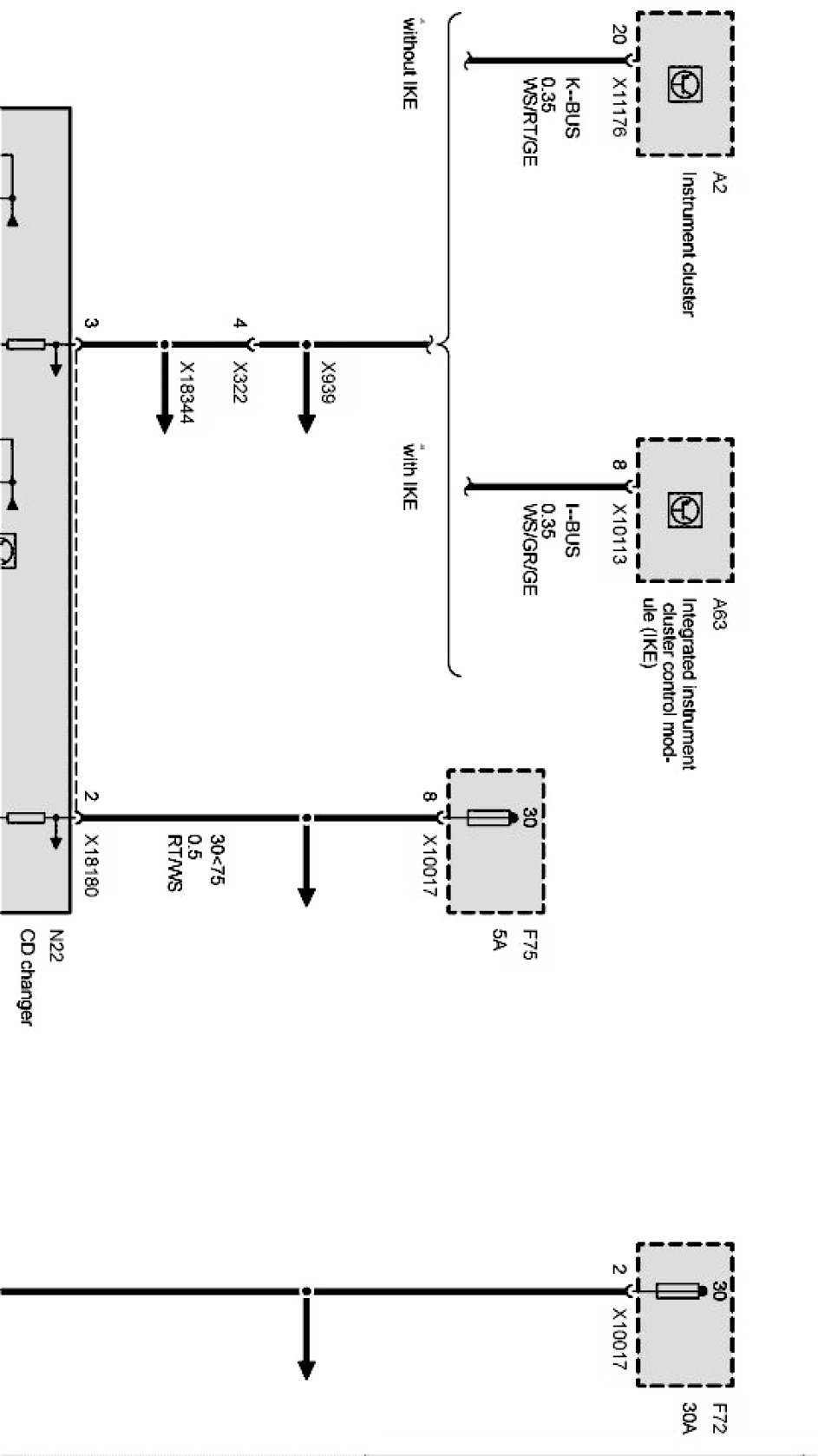

E53 CD changer Part 1 Of 2:

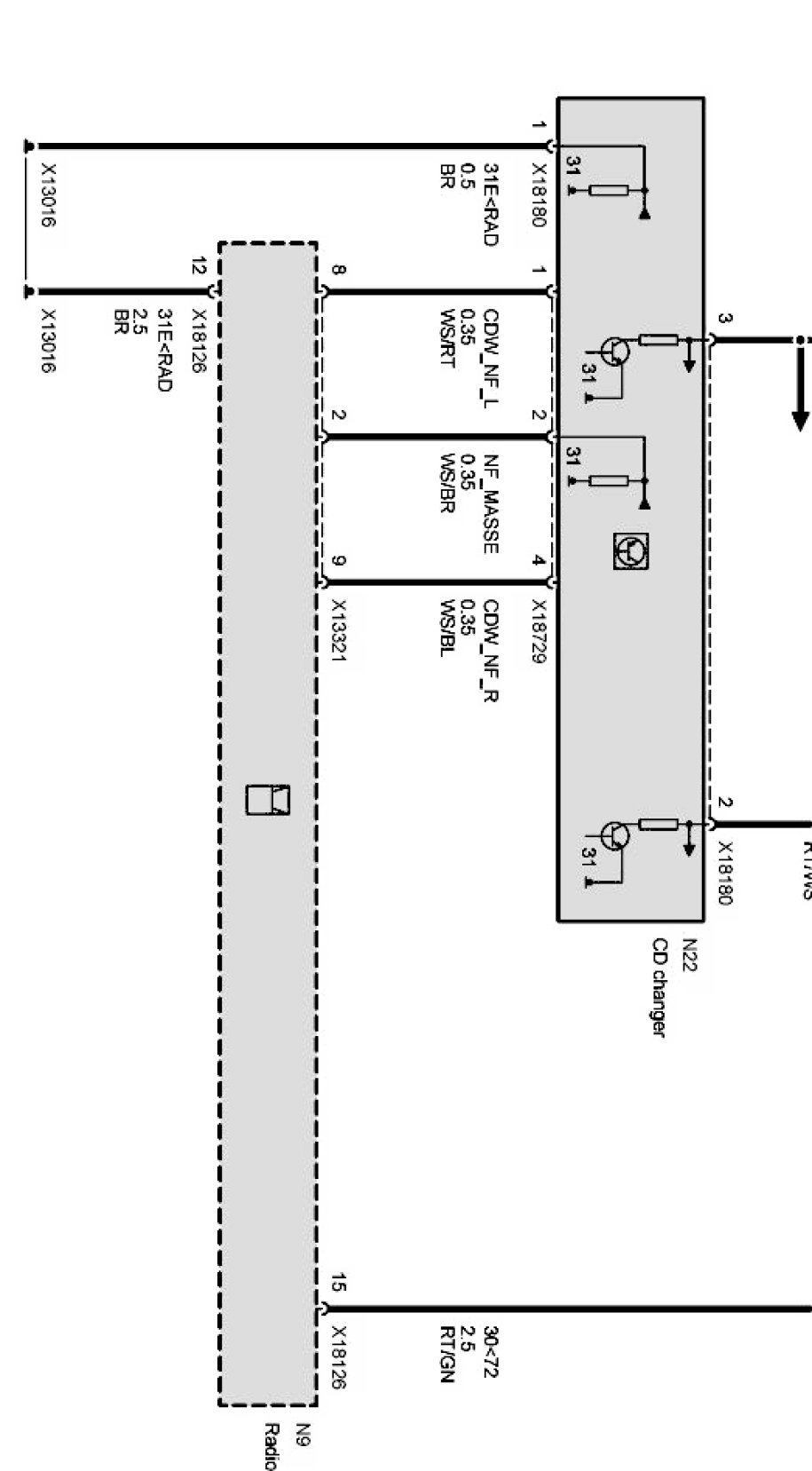

E53 CD changer Part 2 Of 2:
