Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Navigation (Nav Navigation Computer MKII or Nav Navigation Computer) >> Interface, ASC/DSC - LH Front Wheel Speed

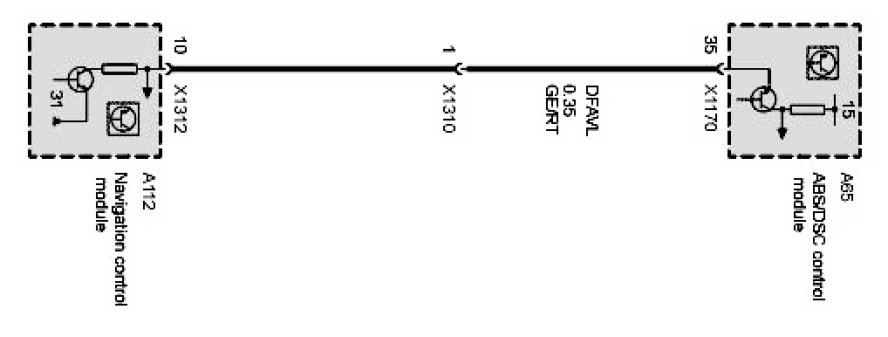

Interface, ASC/DSC - LH Front Wheel Speed

E53 LH front wheel speed Part 1 Of 1:
