Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X1 >> X1804 Plug, Navigation/Video Module

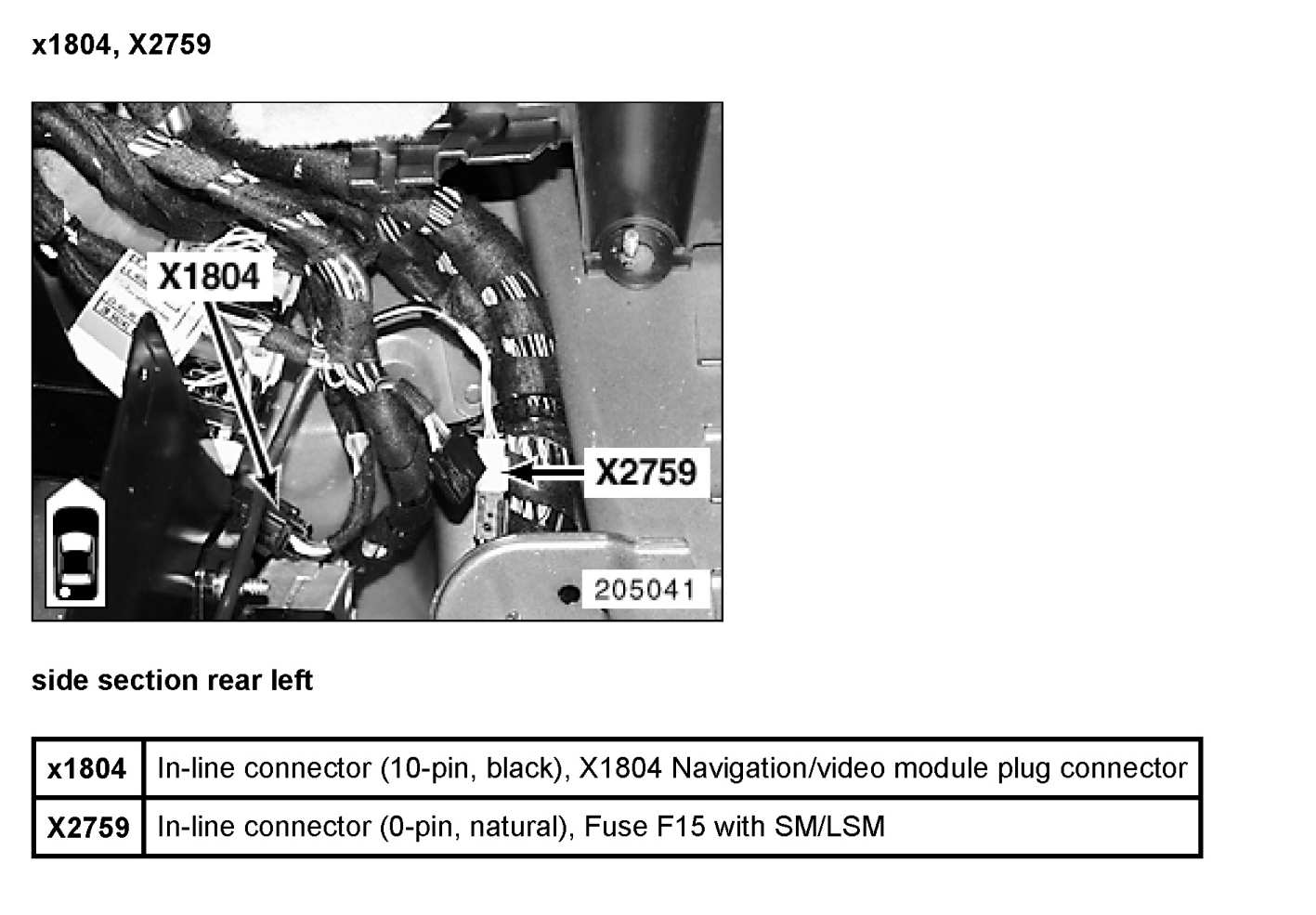

X1804 Plug, Navigation/Video Module
