X4039 (A117 Eject Box (Fixed, Mounting, Siemens (Cordless Handset)))
X4039 (A117 Eject Box (Fixed, Mounting, Siemens (Cordless Handset)))

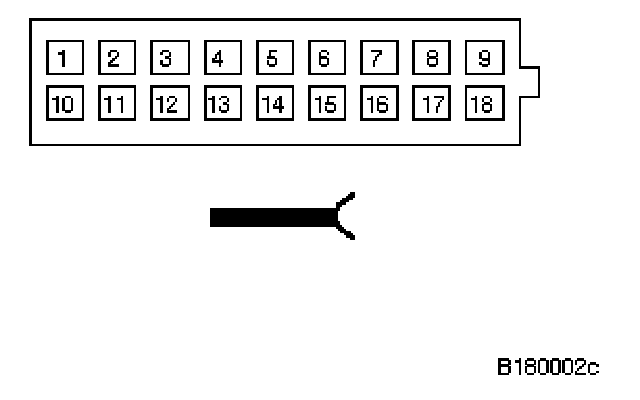

X4039 Component Connector (18-Pin, Black):

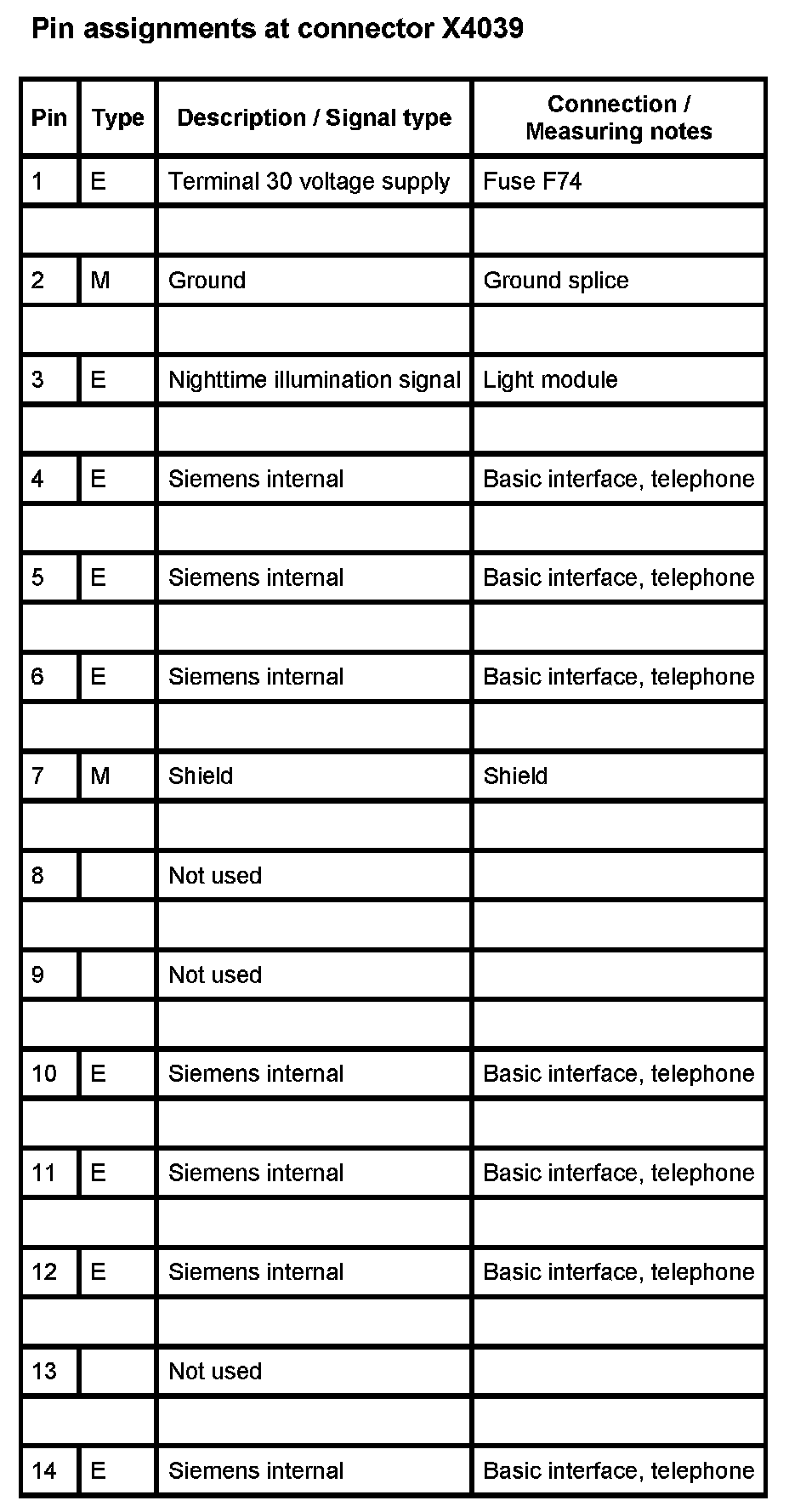

X4039 - Part 1:

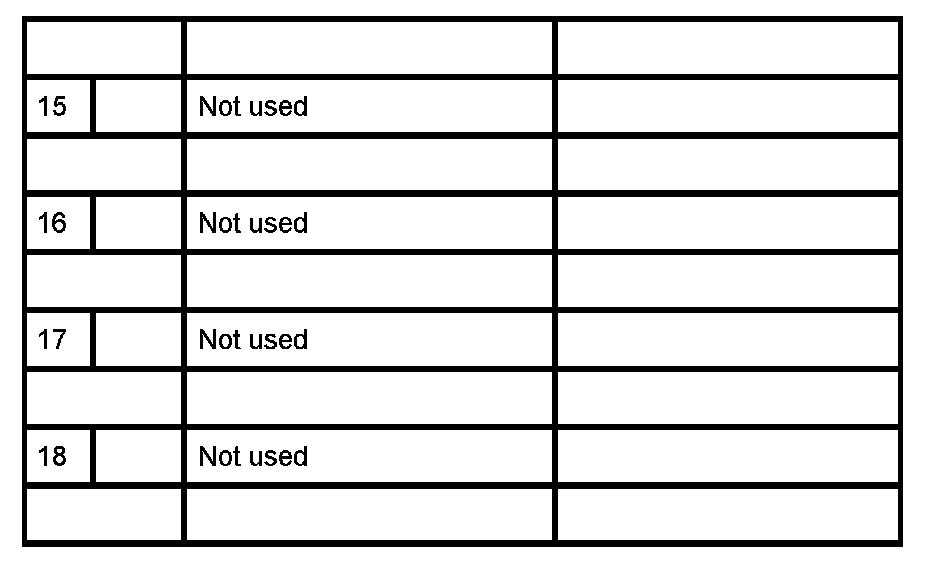

X4039 - Part 2:
