H38 Transceiver/Charging Electronics (Cell Phone, Motorola (V Series) As of 03/02)
H38 Transceiver/Charging Electronics (Cell Phone, Motorola (V Series) As of 03/02)

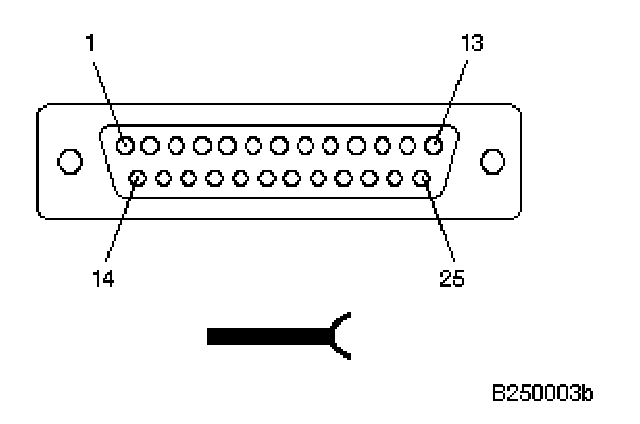

X18500 Component Connector (25-Pin, Black):

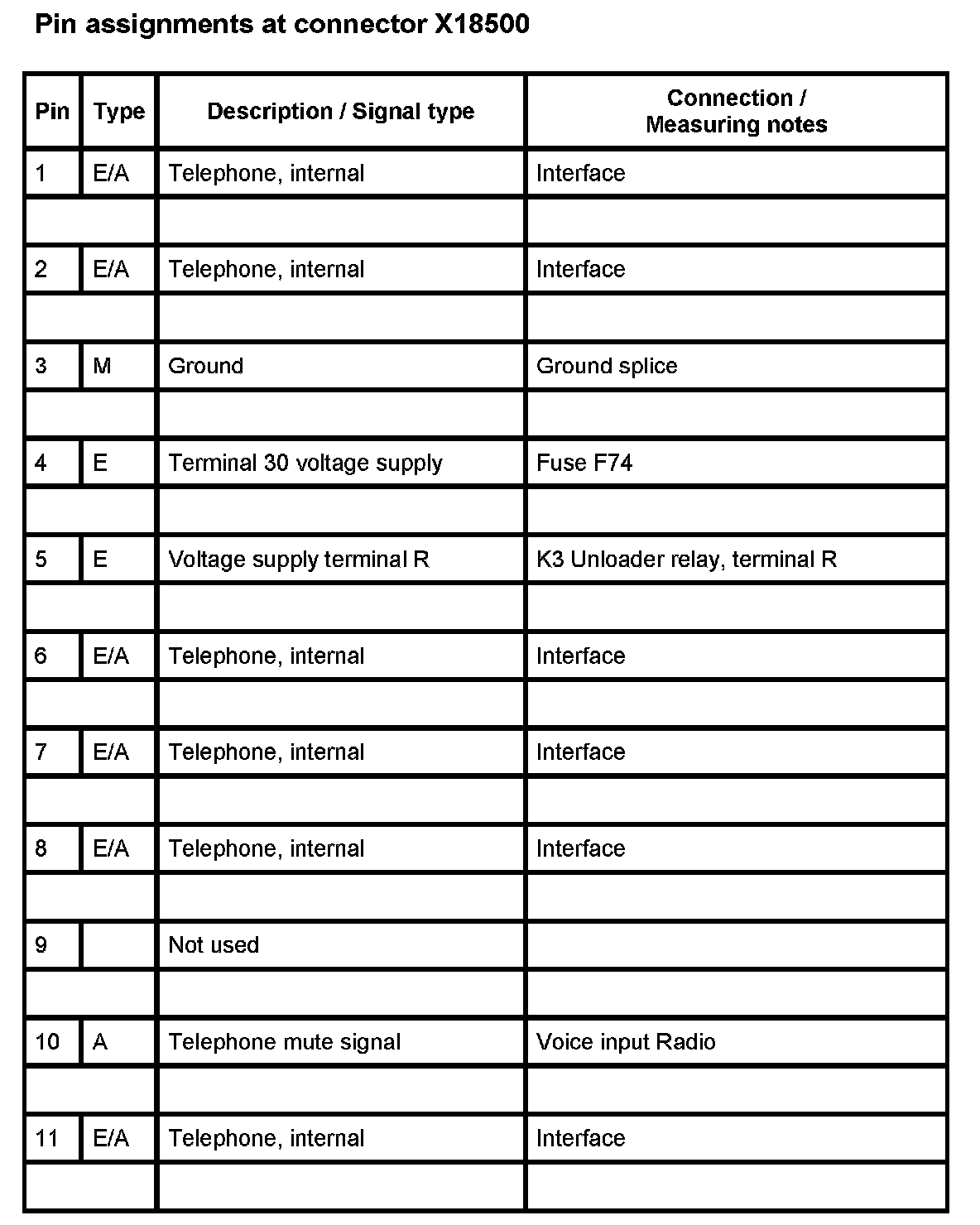

X18500 - Part 1:

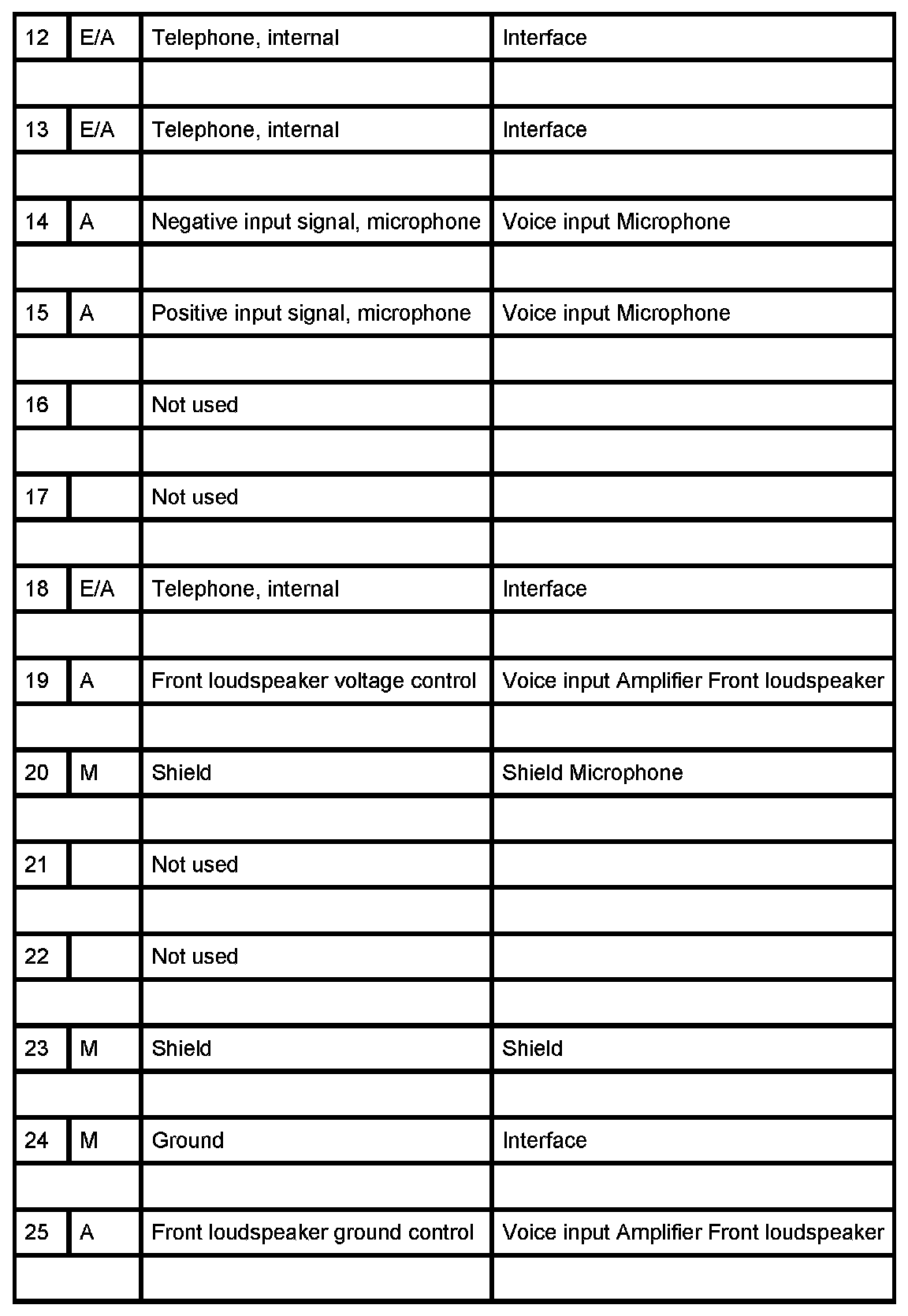

X18500 - Part 2:
