Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X18362 (A81 Park Distance (PDC))

X18362 (A81 Park Distance (PDC))

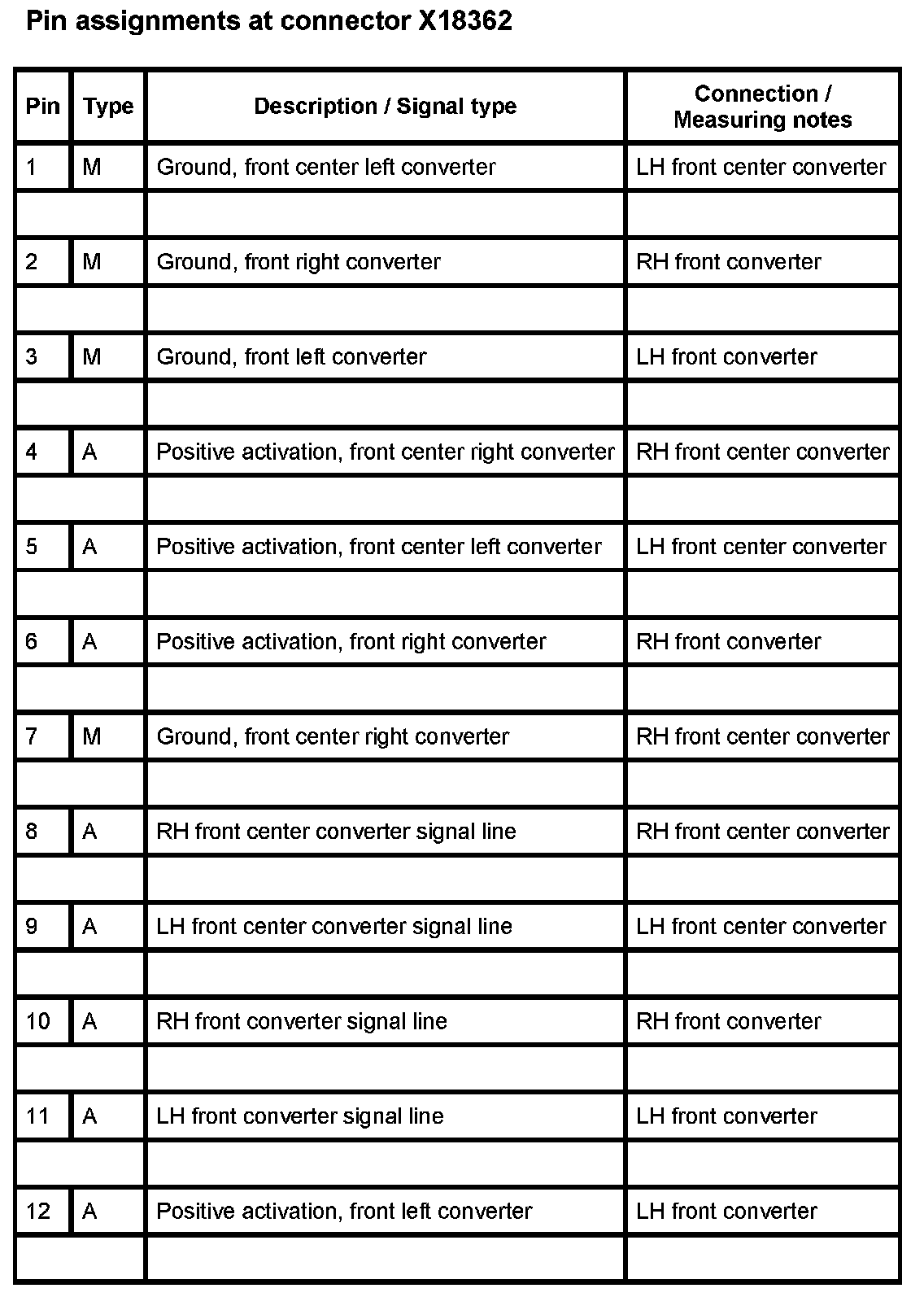

X18362 Component Connector (12-Pin, Blue):



X18362:
