Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X16

X16

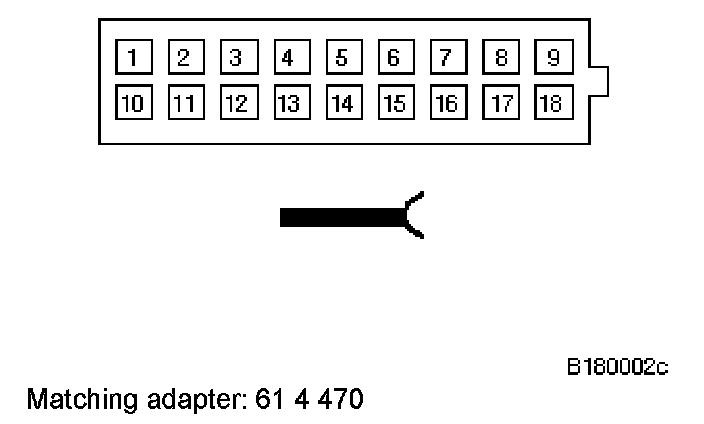

X16 Component Connector (18-Pin, Black):



X16 - Part 1:

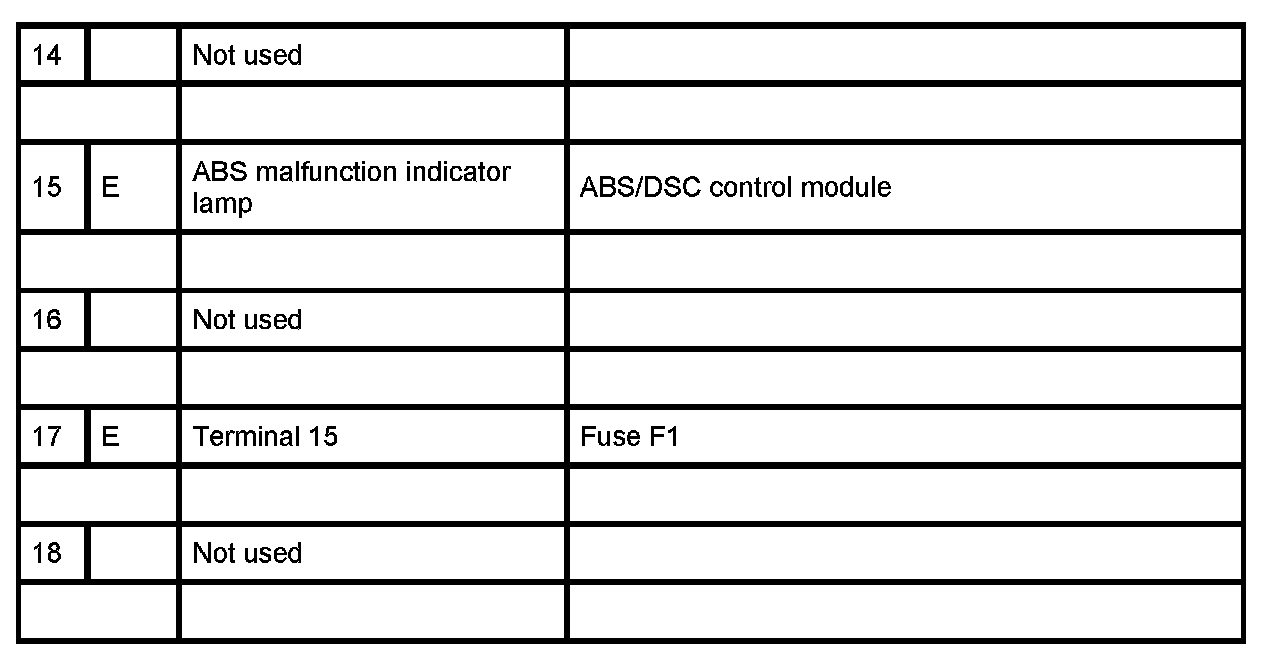

X16 - Part 2:
