X1448 (A118 Air Suspension Control Unit (EHC Electronic Height Control))
X1448 (A118 Air Suspension Control Unit (EHC Electronic Height Control))

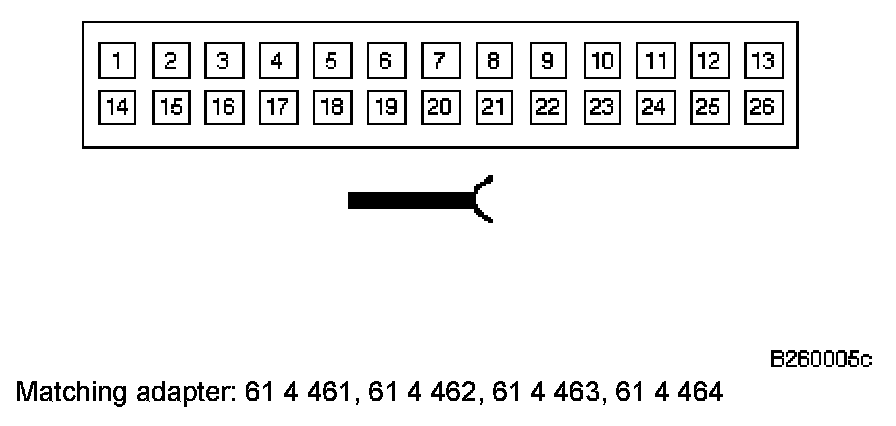

X1448 Component Connector (26-Pin, Black):

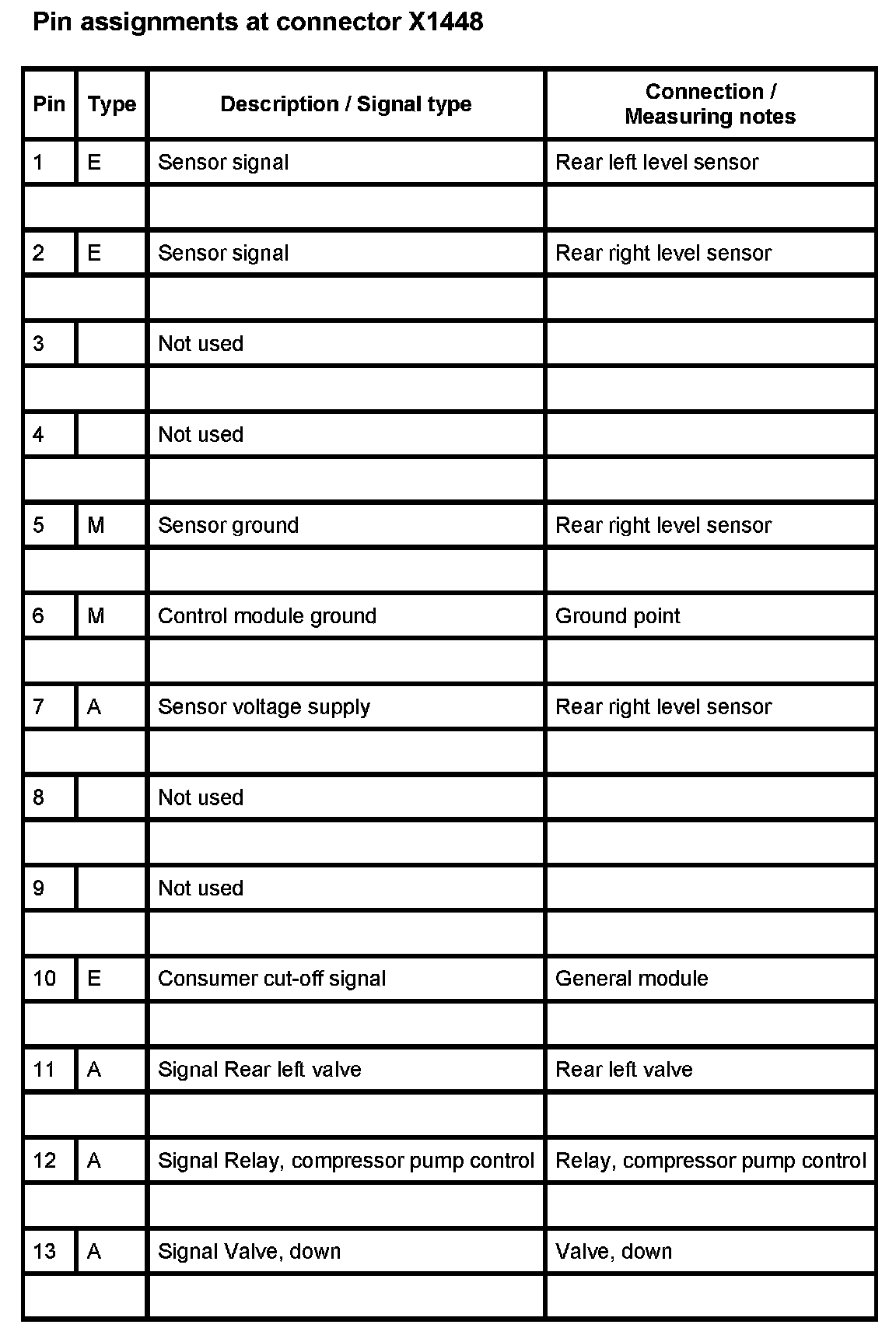

X1448 - Part 1:

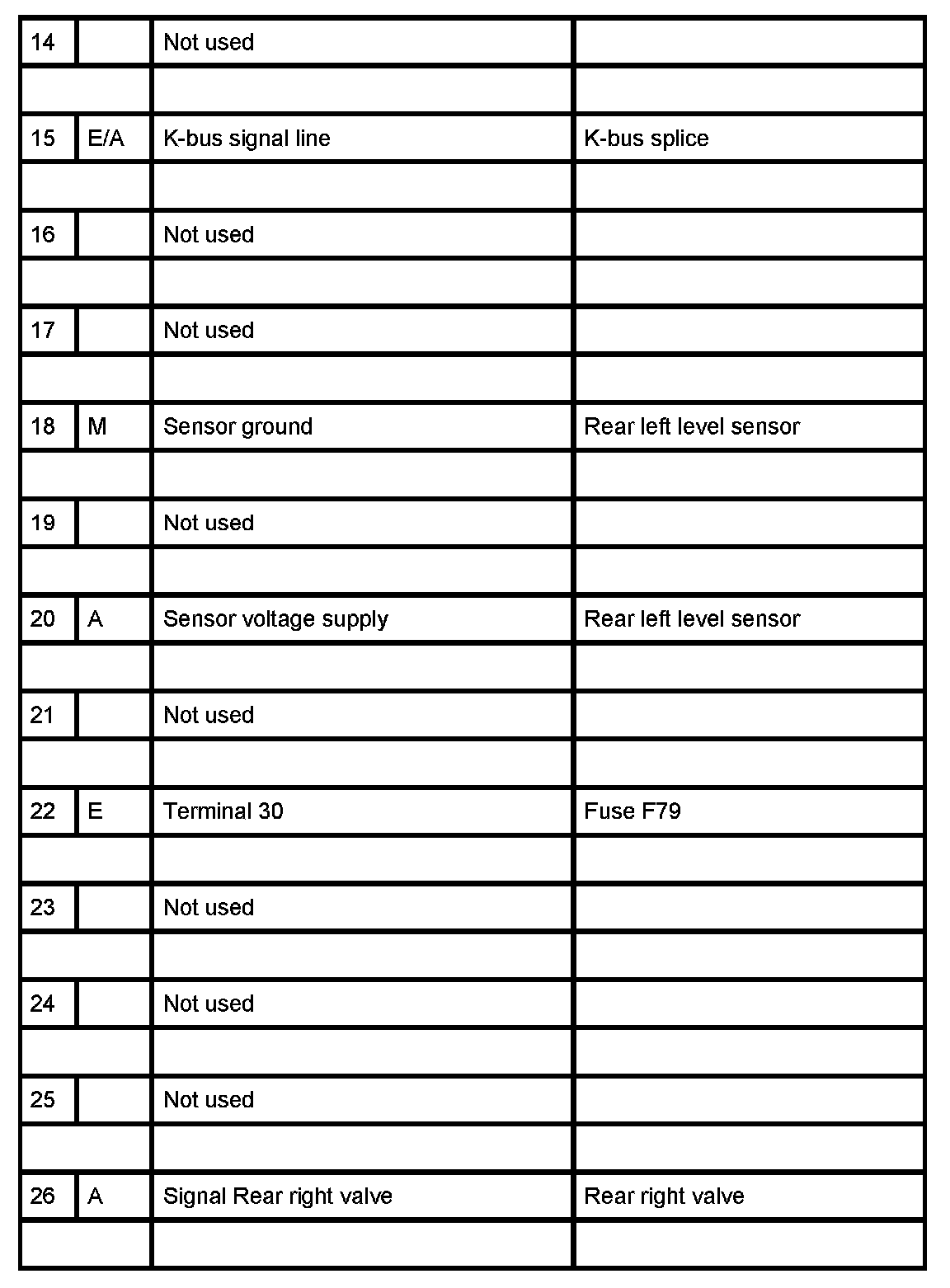

X1448 - Part 2:
