X10279 (A118 Air Suspension Control Unit (EHC2 Electronic Ride-Level Control))
X10279 (A118 Air Suspension Control Unit (EHC2 Electronic Ride-Level Control))

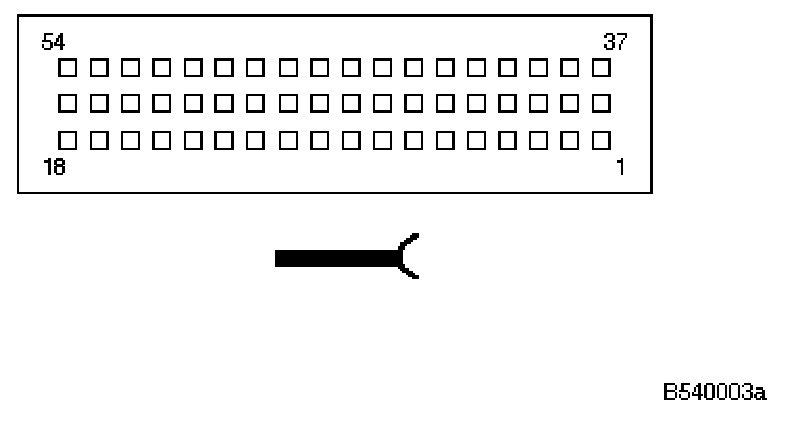

X10279 Component Connector (54-Pin, Black):

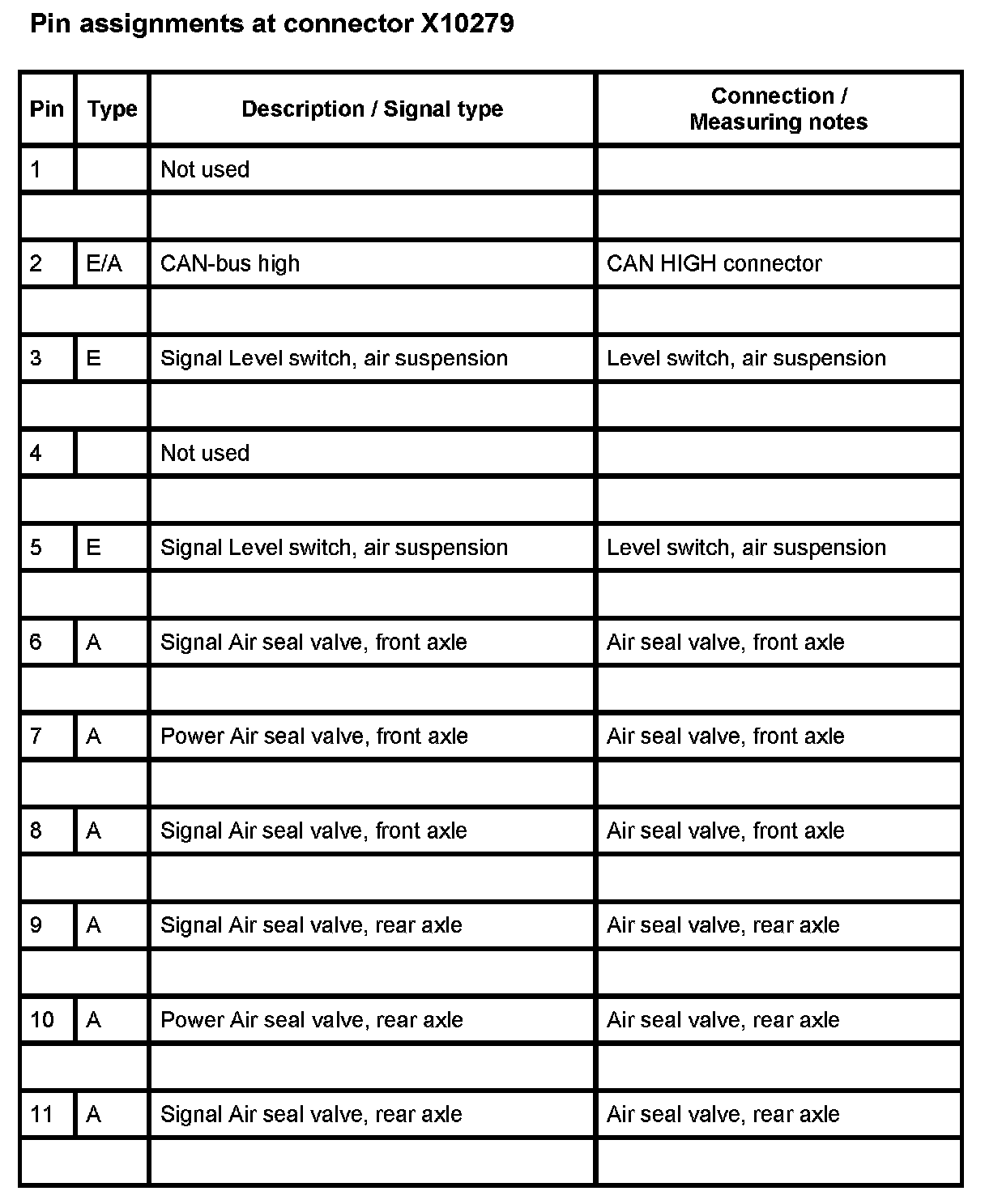

X10279 - Part 1:
X10279 - Part 2:

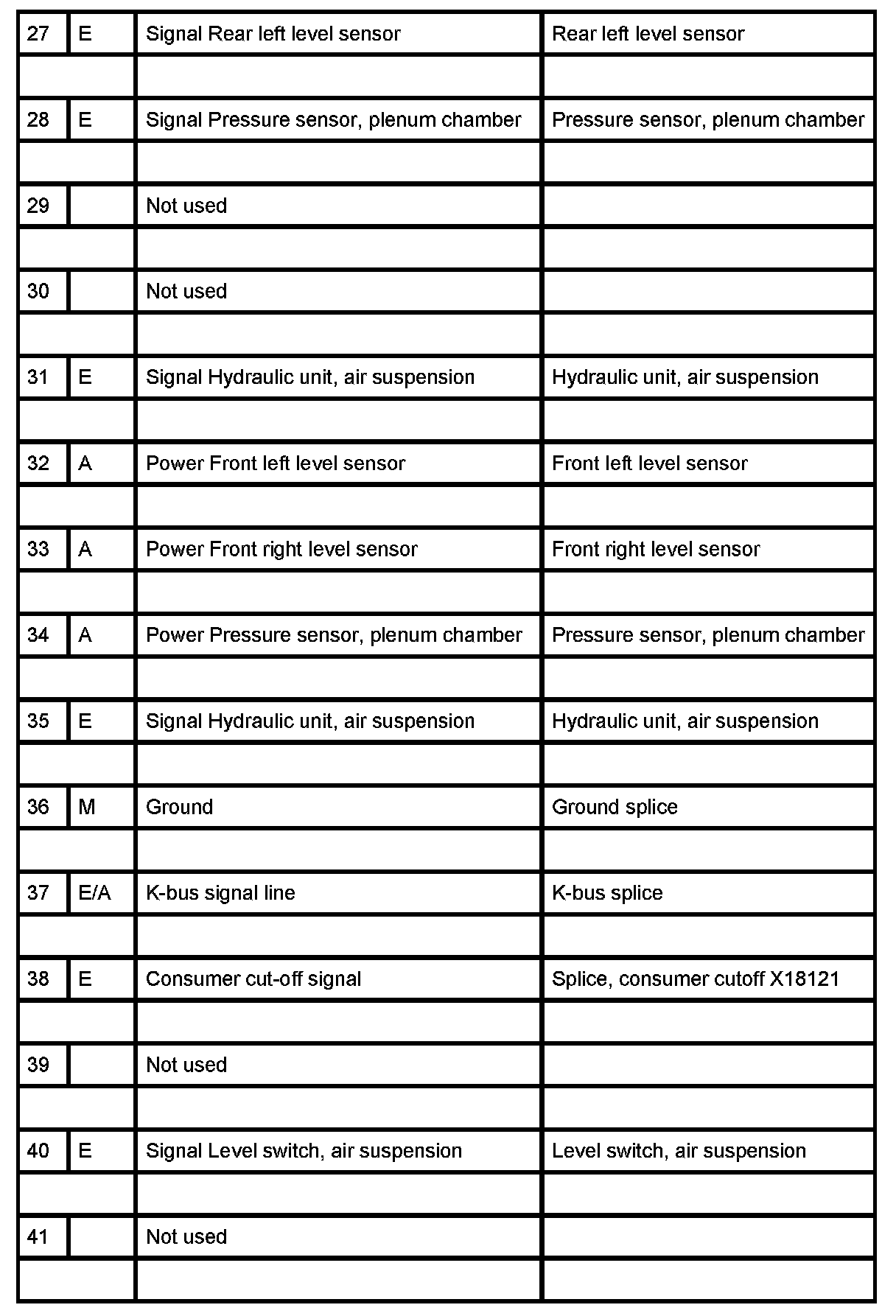

X10279 - Part 3:

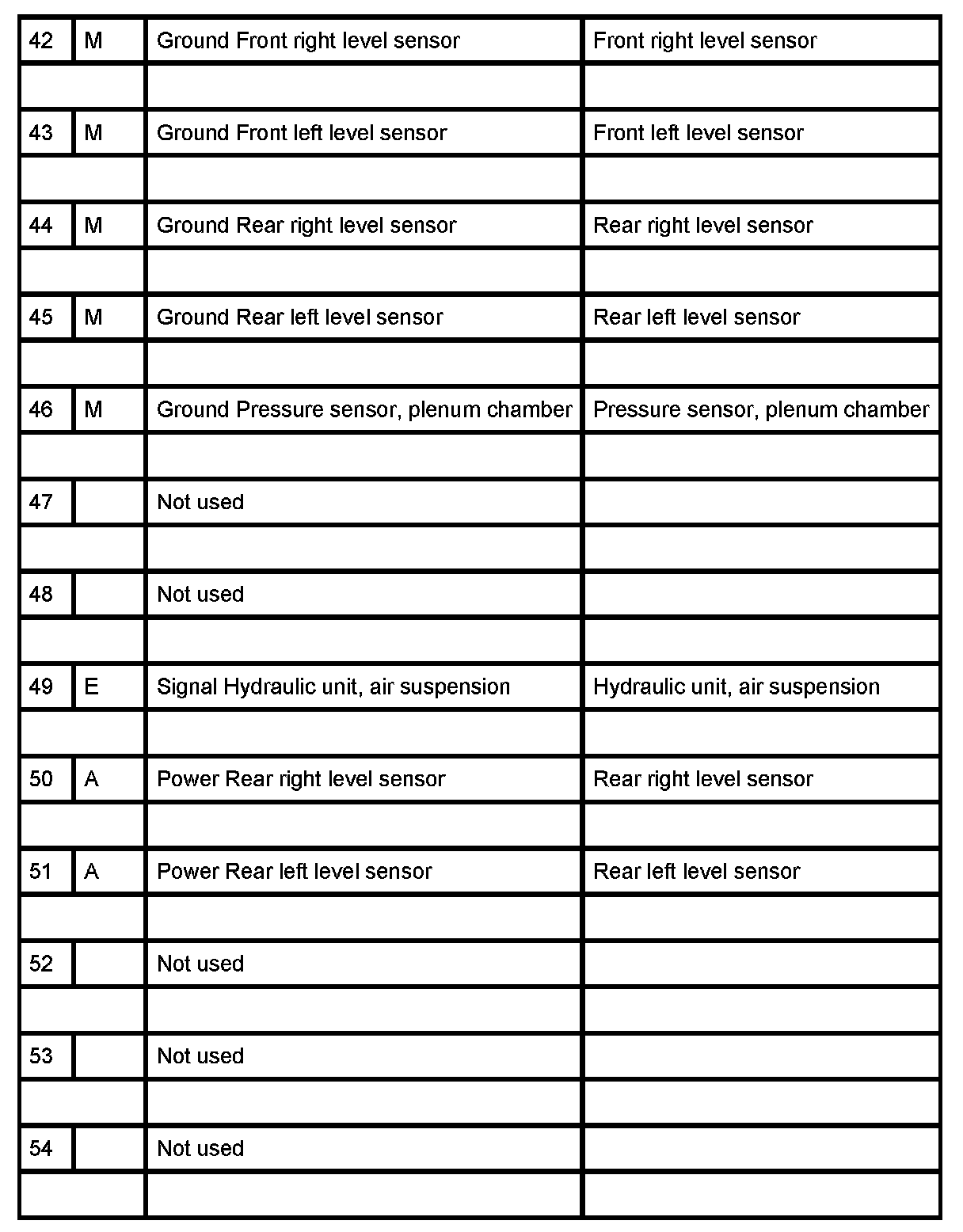

X10279 - Part 4:
