A63 Integrated Instrument Cluster Control Module (IKE) (As of 09/00 Up To 09/03)

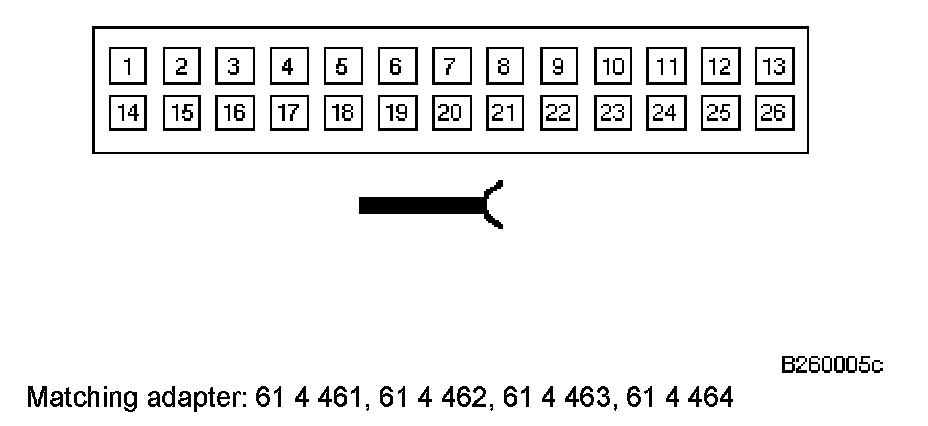

X10114 Component Connector (26-Pin, Blue):

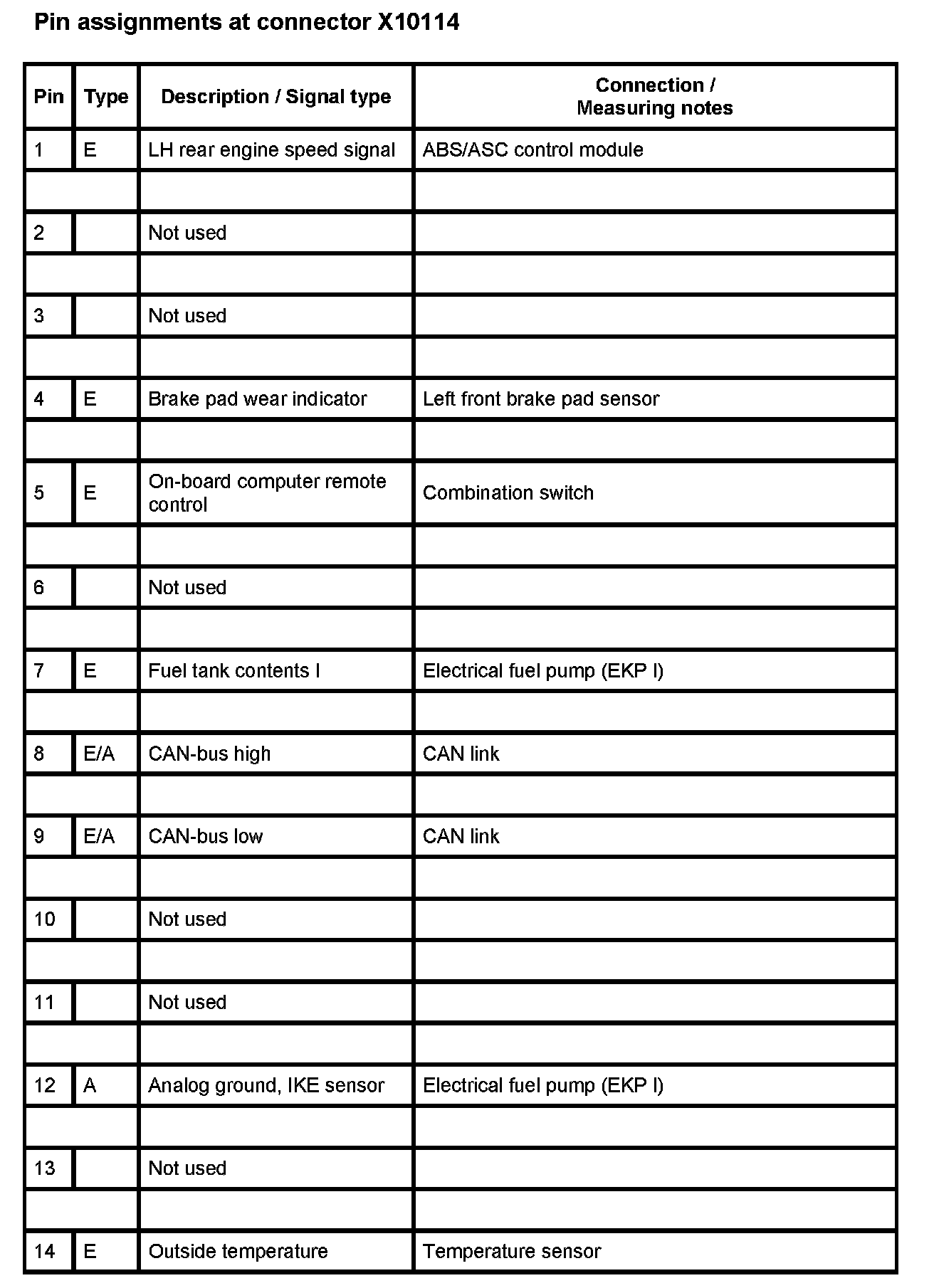

X10114 - Part 1:

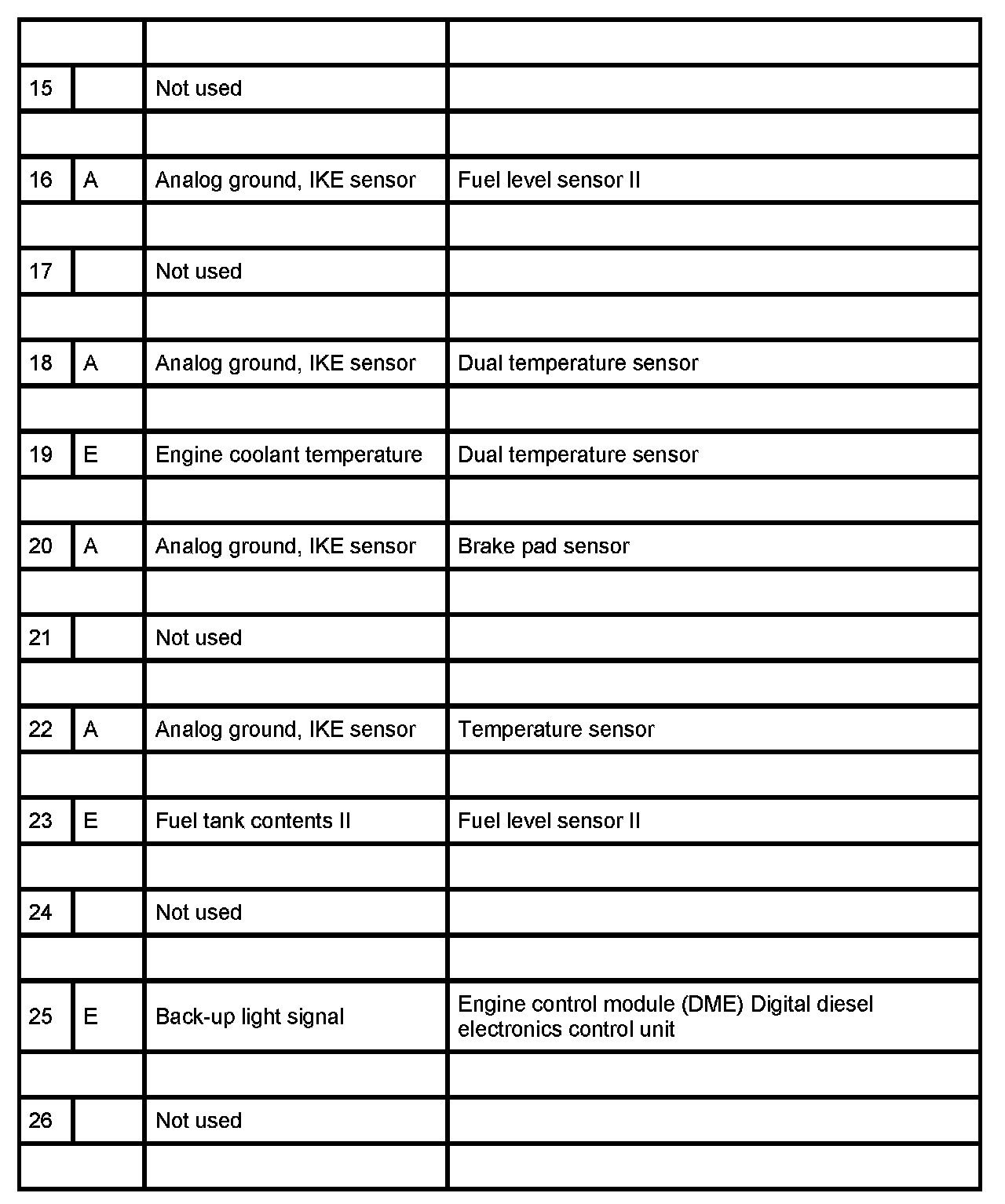

X10114 - Part 2:
