Replacing Front Left or Right Brake Hoses

Replacing Front Left or Right Brake Hoses

Caution: After installation: Bleed brake system.





Apply pedal support and press brake pedal slightly. This prevents brake fluid from escaping from the expansion tank after the brake lines have been opened.

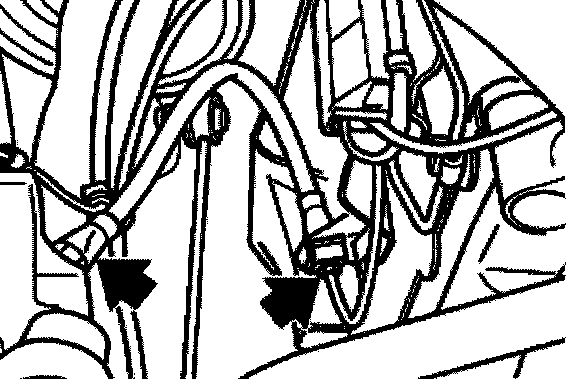

Disconnect brake hose from pipe.

Caution: Grip brake hose at twin edge so that connecting piece cannot rotate in retaining bracket.

Unfasten brake hose from brake caliper.
Installation: First tighten brake hose on brake caliper.
Move wheels into straight-ahead position.

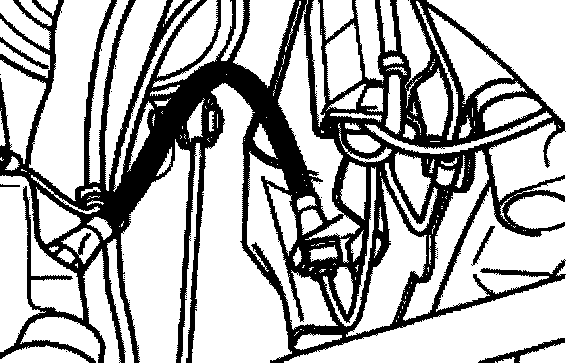

Insert brake hose in bracket and screw onto brake pipe.
- Brake hose couplings
- M10 x 1 18 ± 1 Nm
- M12 x 1 18 ± 1 Nm





Caution: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
