Removing and Installing or Replacing Both Rear Brake Disks

Removing and Installing or Replacing Both Rear Brake Disks

Caution:
If the thickness of the brake disks drops below the minimum level, the disks must be replaced.
Always replace brake disks in pairs.
If the brake disks are replaced, you must also fit new brake linings.

Remove wheels. If necessary, remove and clean brake linings. After completing work, adjust handbrake.

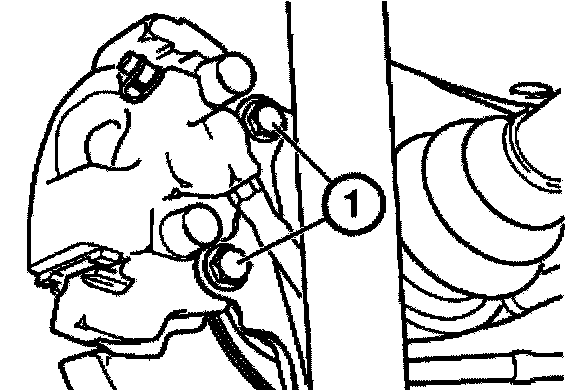

Unscrew bolts (1). Remove and suspend brake caliper from vehicle.

Note: Brake hose remains connected.

Installation:
- Brake carrier on semi-trailing arm/wheel carrier 65 Nm

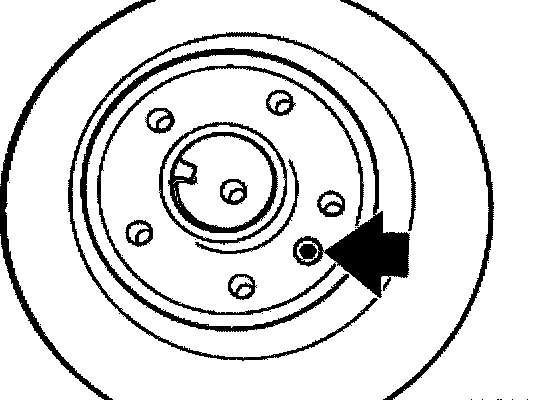

Unscrew bolts and take off brake disk.

Installation:
- Brake drum/disc to wheel hub 16 Nm
