Hood Weatherstrip: Service and Repair

51 71 080 Removing And Installing/Replacing Heater Bulkhead

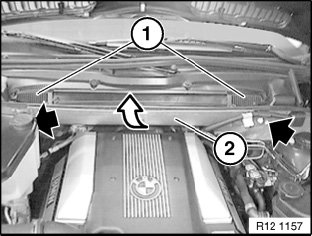

Detach sealing strips (1).







Turn toggles through approx. 90°







Lift out cover (1).

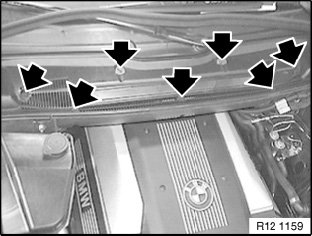

Unfasten screws.
Pull out heater bulkhead (2).







Installation:

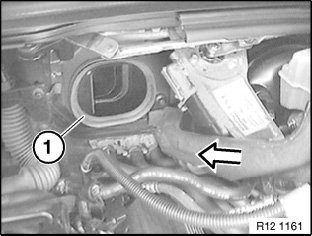

Check rubber seals (1) on left and right and replace if necessary.
Coat rubber seals (1) on left and right with rubber protection coating agent.
Heater bulkhead is guided at sides via guide channels.
Clean guide channels and coat with rubber protection coating agent.
