Replacing Front Rubber Guide for Door Window

Replacing Front Left Or Right Rubber Guide For Left Or Right Door Window

Remove window cavity cover strip on outside of front door.
Remove sound insulation on front door.
Remove cover (anti-trap protection) on inside of door window frame.
Open complete door window glass.

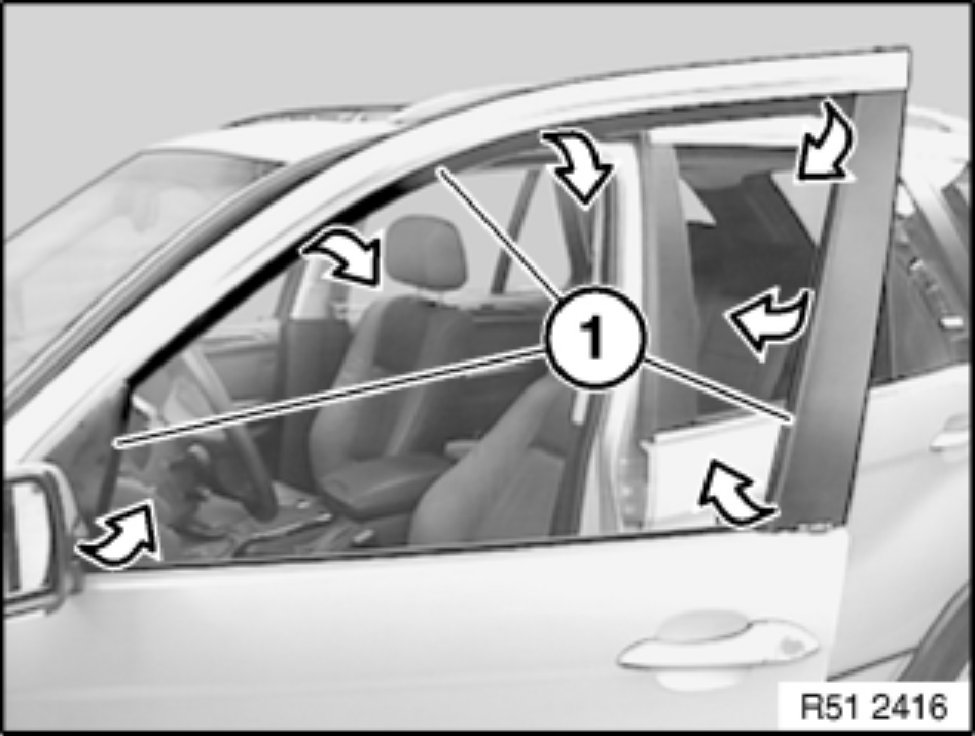

Pull rubber guide (1) completely out of front door.

Installation:
For installation, coat window cavity seal (1) with turpentine substitute (sourcing reference: BMW Parts Service).
Insert rubber guide at front/bottom into window guide rail.

Installation:

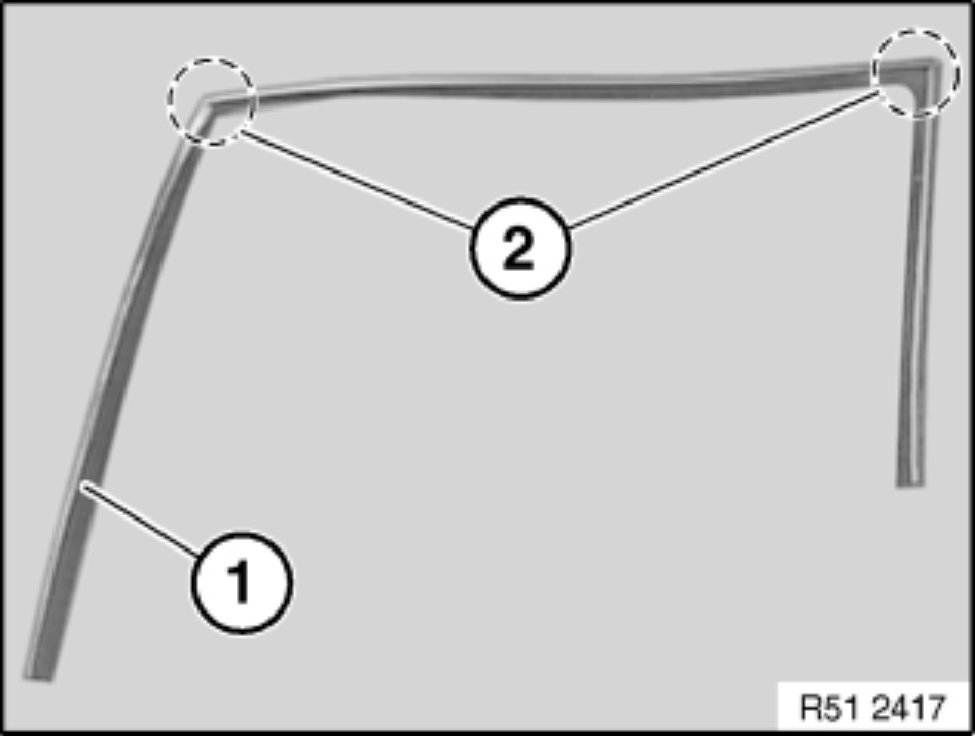

Rubber guide (1) must not be damaged in corners (2).
