Removing and Installing or Replacing Window Cavity Cover Strip on Outside of Left or Right Front Door

51 21 300 Removing And Installing Or Replacing Window Cavity Cover Strip On Outside Of Left Or Right Front Door

Special tools required:
- 00 9 324

IMPORTANT: Observe procedure for using special tool 00 9 324.







IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

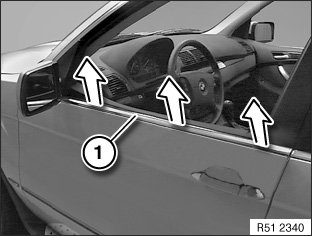

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Installation:

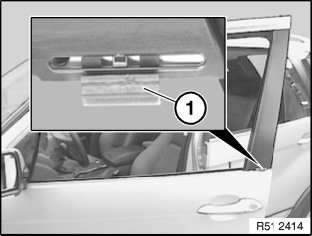

Window cavity cover strip (1) must be flush at rear to door edge.







Installation:
Clip (1) must not be damaged.







Installation:

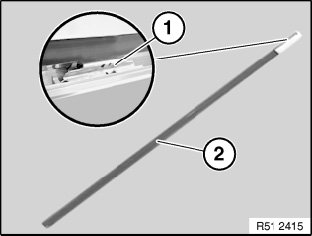

Retainer (1) of window cavity cover strip (2) must not be damaged.
