Cowl Moulding / Trim: Service and Repair

51 13 115 Removing And Installing/Replacing Cowl Panel Cover

Remove both windshield wiper arms.

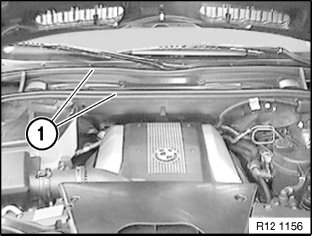

Detach seals (1).

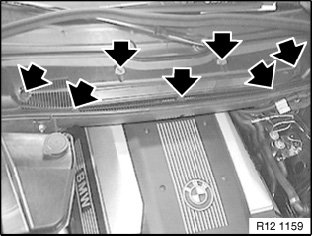

Turn tommy bar through 90° and lift off cover.

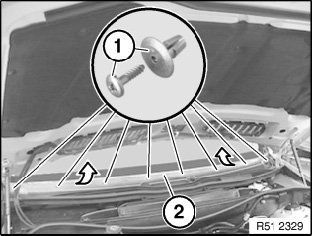

Release expansion rivets (1).
Remove cover (2) for cowl panel.







Installation:

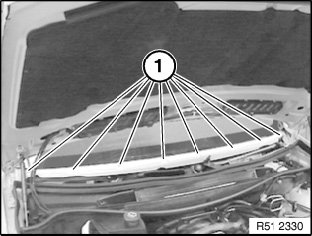

If necessary, replace defective grommets (1).







Only replacement:

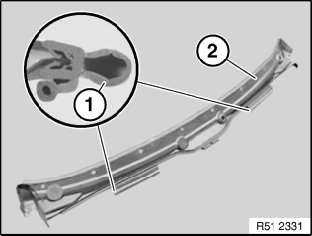

If necessary, detach seals (1) from cover (2).
