51 71 417 Replacing Rear Spoiler Lower Section

51 71 417 Replacing Rear Spoiler Lower Section

Necessary preliminary tasks:
- Remove rear spoiler lower section.
- Remove antenna (AM pickup).
- Remove additional brake light.

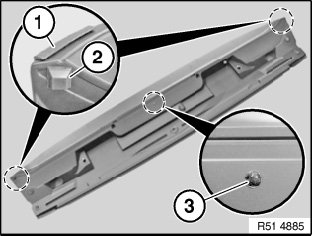

Attachment parts on underside of rear spoiler lower section:
Attach muckets (1) on left/right.
Stick on buffers (2) on left/right.
Stick on stop buffer (3) in middle.
1 Mucket 45 mm long
2 Buffer 5.8 mm high
3 Stop buffer 2.2 mm high

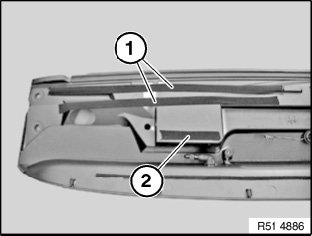

Attachment parts on upper side of rear spoiler lower section:
Stick on felt strips (1 and 2) on left/right.
1 430 mm long
2 100 mm long

Installation:
Adjust spray nozzle for rear window wiper.
