51 71 415 Removing And Installing Rear Spoiler Lower Section

51 71 415 Removing And Installing Rear Spoiler Lower Section

Necessary preliminary tasks:
- Remove rear spoiler
- Disconnect plug connection for antenna (AM pickup)

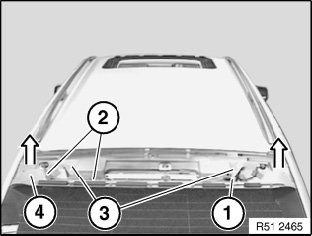

Disconnect plug connection (1) for auxiliary brake light and expose lead.
Detach water hose (2) from jet nozzle and expose.
Release nuts (3) and remove rear spoiler lower section (4).

Installation:
Fit attachment parts.
2AZ Rear spoiler 3 Nm
