51 71 412 Removing and Installing Rear Spoiler

51 71 412 Removing And Installing Rear Spoiler

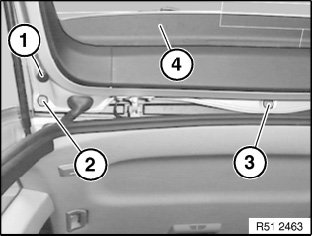

Lever out covers (1) on left/right and release screw underneath.
Release screws (2) on left/right and screw (3).
Remove rear spoiler and set down on a clean surface.

Installation:
If necessary, make a note of number of shims on screws (2) and (3) and refit them during installation at same position.
Tighten screw (3) first.

2AZ Rear spoiler 3 Nm

Vertical adjustment, refer to Gap dimensions, body.







Installation:

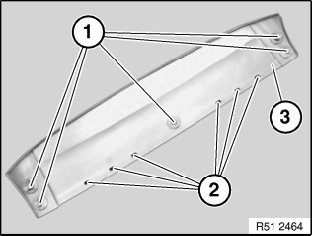

Threads (1) on rear spoiler (3) must not be damaged.
If necessary, replace faulty tapes (2) (dual-lock tape).
