Replacing/Cleaning Net For Wind Deflector

54 13 095 Replacing/Cleaning Net For Wind Deflector

Necessary preliminary tasks:
- Open slide/tilt sunroof

Cleaning:
The wind deflector net can be cleaned while installed as follows:
- Accelerate vehicle with glass slide/tilt sunroof open to over 5 km/h
- Stop vehicle and turn ignition key to position 2.

NOTE:
- This prevents the wind deflector from retracting, and thereby leaving it fully open.
- Net is now accessible and easy to clean.







Replacement:

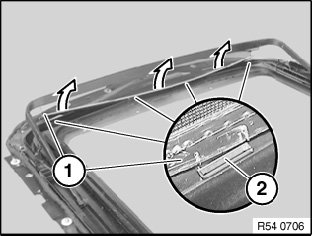

Pull plastic strip (1) out of retainers (2) on panorama glass sunroof and wind deflector.

Installation:
If necessary, reinstall retainers.
Clip new net into place.
