Replacing Wind Deflector - II

54 13 090 Removing And Installing/Replacing Wind Deflector

Necessary preliminary tasks:
- Open slide/tilt sunroof







NOTE: Shown removed here for purposes of clarity.

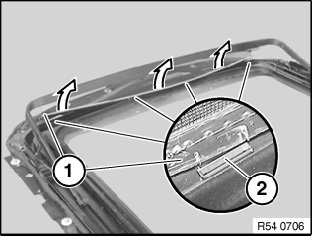

Pull plastic strip (1) on net of wind deflector out of retainers (2).

IMPORTANT: Do not pull on the net so as to avoid tearing the net.

Installation:
If necessary, reinstall retainers in frame.







Important: Tape off paintwork in working area. Avoid bending wind deflector (1).

NOTE:
- Pictures show removal on the left side, proceed in the same way for the right side.

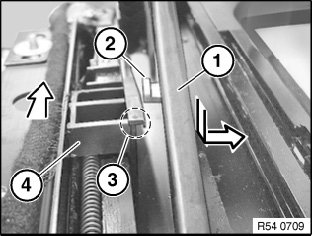

- Slide control carriage (4) for wind deflector with plastic wedge towards front.
- Carefully lift wind deflector (1) in direction of arrow with guide (2) out of rail (3).







Installation:
Make sure clamping elements are correctly seated.

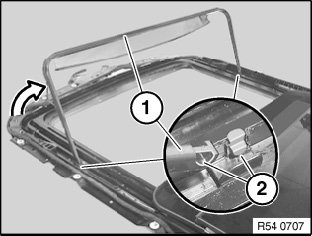

Tilt wind deflector (1) into vertical position and remove.

Installation:
Make sure wind deflector (1) is correctly seated in pivot point (2).
