Replacing Wind Deflector - I

54 12 496 Removing And Installing Or Replacing Wind Deflector

Open slide/tilt sunroof.

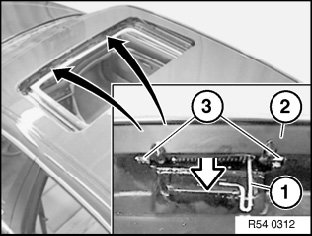

Lift out left/right spring (1) and pull wind deflector (2) backwards slightly to remove from mount (3).

Installation:
Install spring (1) correctly.

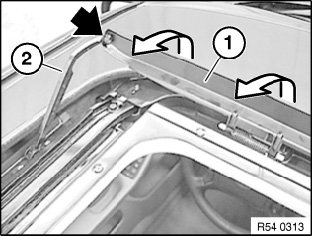

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

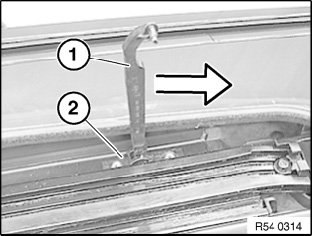

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Installation:
Check function.
