Replacing Seal For Slide/Tilt Sunroof Frame

54 13 055 Replacing Seal For Slide/Tilt Sunroof Frame

Necessary preliminary tasks:
- Remove glass slide/tilt sunroof lid at rear
- Lower (open) glass slide/tilt sunroof lid at front

NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof.

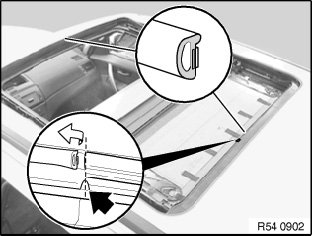

Pull off seal of sunroof cut-out at contact edge starting from body. (Peel off)

Installation:
Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).
Press seal without stretching (squashing).
Stick on seal in sections.
Establish seal joint.

Important:
- Do not touch bonding surface. Surface temperature ≥ 20 °C
- Incorrect bonding of the seal will result in leakage.
