Replacing Drive With Gear For Slide/Tilt Sunroof ( Front)

Replacing Drive With Gear For Actuating Slide/Tilt Sunroof (panoramic Glass Sunroof, Front)

Necessary preliminary tasks:
- E53: Remove bracket from roofliner at front
- E83: Remove front roofliner trim

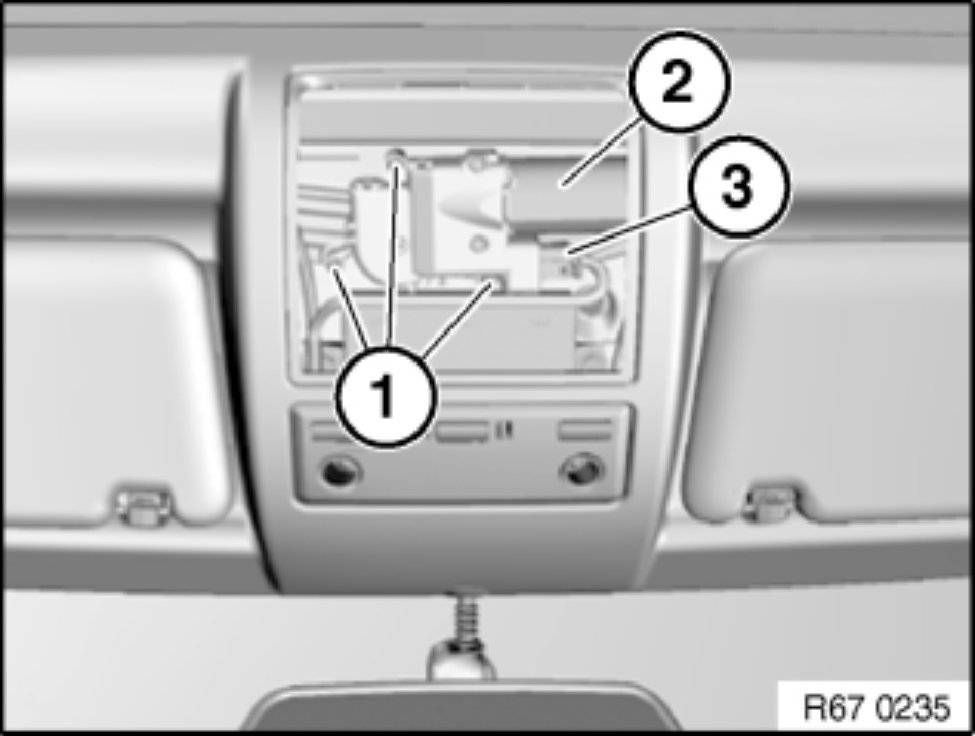

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.
Release screws (1), tightening torque.
1AZ Drive to cassette
E53 2.8 Nm


Lower drive with gear for actuating slide/tilt sunroof (2).

NOTE: Screws (1) are microencapsulated.

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Installation:

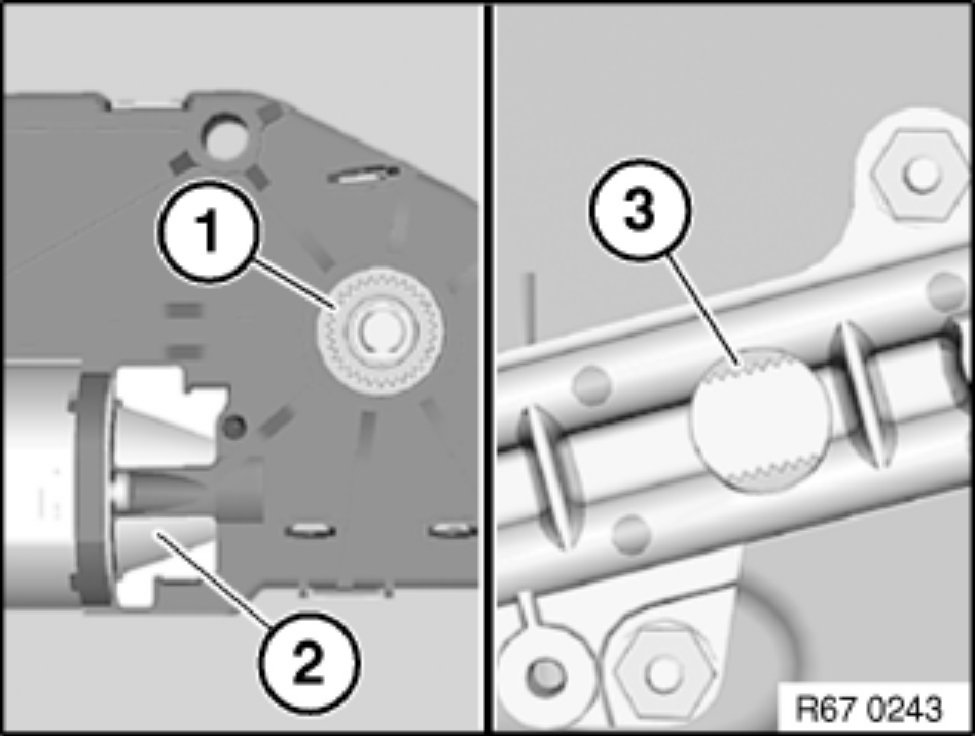

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Installation:
- Initialise slide/tilt sunroof.
