With Slide - Tilt

Replacing Drive With Gear For Actuating Slide/Tilt Sunroof

Necessary preliminary tasks:
- Remove bracket from roofliner at front







NOTE: Secure drive (3) against falling out.

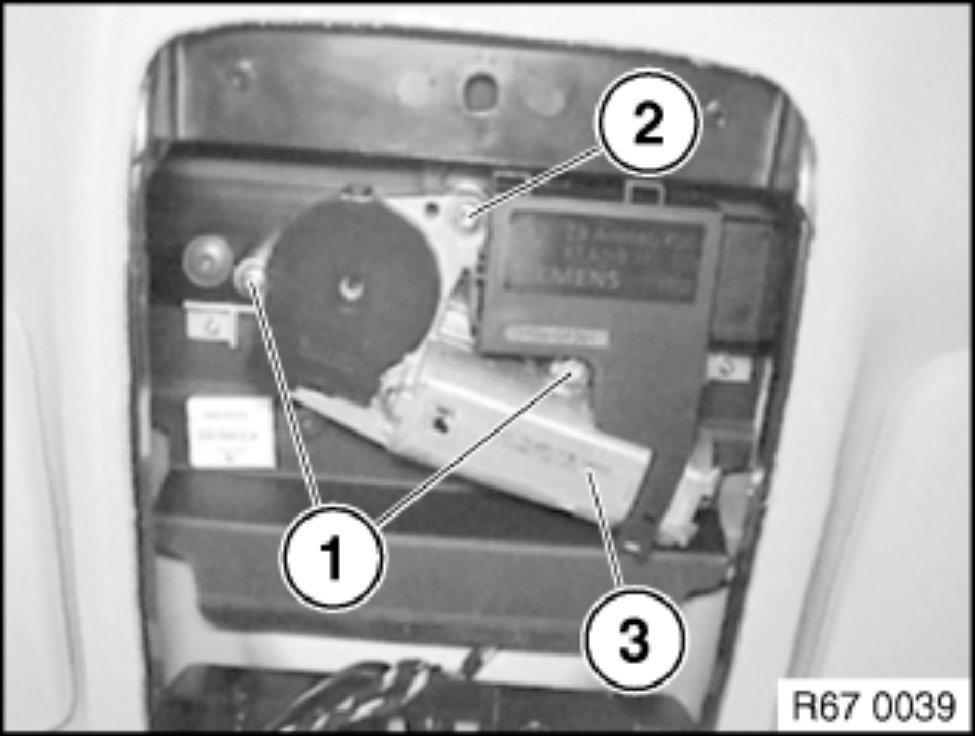

Release screws (1) and (2), tightening torque.
1AZ Drive to cassette
E53 2.8 Nm


Lower drive with gear for actuating slide/tilt sunroof (3).

NOTE: Screws (1) and (2) are microencapsulated.

Unlock associated plug connection, disconnect and remove drive with gear for actuating slide/tilt sunroof (3).

Installation:

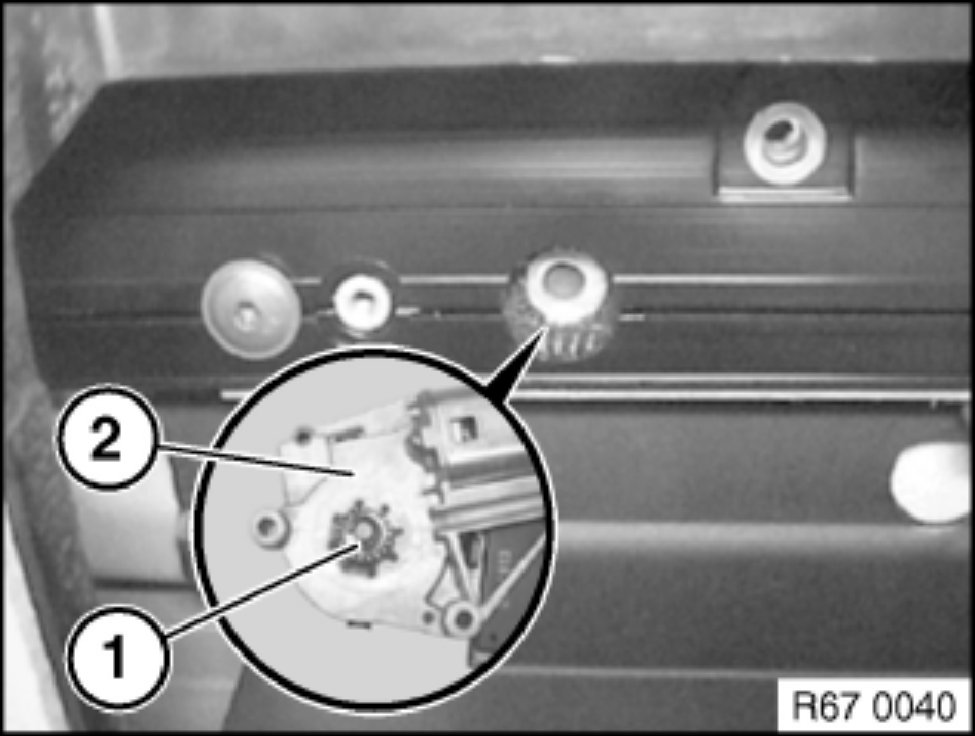

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

Installation:
- Initialize sunroof.
