Replacing Roofliner (On Version With Panorama Sunroof)

Removing And Installing Roofliner (on Version With Panorama Sunroof)

Operation is identical up to work steps for panorama sunroof to:
Removing and installing/replacing roofliner (with slide/tilt sunroof)

IMPORTANT:







The following tasks must be carried out with a second person assisting:

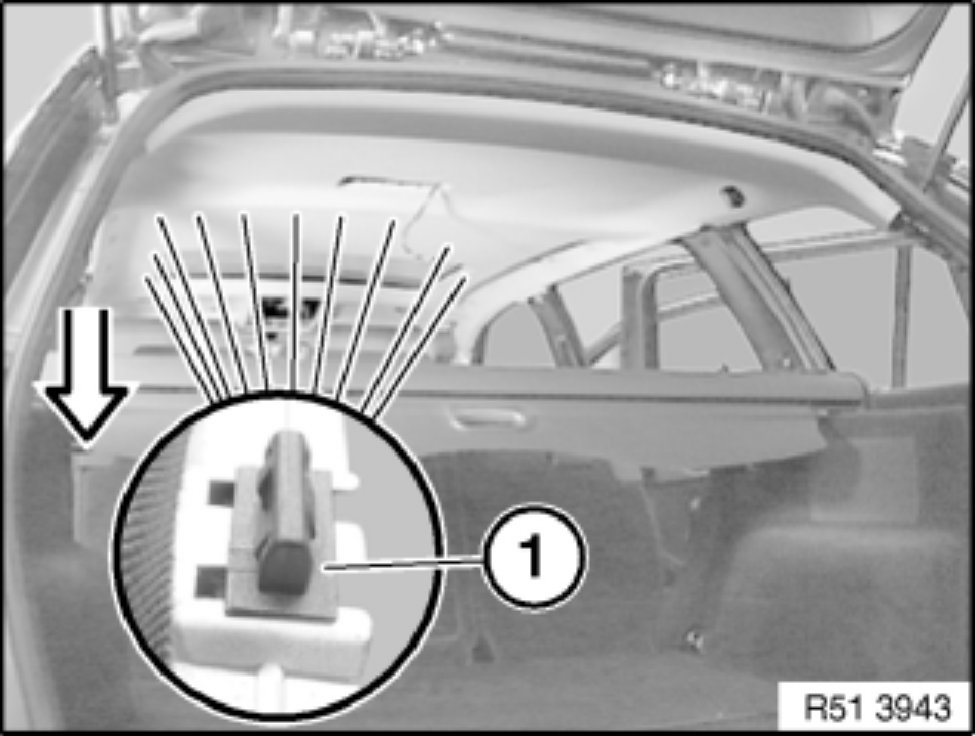

Unclip clips (1) in sunroof frame area towards bottom.

Extend rear roofliner towards bottom out of guide.
Turn headliner and remove towards rear.

Installation:

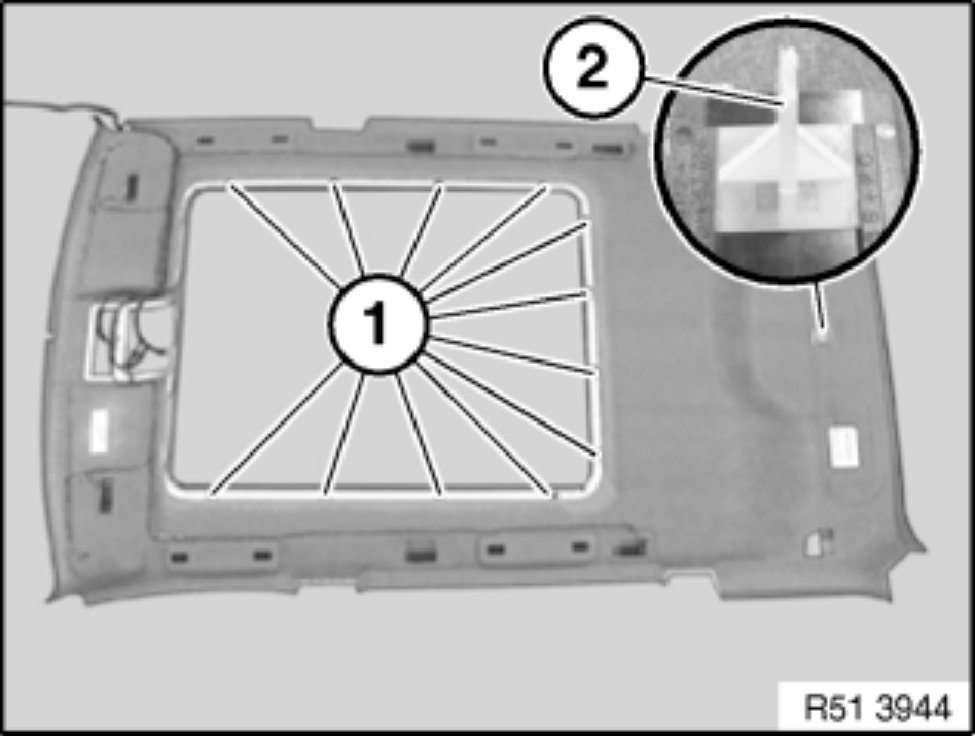

Clips (1) and guide (2) must not be damaged.
If necessary, replace clips (1) and guide (2).
