Power Mirror Motor: Service and Repair

Replacing Drive For Left Or Right Electrically Adjustable Door Mirror (With Mirror Memory)

Remove mirror glass.
Remove housing from door mirror.

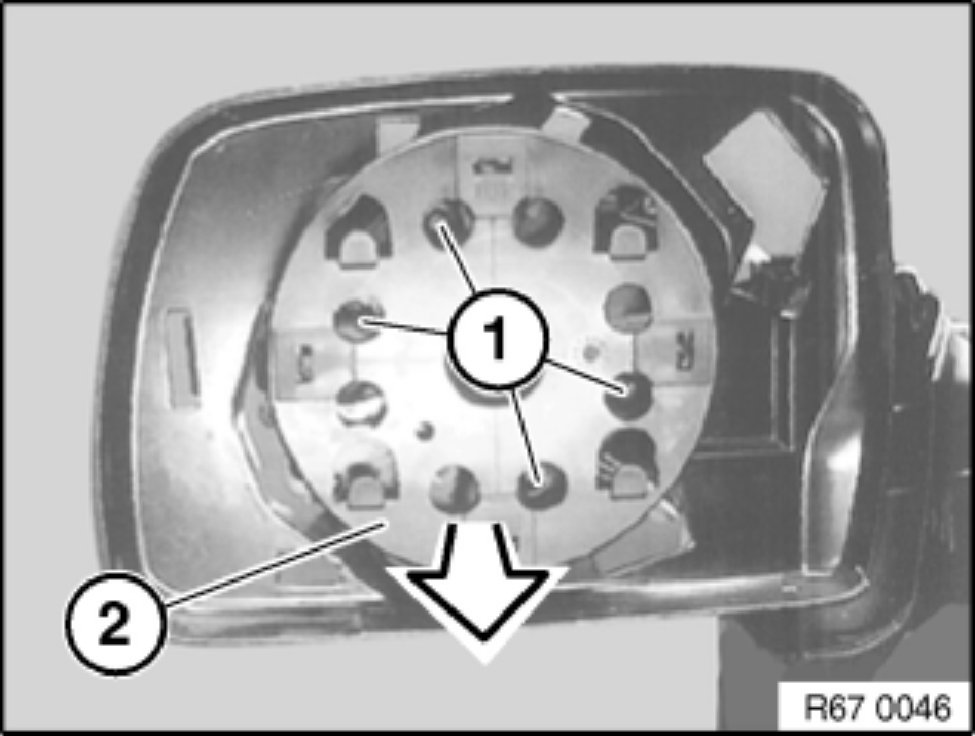

NOTE: Secure drive for electrically adjustable door mirror (2) against falling out.

Loosen screws (1).
Remove drive for electrically adjustable door mirror (2) in direction of arrow.
Detach wiring harness directly from drive for electrically adjustable door mirror (2).
