Removing and Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left or Right

51 37 261 Removing And Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left Or Right

Removing roller cover from luggage compartment.
Refer to Owner's handbook. Fold rear-seat backrest forwards.
Remove panel for roof pillar at rear (C-pillar).
Remove panel for roof pillar at rear (D-pillar).

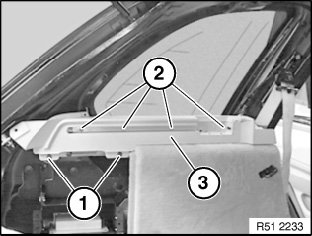

Remove screws (1 and 2).
Remove window cavity cover strip (3).







Installation:

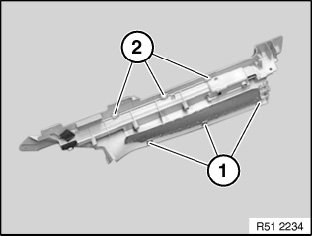

Slide guides (1) into mounts of window frame.
Press guides (2) onto mount for window cavity cover strip.
