Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Right

51 43 075 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-pillar, Right

Remove bottom right trim panel from instrument panel.

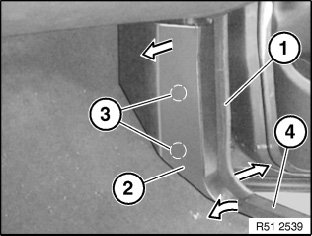

Detach mucket (1) in area of side trim panel (2).
Unclip clips (3) towards interior.
Withdraw side trim panel (2) from entrance cover strip (4) and remove towards interior.







Installation:

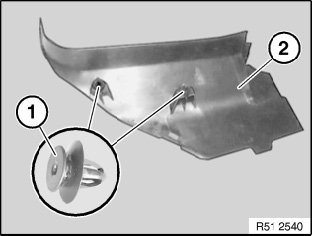

If necessary, replace faulty clips (1) in side trim panel (2).







Installation:

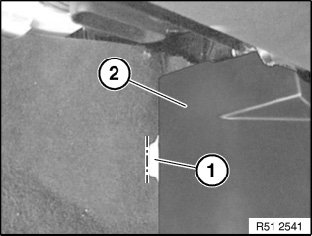

Insert guide (1) of side trim panel (2) into slot in carpet.
