Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Left

51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-pillar, Left

Remove trim panel for pedal assembly.
Remove entrance cover strip at front (inside).

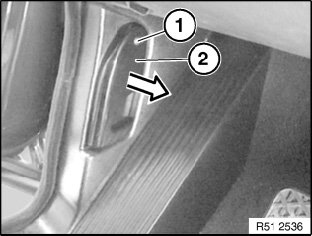

Release screw (1) and remove release lever (2).

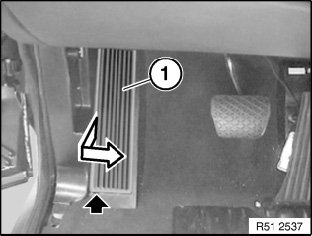

Unclip running board (1) on outside from below towards top and remove towards interior.

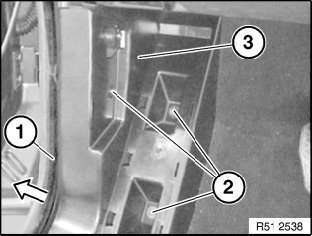

Detach mucket (1) in area of footwell trim (3).
Release screws (2).
Remove footwell trim (3) towards front/interior.
