Removing and Installing or Replacing Trim on Left or Right Door Pillar (Top)

51 43 148 Removing And Installing Or Replacing Trim On Left Or Right Door Pillar (Top)







Move front seat upwards.

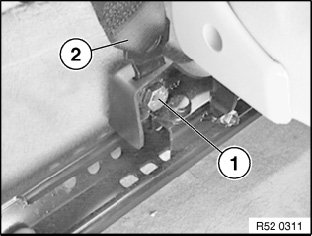

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

Installation:
Tightening torque:
Seat belt to seat (end fitting): 45 Nm

Subsequent work is described in:
Removing panel for door pillar (bottom).
