51 44 011 Removing And Installing/Replacing Headliner (With Slide/Tilt Sunroof)

51 44 011 Removing And Installing/Replacing Headliner (With Slide/Tilt Sunroof)

Remove both sun visors and counter support.
Remove all grab handles.
Remove both panels for front roof pillar (A-pillar finishers).
Remove both panels for door pillar (top) (B-pillar finishers).
Remove both panels for rear roof pillar (C-pillar finishers).
Remove both panels for rear roof pillar (D-pillar finishers).
Remove bracket on headliner at front.
Remove front and rear head restraints.
Remove sunroof lid.
Remove front and rear ceiling light.
Remove ultrasonic module.

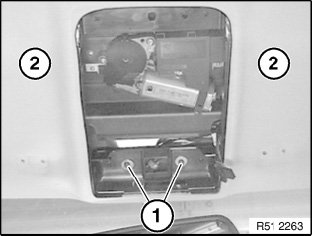

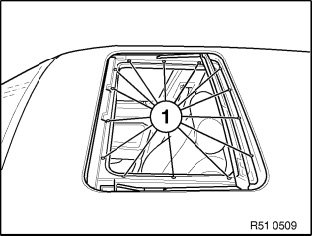

Release screws (1).







If necessary, remove all dividing net mounts:
Detach trims of covers for dividing net mount over lock (1) completely.
Release screw (2) and remove dividing net mounts.

Installation:
Observe position specifications on reverse side of covers (RR, FR, RL, FL).
- Move both front seat backrests as far back as possible.
- Removing roller cover from luggage compartment.
Refer to Owner's handbook.
- Fold both rear-seat backrests forward.
- Pull off mucket of front and rear doors.







CAUTION:
- The following tasks must be carried out with a second person assisting:
- Support headliner at front.

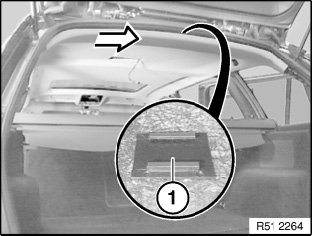

Release screws (1) under bracket on headliner (2).

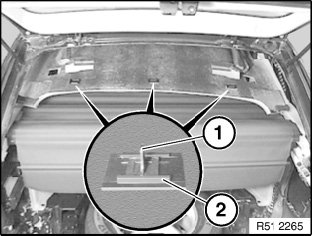

Press headliner at rear to one side and in so doing slide three guides (1) out of sliding clips in body.
Turn headliner and remove towards rear.







Installation:

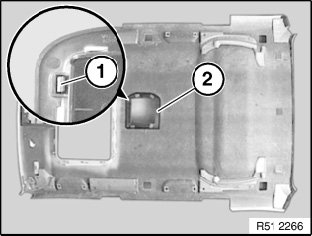

Pull sliding clips (1) out of retainers in body roof lining and slide into guides (2) of headliner.
If necessary, replace metal retainers in body roof lining.







Replacement only:

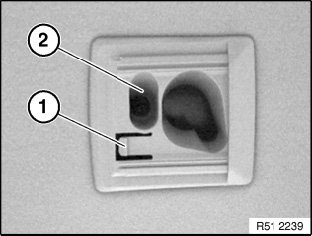

Open locks (1) on frame (2) for ultrasonic module all round.
Remove frame halves.
