51 16 231 Removing And Installing/Replacing Function Carrier On Centre Armrest



51 16 231 Removing And Installing/Replacing Function Carrier On Centre Armrest

Necessary preliminary tasks:
- Remove fresh air grille in rear compartment

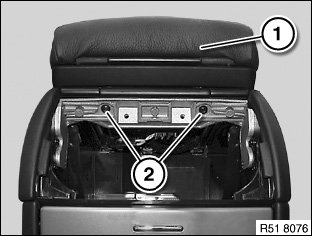

Open centre armrest (1).
Release screws (2) and feed out function carrier with centre armrest (1) in upwards direction.

Replacement:
Remove armrest from centre armrest.
