51 14 000 - Removing and installing/replacing front BMW badge

51 14 000 Removing And Installing/Replacing Front BMW Badge

Special tools required:
- 00 9 318

IMPORTANT: Risk of damage.

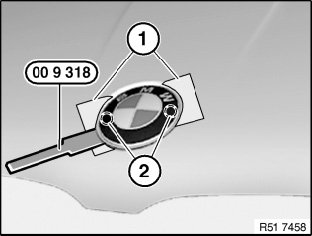

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 318 at guide pins (2).







Installation:

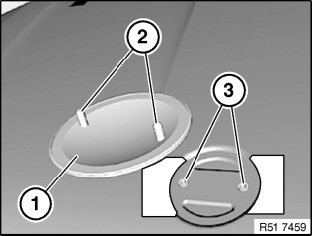

Following parts must not be damaged or missing:
1 Badge
2 Guide pins
3 Grommets
