Replacing A Shock Absorber For Rear Bumper (HP)

51 12 742 Replacing A Shock Absorber For Rear Bumper (HP)

NOTE: Refer to KSD CD for details of preliminary tasks.

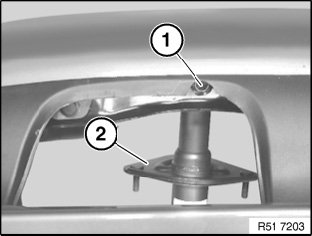

Release screw (1) and remove shock absorber (2).

Installation:
2AZ Bumper / carrier to impact absorber
M12 55 Nm
