Rear Bumper Bracket: Service and Repair

51 12 801 Replacing Bracket For Rear Bumper At Left Or Right

(bumper removed)
If necessary, remove rear bumper completely.

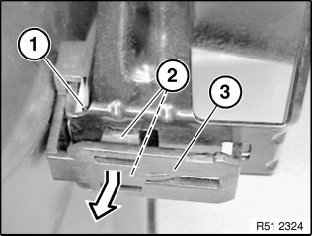

Release screw (1) on wheel arch.
Press together catches (2) and remove holder (3) outwards/forwards.







Installation:

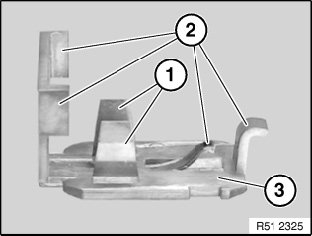

Catches (1) and guides (2) must not be damaged.

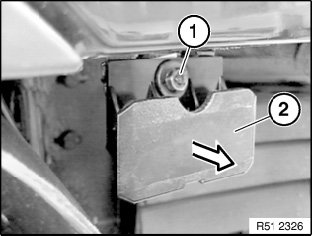

Release screw (1) and remove holder (2).







Installation:

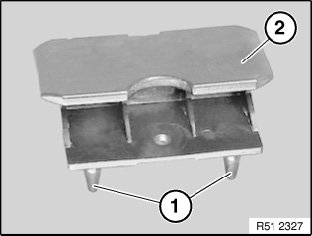

Guides (1) on holder (2) must not be damaged.
