51 11 157 - Replacing front bumper trim

51 11 157 Replacing Front Bumper Trim

Necessary preliminary tasks:
- Unscrew and remove license plate
- Remove front bumper trim
- Remove holder for number/license plate
- Remove both fog lamp inserts (complete)
- If necessary, remove grill for bumper trim

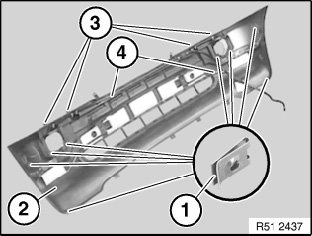

Remove metal nuts (1) from bumper trim (2).
Version with headlight cleaning system:
If necessary, remove jet nozzles (3).
If necessary, feed hose (4) out of holders on bumper trim (2) and remove.
Version with Park Distance Control:
If necessary, remove ultrasonic sensors.
